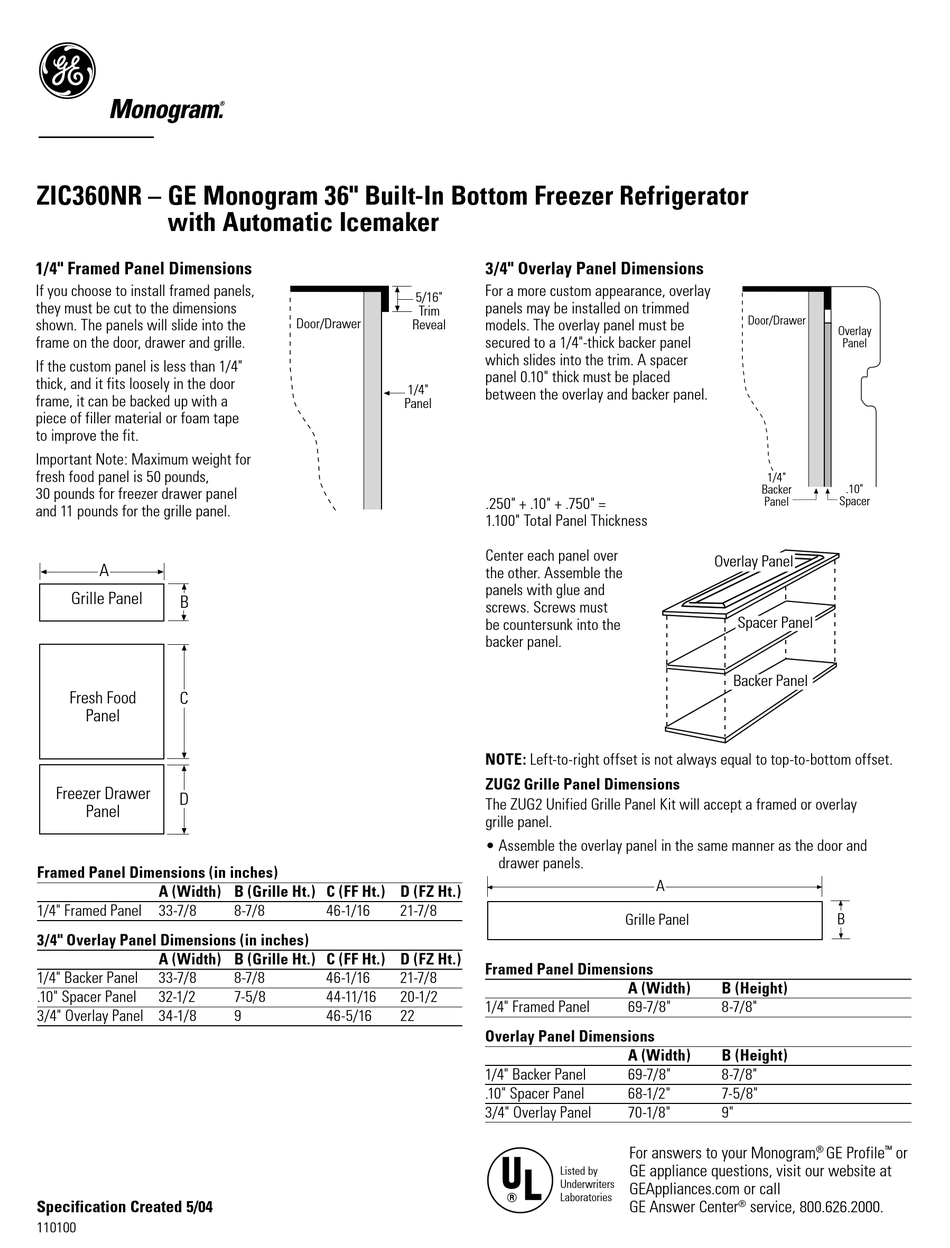

GE MONOGRAM ZIC360NR Dimensions And Installation Information page 3

ZIC360NR – GE Monogram 36" Built-In Bottom Freezer Refrigerator
with Automatic Icemaker
1/4" Framed Panel Dimensions
If you choose to install framed panels,
they must be cut to the dimensions
shown. The panels will slide into the
frame on the door, drawer and grille.
If the custom panel is less than 1/4"
thick, and it fits loosely in the door
frame, it can be backed up with a
piece of filler material or foam tape
to improve the fit.
Important Note: Maximum weight for
fresh food panel is 50 pounds,
30 pounds for freezer drawer panel
and 11 pounds for the grille panel.
A
Grille Panel
B
Fresh Food
C
Panel
Freezer Drawer
D
Panel
Framed Panel Dimensions (in inches)
A (Width) B (Grille Ht.) C (FF Ht.) D (FZ Ht.)
1/4" Framed Panel 33-7/8
729Dia89
3/4" Overlay Panel Dimensions (in inches)
A (Width) B (Grille Ht.) C (FF Ht.) D (FZ Ht.)
1/4" Backer Panel 33-7/8
.10" Spacer Panel 32-1/2
3/4" Overlay Panel 34-1/8
Specification Created 5/04
110100
Door/Drawer
Reveal
1/4"
Panel
729Dia84
8-7/8 46-1/16 21-7/8
8-7/8 46-1/16 21-7/8
7-5/8 44-11/16 20-1/2
9 46-5/16 22
3/4" Overlay Panel Dimensions
For a more custom appearance, overlay
5/16"
panels may be installed on trimmed
Trim
models. The overlay panel must be
secured to a 1/4"-thick backer panel
which slides into the trim. A spacer
panel 0.10" thick must be placed
between the overlay and backer panel.
.250" + .10" + .750" =
1.100" Total Panel Thickness
Center each panel over
the other. Assemble the
panels with glue and
screws. Screws must
be countersunk into the
backer panel.
NOTE: Left-to-right offset is not always equal to top-to-bottom offset.
ZUG2 Grille Panel Dimensions
The ZUG2 Unified Grille Panel Kit will accept a framed or overlay
grille panel.
• Assemble the overlay panel in the same manner as the door and
drawer panels.
Framed Panel Dimensions
1/4" Framed Panel
Overlay Panel Dimensions
729Dia85
1/4" Backer Panel
.10" Spacer Panel
3/4" Overlay Panel
Listed by
Underwriters
Laboratories
R
Door/Drawer
1/4"
Backer
Panel
Overlay Panel
729Dia42
Spacer Panel
Backer Panel
605Dia15
A
Grille Panel
A (Width) B (Height)
69-7/8" 8-7/8"
A (Width) B (Height)
69-7/8" 8-7/8"
68-1/2" 7-5/8"
70-1/8" 9"
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center service, 800.626.2000.
®
Overlay
Panel
.10"
Spacer
B
GE Profile or
® ™
