GE MONOGRAM ZIC360NR Dimensions And Installation Information page 4

Advance Planning for Built-In Custom Bottom-Freezer Refrigerators

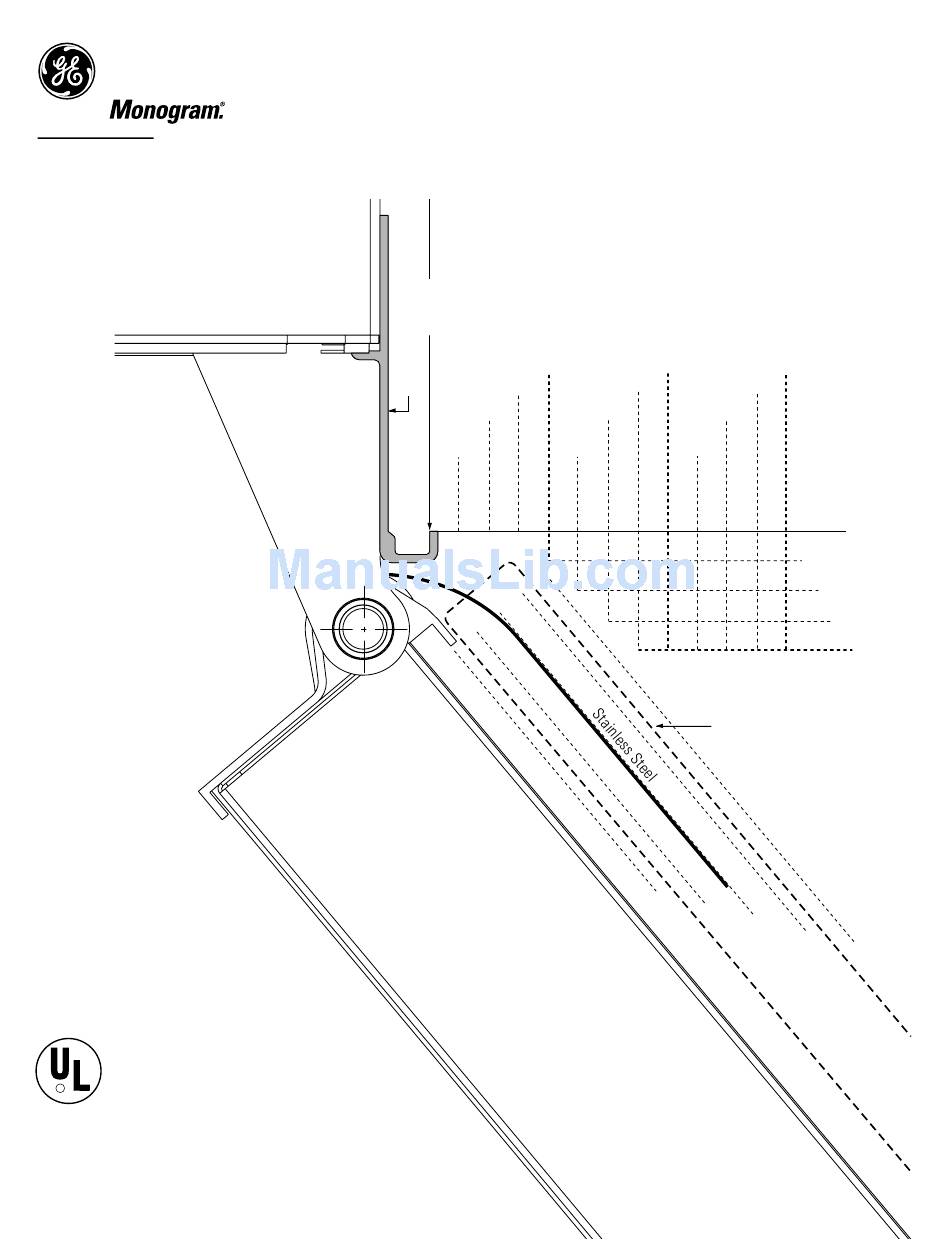

Use this page to determine door
swing interaction with adjacent
cabinets or countertops.
Refrigerator
Top View
130° Door Swing
(Optional setting)
Scale 1:1
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center service, 800.626.2000.
®
Specification Created 5/04
110100
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator
with Automatic Icemaker
23-7/8" From
Refrigerator
Case
Trim
GE Profile or
® ™
Frameless Cabinets: The case trim overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require filler strips to prevent interference
with cabinet door swing. The opening must allow for filler strips.
Rear of
1"
3/4"
1/2"
1/4" 1-1/4"
Door
2"
1-3/4" 2-3/4"
1-1/2" 2-1/2"
2-1/4"
3/4" Overlay
Panel
(Nominal Size)
1/4"
1/2"
3/4"
3"
1/4"
1/2"
3/4"
1"
1"
1-1/4"
