ZIS360NX
GE Monogram
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
Advance Planning for Built-In Custom Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.

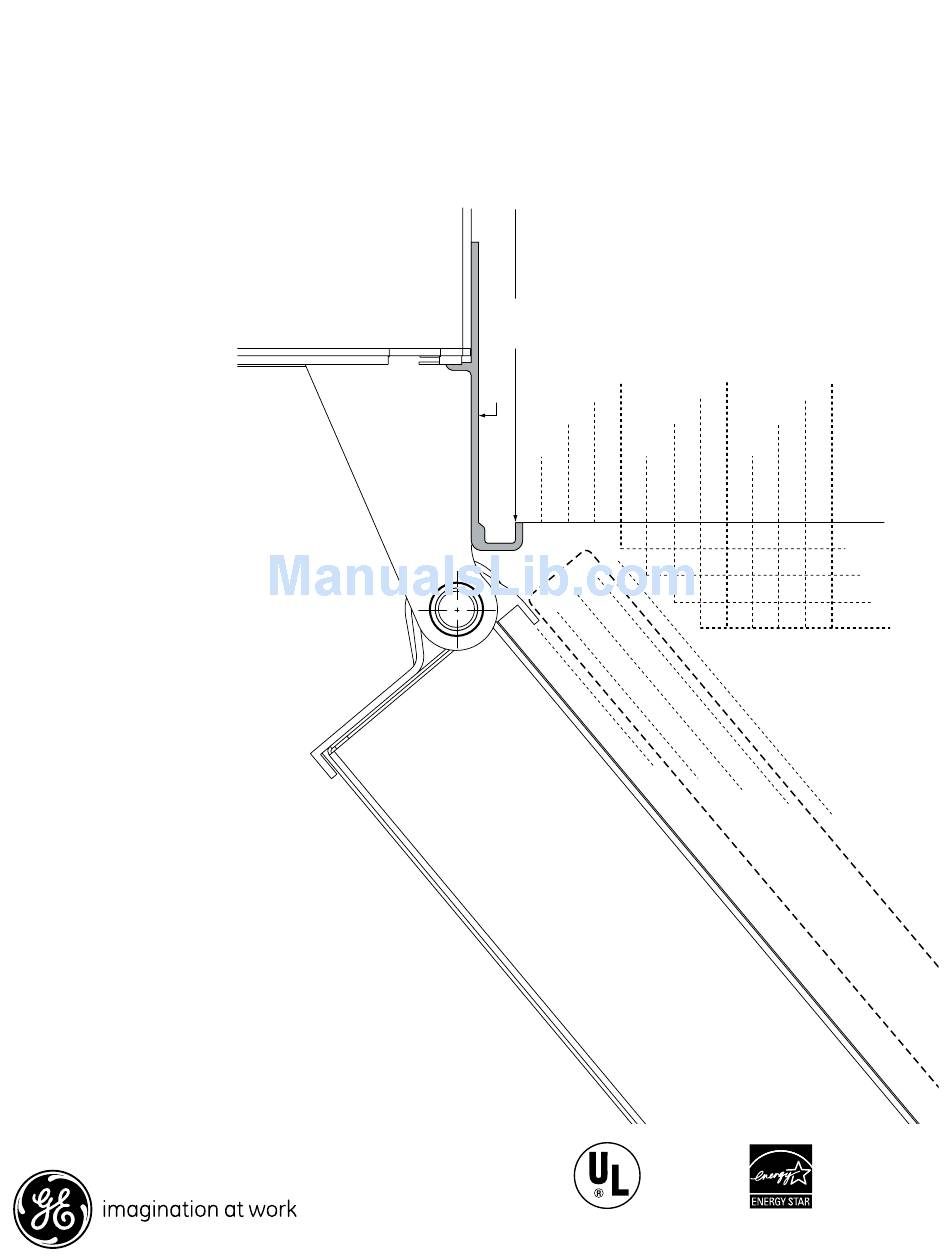

Top View
130° Door Swing
(Factory setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with
two dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim
fitto the custom panel depends on correct
panel thickness. Framed panels must be
1/4" nominal. Overlay panels should be
constructed as shown to accomplish a total
1.100" thickness.
For answers to your Monogram,
®
or GE
appliance questions, visit our website
at ge.com or call GE Answer Center
800.626.2000.
®
36" Built-In Side-by-Side Refrigerator with Automatic
Refrigerator
®
™
GE Profile
®
service,
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door
swing. The opening must allow for filler strips.
23-7/8" From
Rear of
Refrigerator
1"
Case
3/4"
Trim
1/2"
1/4"
1-1/4"
1/4"
Door
Listed by
Underwriters
Laboratories
Specification Created 3/08
2"
3"
1-3/4"
2-3/4"
1-1/2"
2-1/2"
2-1/4"
1/2"
3/4"
1"
1-1/4"
3/4" Overlay
Panel
(Nominal Size)
As an EnErgy StAr
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
1/4"
1/2"
3/4"
1"
®
110111
