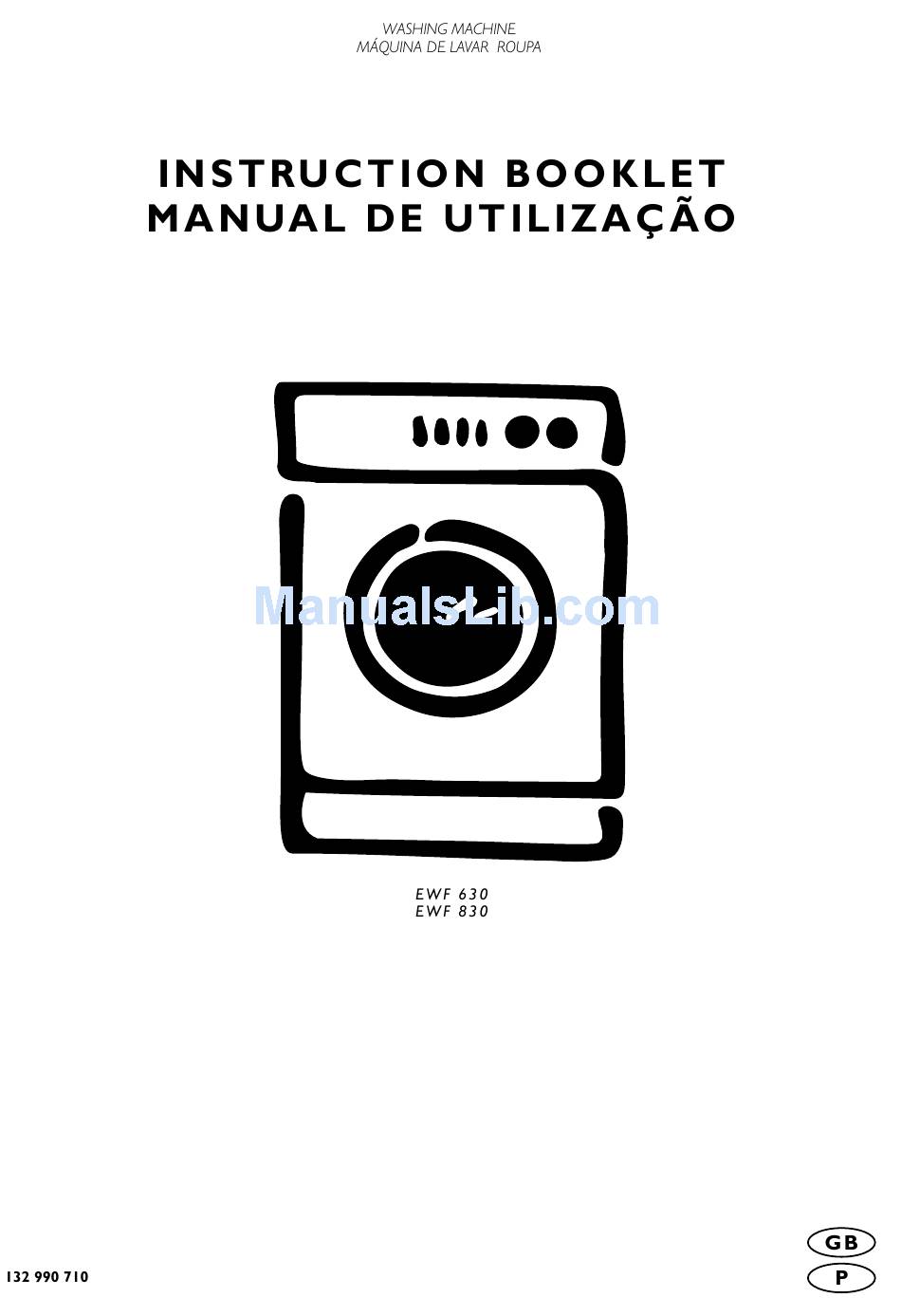

- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings Maintenance 20-21 Bodywork Disposal Door seal Detergent dispenser drawer Tips for environmental protection 5 Drain pump Water inlet filter Technical specifications Emergency emptying out Frost precautions Installation Unpacking Something not working? 22-23 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance Detergent dispenser drawer... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • Leave the porthole door slightly ajar when the Installation appliance is not in use. This preserves the door •... -
Page 5: Disposal
To disable this device and restore the possibility of Child safety closing the door, rotate the button anti-clockwise • Children are often not aware of how dangerous until the groove is vertical. electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. -
Page 6: Technical Specifications
Cotton Synthetics 2,5 kg Delicates 2.5 kg Woollens and handwash SPIN SPEED 850 rpm max. (EWF 830) 650 rpm max. (EWF 630) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE... -
Page 7: Installation
Installation Unpacking 7. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. -
Page 8: Water Drainage
The drain hose must not be kinked. The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will For a correct functioning of the machine the have to purchase a new, longer hose specially drain hose must remain hooked on the proper designed for this type of use. -
Page 9: Your New Washing Machine
Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The DELAY START option allows you to delay starting of the wash programme by 8 or 4 hours, so allowing you for instance to make use of overnight economy electricity tariffs. -
Page 10: Use
Control panel 1 Detergent dispenser drawer 3 “PREWASH” button The machine performs a prewash cycle at 30°C max. The prewash cycle ends with a short spin at 650 r.p.m. 2 “DELAY START” button in programmes for Cotton and Synthetics, and with emptying of the water for Delicates. -
Page 11: Programme Progress Display
Position 60E corresponds to the ENERGY SAVING Position 850 corresponds to 700 r.p.m. for delicates. programme and position to “cold wash”. Position 500 corresponds to 450 r.p.m. for delicates. Model EWF 630 The speeds on the dial refer to programmes for all type of fabrics. -
Page 12: Washing Hints
On position you can wash garments marked with Maximum loads the”handwash” symbol Recommended loads are indicated in the At the end of the programme the selector dial programme charts. must be turned to position O. General rules: Cotton, linen: drum full but not too tightly packed; Attention! Synthetics: drum no more than half full;... -
Page 13: Detergents And Additives
structure will already have been damaged and the programme. fabric tends to hole. Any fabric softener or starching additives must be Mould stains: treat with bleach, rinse well (whites poured into the compartment marked before and fast coloureds only). starting the wash programme. Grass: soap lightly and treat with bleach (whites and Follow the product manufacturer’s recommendations fast coloureds only). -
Page 14: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 15: Operating Sequence
: the corresponding light comes on. If you wish to carry out a programme with prewash, EWF 830 EWF 630 pour detergent into the appropriate compartment marked 3. Measure out the additives If required, pour fabric softener into the compartment marked , without exceeding the «MAX»... -
Page 16: Select The Delay Start
7. Select the DELAY START 11.Cancelling a programme Before you start the programme, if you wish the Turn the selector dial to O to cancel a programme starting to be delayed, press the DELAY START which is running. Now you can select a new button repeatedly, to select the desired delay. -
Page 17: Washing Programmes
Programme table PROGRAMMES FOR COTTON Consumptions* Programme/ Additional Wash load Fabrics Type of laundry Energy Water Duration Temperature functions max. min. White For heavily soiled cotton 90° 5 kg cotton items White and fast 60°E** Sheets, household coloureds linen, underwear, Economy 5 kg 0.95... - Page 18 Programme table PROGRAMMES FOR SYNTHETICS , DELICATES , HAND WASH AND WOOL Consumptions* Additional Wash load Programme/ Fabrics Type of laundry Water Duration Energy functions max. Temperature min. Synthetic fabrics, 60°-40°- Synthetics underwear, coloured 2.5 kg 0.70 30° garments, no-shrink shirts, blouses Delicate fabrics, Delicates...
- Page 19 Programme table SPECIAL PROGRAMMES Consumptions* Programme Programme Additional Wash load selector dial Programme description functions max. Water Duration Energy position min. 3 rinses with liquid For rinsing hand additive, if required 5 kg 0.05 washed items Short spin at max. Rinses speed For emptying out...
-
Page 20: Maintenance
Maintenance Detergent can also accumulate inside the drawer 1. Bodywork recess: clean it with an old toothbrush. Refit the Clean the outside of the machine with soap and drawer after cleaning. water only. Rinse with clean water and dry with a soft cloth. -
Page 21: Water Inlet Filter
• Remove any objects from the pump impeller by 6. Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 22: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The door is not firmly closed. • The machine does not start up: • The machine is not plugged in or there is no power at the socket. •... -
Page 23: The Door Will Not Open
Problem Possible cause • The programme is still running. • The door will not open: • The door lock has not been released. • There is water in the drum. • The electronic unbalance detection device has cut • Spinning starts late or the in because the laundry is not evenly distributed in machine does not spin: the drum.
