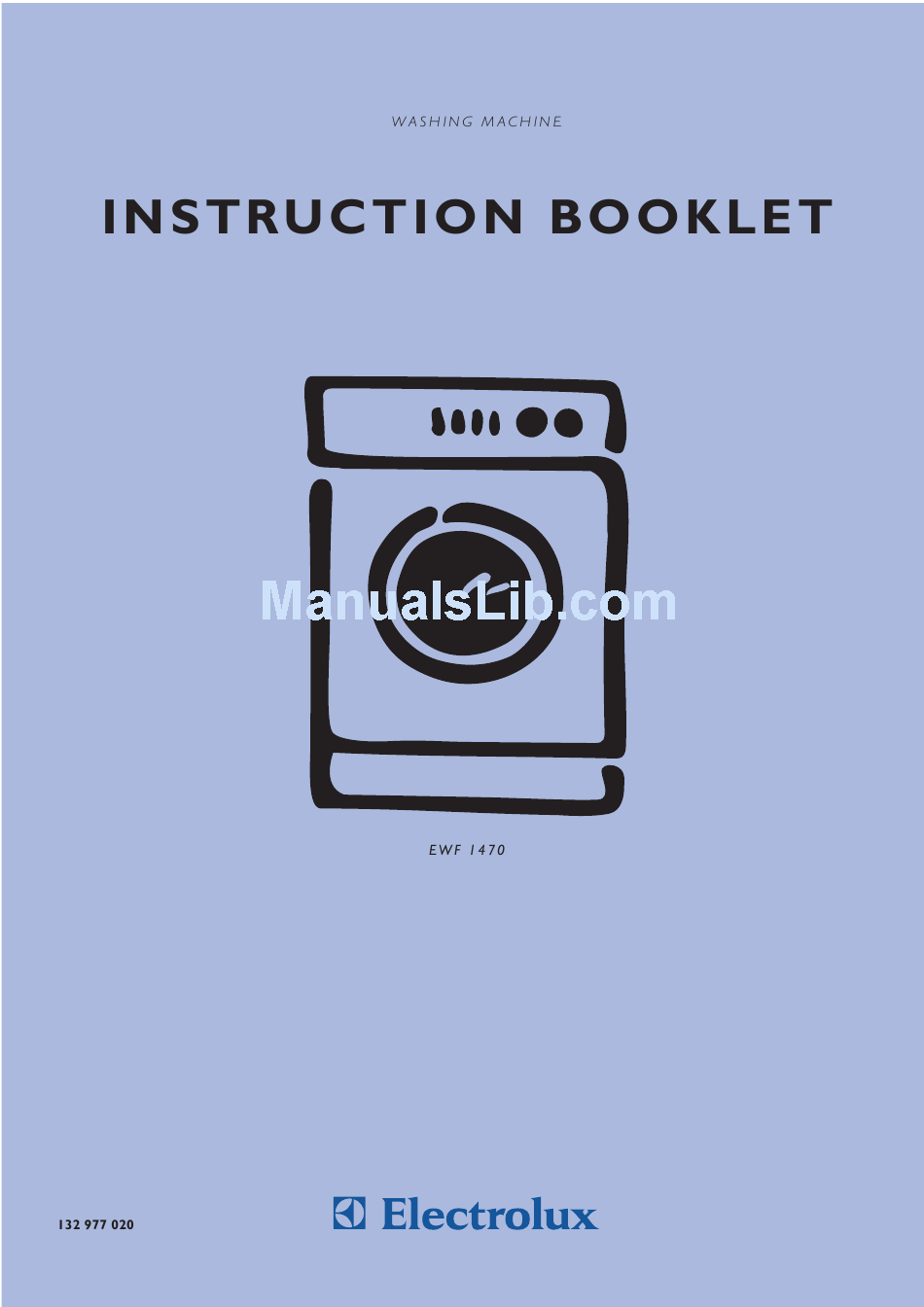

Electrolux EWF 1470 Instruction Booklet
  1. Manuals
  2. Brands
  3. Electrolux Manuals
  4. Washer
  5. EWF 1470
  6. Instruction booklet
Electrolux EWF 1470 Instruction Booklet

Electrolux EWF 1470 Instruction Booklet

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EWF 1470

Summary of Contents for Electrolux EWF 1470

  • Page 2: Table Of Contents

    Contents Warnings Operating sequence 15-17 Washing programmes Disposal International wash code symbols Tips for environmental protection Maintenance After each wash Technical specifications Maintenance wash Door seal Installation Cabinet Unpacking Detergent dispenser drawer Positioning Drain filter Water inlet Water inlet filter Water drainage Emergency emptying out Electrical connection...

  • Page 3: Warnings

    Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated below. We recommend that you keep this instruction manual for future reference and pass it on to any future owners. Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance.

  • Page 4: Disposal

    • Make sure that children or pets do not climb into Disposal the drum. To avoid this the machine incorporates a special feature. To activate this device, rotate the button (without pressing it) inside the door Packaging materials clockwise until the groove is horizontal. If necessary use a coin.

  • Page 5: Installation

    Installation Unpacking 5. Set the machine upright and remove the remaining rear screw. Slide out the relevant pin. 6. Plug all the holes with the plugs which you will All transit bolts and packing must be removed find in the envelope containing the instruction before using the appliance.

  • Page 6: Water Drainage

    The inlet hose must not be lengthened. If it is too The drain hose must not be kinked. Run it along the short and you do not wish to move the tap, you will floor; only the part near the drainage point must be have to purchase a new, longer hose specially raised.

  • Page 7: Your New Washing Machine

    Your new washing machine This new washing machine, which is fitted with the Jet System, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. • The possibility of selecting the temperature and all the options offered by this washing machine gives you truly “customised”...

  • Page 8: Use

    Control panel 1 “On/Off” button will light up. Maximum temperatures are 90°C (Anti + Bac) for cotton, 60°C for synthetic fabrics, 40°C for Press this button to switch the washing machine on. delicate fabrics, wool and fabrics to be hand-washed The display (8) will show three blinking dashes or a (Hand wash programme).
  • Page 9 To complete the cycle, press Skip Reset button • Extra Rinse: can be used with all programmes once,so as to cause all the lights to go off, the except the Wool and Hand wash programme. display will show three flashing dashes. The machine will add 2 rinses to the cotton programmes and 1 rinse to the synthetic and Then press Fabric button in order to select the...
  • Page 10 • The washing machine has stopped with water in • An incorrect option selection has been made: tub, at the end of a programme with Night Cycle this is indicated by the message Err when a option: this is indicated by a blinking zero. function incompatible with the current programme •...

  • Page 11: Skip Reset" Button

    10 “Skip Reset” button To select rinses & spin, the programme must be paused (Start/Pause button depressed), now press This button performs two functions: the Skip button once, the wash LED goes out. - Clears the memory - Selects special programmes At the end of every programme the Reset button must be pressed once or repeatedly to clear the programme memory.
  • Page 12 11 “Delay” button 12 Programme phase indicator lights This button makes it possible to delay the starting of the programme selected from 30 min - 60 min - 90 When you select a programme, the lights relevant to min, 2 hours and then by 1 hour up to a maximum of the phases that form the programme will light up.

  • Page 13: Washing Hints

    Maximum loads Washing hints Recommended loads are indicated in the programme charts. Sorting the laundry General rules: Follow the wash code symbols on each garment Cotton, linen: drum full but not too tightly packed; label and the manufacturer’s washing instructions. Synthetics: drum no more than half full;...

  • Page 14: Detergents And Additives

    Rust: oxalic acid dissolved in hot water or a rust If a dosage ball/device is supplied with your removing product used cold. Be careful with rust concentrate detergent, measure the detergent into stains which are not recent since the cellulose the device/ball which should then be placed on top of structure will already have been damaged and the the laundry and at the back of the machine drum.

  • Page 15: Operating Sequence

    Operating sequence Before the first wash we recommend that you run a 4. Switch the machine on cotton cycle at 90°C (Anti+Bac), with the machine To switch the machine on, press the On/Off button empty, in order to remove any manufacturing residue : the mains-on light comes on.

  • Page 16: Select The Temperature

    9. Select the Delay 6. Select the temperature Before you start the programme, if you wish the Press the Temperature button if you wish to select a starting to be delayed, press the Delay button temperature value different from the one proposed repeatedly, or keep it pressed, to select the desired by the washing machine.

  • Page 17: End Of Programme

    11. How to change an option or a Pay attention to the level and temperature of the water in the washing machine! programme during its cycle When you close the door and press the On/Off button again, the washing machine will resume the Before you make any change, you must PAUSE the programme from the point of where it had been machine by pressing the Start/Pause button.

  • Page 18: Washing Programmes

    Washing Programmes Dispenser- Type of laundry Programme/ Possible washing Description and degree of soil temperature options agents SPIN SPEED NIGHT CYCLE Cottons Wash at 90°-60° COTTONS PREWASH Anti+Bac 3 rinses SOAK Whites and fast coloureds 90°C - 60°C Long spin EXTRA RINSE TIME SAVE SPIN SPEED...

  • Page 19: International Wash Code Symbols

    International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not...

  • Page 20: Maintenance

    Maintenance Detergent dispenser drawer Before any maintenance or cleaning is carried out you must DISCONNECT the appliance After a while, detergents and fabric softeners leave from the electricity supply. deposits in the drawer. Inspect the drawer regularly. To remove the drawer from the machine, press the After each wash button in the rear left-hand corner.

  • Page 21: Drain Filter

    Drain filter Water inlet filter If you notice that the machine is taking longer to fill, The drain filter collects threads and small objects check that the filter in the water inlet hose is not inadvertently left in the laundry. Check regularly that blocked.

  • Page 22: The Dangers Of Freezing

    The dangers of freezing If the machine is exposed to temperatures below 0°C, certain precautions should be taken. • Turn off the water tap. • Unscrew the inlet hose. • Place the end of the inlet hose and that of the emergency emptying hose in a bowl placed on the floor and let the water drain out.

  • Page 23: Trouble-Shooting Guide

    Trouble-Shooting Guide Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out a service technician. Before contacting your local Service Centre, please carry out the checks listed below. During machine’s operation it is possible that one of the following alarm codes will appear on the display, then a warning signal will be heard.

  • Page 24: The Door Will Not Open

    Problem Possible cause • The programme is still running, the drum is turning. • The door will not open: • The door lock has not yet released. (door locked light on). • The water level is above the bottom edge of the door. •...

  • Page 25: Electrolux Warranty New Zealand

    ELECTROLUX APPLIANCE WARRANTY – NEW ZEALAND This appliance is warranted by Electrolux Home Products (NZ) Ltd (“the Company”) from the date of purchase. The following terms and conditions apply: The Company or its Authorised Service Centre will pay the cost of repairing or replacing all parts of the appliance which the Company or its Authorised Service Centre find defective for a period of 24 months following the date of purchase (the “Warranty Period”).

  • Page 26: Electrolux Warranty Australia

    ELECTROLUX WARRANTY AUSTRALIA Nothing in this warranty, limits any rights you may have under the Trade Practices Act or any other Commonwealth or State legislation. Such rights cannot be changed by the conditions in this warranty. Subject to the conditions below, this appliance is warranted by Electrolux Home Products Pty. Ltd. A.B.N. 51 004 762 341, (the “Company”), to be free from defects in materials and workmanship for a period of 24 months following the date of purchase (the “Warranty Period”).
  • Page 28 The Electrolux Group. The world’s No. 1 Choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
