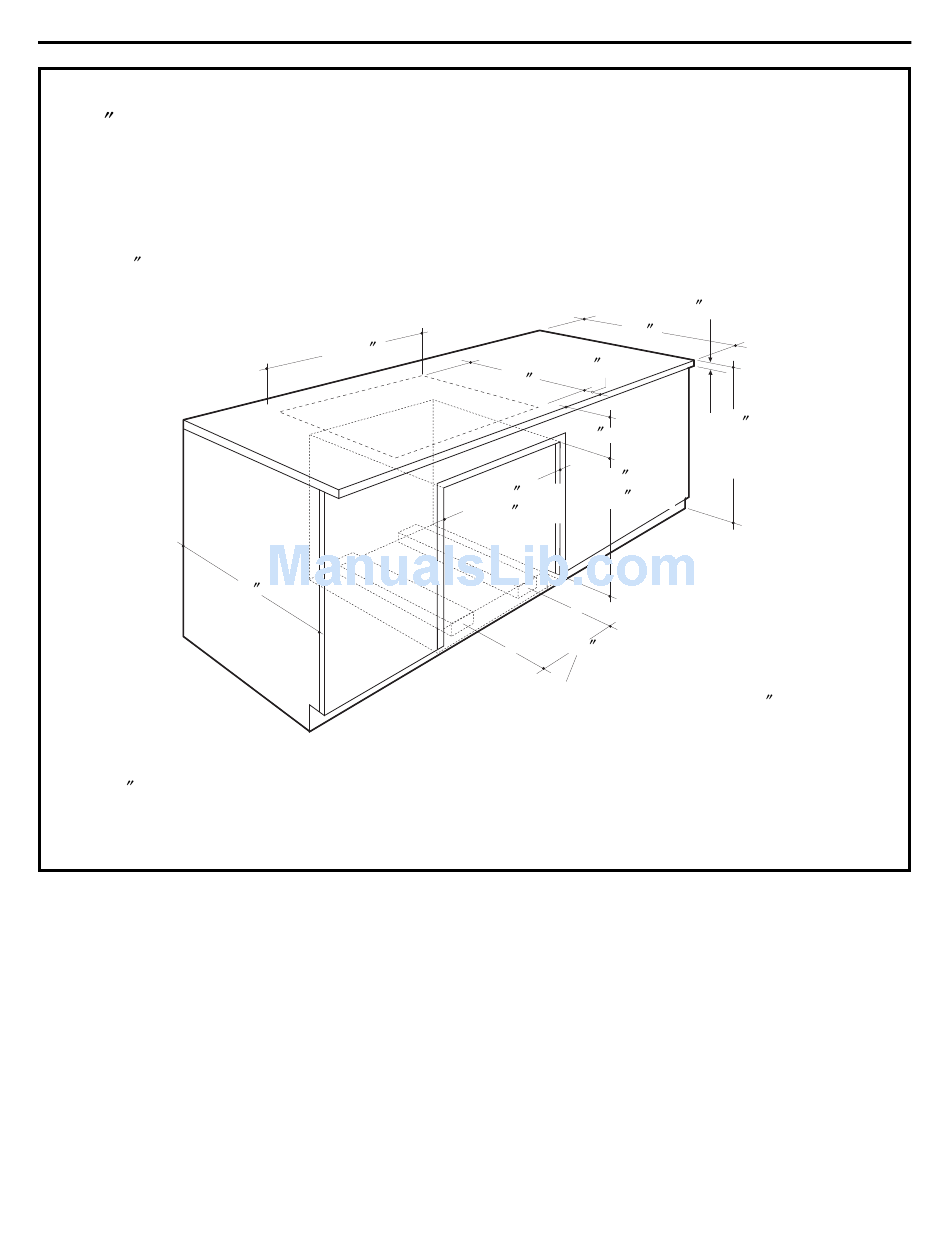

COOKTOP INSTALLATION OVER
A 30 MONOGRAM SINGLE OVEN,
MODEL ZET1 OR ZET938
These cooktops may be installed over the
Monogram ZET1 or ZET938 single oven. Both the
cooktop and the oven must be installed according
to each specific installation instruction.
– Allow 4 Min. clearance from the top of the
countertop to the top of the oven cutout.
23-1/2 min.
Use a 36 or wider base cabinet.
• For best appearance, the cooktop should be
centered over the oven.
Installation Options
POWER SUPPLY
The oven requires a separate, properly grounded
20 Amp, 3-wire 208 or 240 volt, 60 Hz power supply.
The cooktop requires a separate 120V power supply.
See page 8. Where codes permit, the gas shut-off
valve may be located in an adjacent cabinet or
other easily accessible location.
Cooktop
33-7/8
19-1/8
28-1/2 min.
28-5/8 max.
Use two 2x4's or equivalent runners spaced 25 centerline
to centerline in the opening and flush with top of toekick.
Or elevate the oven floor to desired height. The support must
be level, rigidly mounted and capable of supporting 200 lbs.
14
1-1/2 cabinet top
25
2-1/2 min.
4 min.
27-1/4 min.
27-5/16 max.
C L
25
C L
36
countertop
height
