HP Compaq 2230s Specification

Notebook pc
Hide thumbs Also See for Compaq 2230s:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs

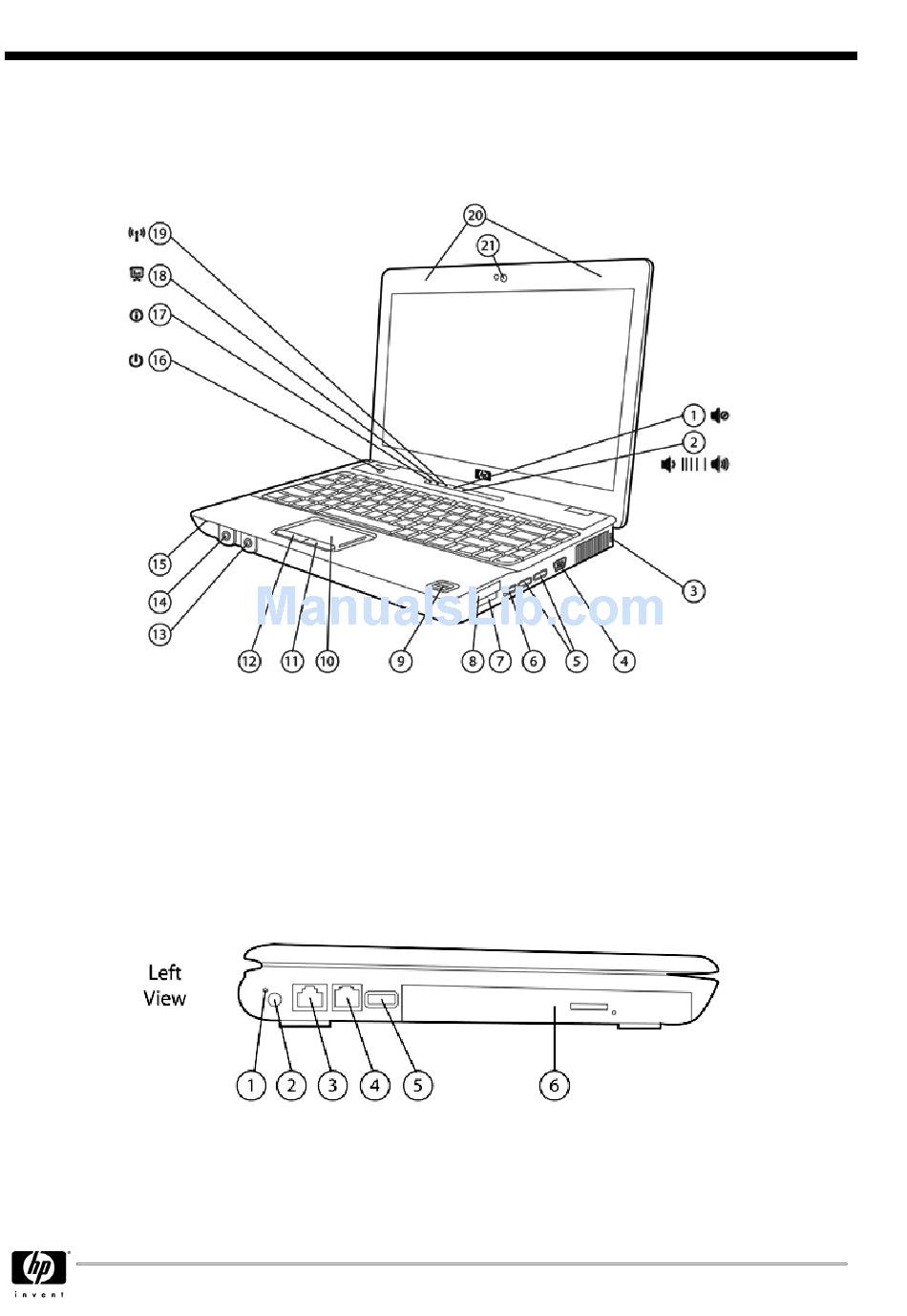

Overview
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Kensington Lock slot
4.
VGA/external monitor connector
5.
(2) USB 2.0 ports
6.
HDMI port
7.
Secure Digital (SD) slot
8.
ExpressCard/34 slot
9.
HP Fingerprint Sensor
10. Touchpad with scroll zone
1.
Battery charging LED
2.
Power connector
3.
RJ-45/Ethernet port
DA - 13106 Worldwide QuickSpecs — Version 7 — 1/8/2009
HP Compaq 2230s Notebook PC
HP recommends
Windows Vista
11. Touchpad right button
12. Touchpad left button
13. Stereo headphone/line out
14. Stereo microphone in
15. Hard drive activity / HP 3D DriveGuard LED
16. Power button with LED
17. HP Info Center button with LED indicator
18. HP Presentation button with LED indicator
19. Wireless on/off button with LED indicator
20. Integrated dual-array microphone
21. Optional VGA webcam
4.
RJ-11/modem port
5.
USB 2.0 ports
6.
Optical drive
®
Business
Page 1

Advertisement

loading

Related Manuals for HP Compaq 2230s

Summary of Contents for HP Compaq 2230s

  • Page 1 13. Stereo headphone/line out VGA/external monitor connector 14. Stereo microphone in (2) USB 2.0 ports 15. Hard drive activity / HP 3D DriveGuard LED HDMI port 16. Power button with LED Secure Digital (SD) slot 17. HP Info Center button with LED indicator ExpressCard/34 slot 18.
  • Page 2 Up to 500 GB 5400 rpm user-removable hard drive with HP 3D DriveGuard protection Up to 8 GB of 800-MHz DDR2 SDRAM, dual channel memory support Touch-sensitive controls for HP Info Center, HP Presentation button, wireless on/off, mute, and volume up, volume down...

  • Page 3: Standard Features

    QuickSpecs HP Compaq 2230s Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9600 (2.8 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P9500 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)* Intel Core 2 Duo Processor P8700 (2.53 GHz, 3 MB L2 cache, 1066 MHz FSB)*...
  • Page 4 NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
  • Page 5 19 mm x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and comfort-dished keycaps. Touch-sensitive Touch-sensitive controls provide easy access to the following features: HP Info Center, HP controls Presentation button, wireless on/off, mute, and volume up, volume down...
  • Page 6 First update included. Subscription required for updates thereafter. HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted.
  • Page 7 6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Battery Primary Battery 4-cell (37 WHr) Lithium-Ion battery...
  • Page 8 HP Services offers limited 3-year and 1-year warranty options depending on country; 1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.
  • Page 9 QuickSpecs HP Compaq 2230s Notebook PC Options Memory HP 1 GB (DDR2 800 MHz) SODIMM KT292AA HP 2 GB (DDR2 800 MHz) SODIMM KT293AA HP 4 GB (DDR2 800 MHz) SODIMM KT293AA Other Storage HP Notebooks USB Diskette Drive DC361B...
  • Page 10 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
  • Page 11 QuickSpecs HP Compaq 2230s Notebook PC Storage Removable Media Drive Support Quantity Supported Drive Bay DVD-ROM Fixed optical drive bay DVD/CD-RW Combo Drive Fixed optical drive bay DVD+/-RW SuperMulti DL Drive Fixed optical drive bay Blu-ray ROM DVD+/-RW SuperMulti DL...

  • Page 12: Technical Specifications

    QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.10 in (at front) x 11.57 in x 8.90 in 28 mm (at front) x 294 mm x 226 mm Weight Starting at 4.07 lb (1.85 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components.
  • Page 13 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications HP 65W Smart AC Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Adapter Weight 0.62 lb (280 g) Input 100 to 240 VAC Input Efficiency 83% min at 115 VAC...
  • Page 14 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications 12.1-inch Color TFT Active Area (W x H) 10.3 x 6.4 in (26.1 x 16.3 cm) WXGA Display Diagonal Size 12.1 in (30.7 cm) Surface Treatment Anti-glare Contrast Ratio 300:1 (typical) Refresh Rate...
  • Page 15 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications 500-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ Transfer Rate...
  • Page 16 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications 160-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ Transfer Rate...
  • Page 17 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications DVD/CD-RW Combo Access Times Random <110 ms CD Drive <130 ms DVD Max Data Transfer Rate24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 24X CD-RW 3,600 KB/s Transfer Mode...
  • Page 18 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Blu-ray ROM DVD+/- Access Times Random <190 ms CD-ROM (typical) RW SuperMulti DL <180 ms DVD-ROM (typical) Drive <230 ms BD-ROM (typical) Max Data Transfer Rate16X CD-ROM Up to 2400 KB/s 8X DVD-ROM...
  • Page 19 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Hardware Implementation ADI1984AJCPZ High Definition CODEC Touch-Sensitive Volume up, volume down, and mute Volume Controls Full Duplex Sound Blaster Pro compatible Microphone In Stereo Headphone/Line Out Stereo Integrated Microphone Yes Audio Output Quality Frequency Response 20 Hz –...
  • Page 20 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Fax Mode Capabilities TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2 Command Set V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA...
  • Page 21 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Power Consumption Transmit: 2.3 Watts (average, with one spatial streams) Receive: 1.9 Watts (average with two receive chains) Idle mode : 30 mW (average) Radio off: 20 mW (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 22 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC,...
  • Page 23 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Broadcom IHV extensions for Windows Vista available to support Cisco Compatible Extensions. LED Activity LED Off – Radio OFF; Solid LED On – Radio ON Check latest software/driver release for updates on supported security features.
  • Page 24 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Power Management ACPI compliant power management 802.11 compliant power saving mode Receiver Sensitivity 270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: - 85 dBm , 1 Mbps: -94 dBm...
  • Page 25 QuickSpecs HP Compaq 2230s Notebook PC Technical Specifications Receiver Sensitivity Better than -80 dBM at 0.1 % raw bit error rate Power Consumption Peak (Tx) 264 mW Peak (Rx) 231 mW Sleep <1 mW Antenna Internally integrated within module Range...
  • Page 26 This product is in compliance with the Restrictions of Hazardous information Substances (RoHS) directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. DA - 13106 Worldwide QuickSpecs — Version 7 — 1/8/2009...
  • Page 27 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
  • Page 28 The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
