Installation and Operating Data
Installation and
Operation Manual

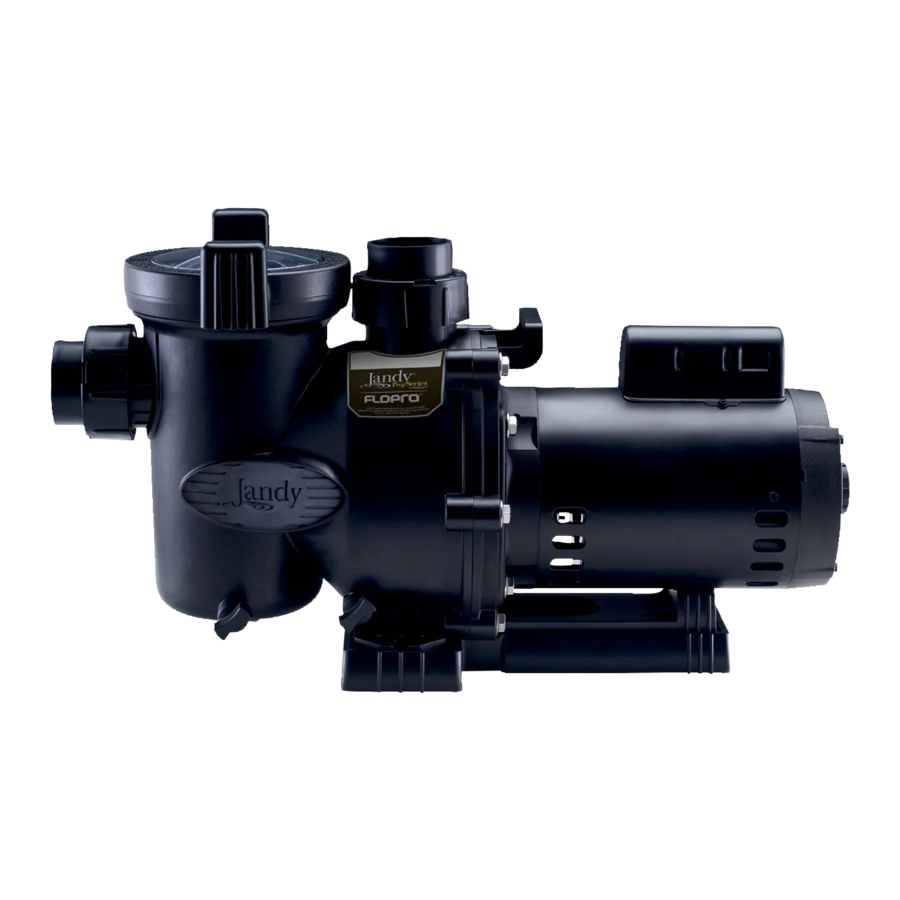

FloPro
Series Pumps
Model FHPM
FOR YOUR SAFETY: This product must be in stalled and serviced by a professional service
technician, qualified in pool/spa installation. The procedures in this manual must be followed
exactly. Improper in stal la tion and/or op er a tion can create dangerous electrical hazards, which
can cause high voltages to run through the electrical system, possibly causing death, serious
injury or property damage. Improper in stal la tion and/or op er a tion will void the warranty.
WARNING
ATTENTION INSTALLER: This manual contains important information about
the in stal la tion, operation and safe use of this product. This information
should be given to the owner/operator of this equipment.
Advertisement
Table of Contents
Related Manuals for Jandy FHPM FloPro Series
Summary of Contents for Jandy FHPM FloPro Series
- Page 1 Installation and Operating Data Installation and Operation Manual FloPro Series Pumps Model FHPM WARNING FOR YOUR SAFETY: This product must be in stalled and serviced by a professional service technician, qualified in pool/spa installation. The procedures in this manual must be followed exactly.
-
Page 3: Table Of Contents
Page 3 FloPro Series Pumps Installation and Operation Manual Table of Contents Section 5. Service and Maintenance ....Section 1. Important Safety Instructions ... Routine Maintenance ...... Safety Instructions ......Winterizing the Pump ..... Pool Pump Suction Entrapment Prevention Guidelines ..... Section 6. -
Page 4: Section 1. Important Safety Instructions
WARNING Jandy Pumps are powered by a high voltage electric motor and must be installed by a licensed or certified electrician or a qualified swimming pool service tech ni cian. - Page 5 • Water temperature for test must NOT EXCEED 100°F (38°C). • Limit test to 24 hours. After test, visually check the system to make sure it is ready for operation. Notice: These parameters apply to Jandy equipment only. For non-Jandy equipment, consult the equipment manufacturer.
-
Page 6: Pool Pump Suction Entrapment Prevention Guidelines
Page 6 FloPro Series Pumps Installation and Operation Manual Pool Pump Suction Entrapment Prevention Guidelines WARNING SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading pools, shallow pools, or spas containing bottom drains, unless the pump is connected to at least two (2) functioning suction outlets. - Page 7 Page 7 FloPro Series Pumps Installation and Operation Manual At Least 3 Feet Listed/certified to the latest Listed/certified to the latest published version of published version of ANSI/ASME A112.19.8 ANSI/ASME A112.19.8 Anti-entrapment Anti-entrapment Cover/Grate or Suction Cover/Grate or Suction Fitting, screw-fastened to No valves between Fitting, screw-fastened to Main Drain Sump...
-
Page 8: Section 2. General Description
(FHP) Series Pumps, Model FHPM. Procedures in this manual must be followed exactly. To obtain additional WARNING copies of this manual, contact Jandy Customer Service Some Safety Vacuum Release System (SVRS) at 1.800.822.7933. For address information, see the devices are not compatible with installation of check back cover of this manual. - Page 9 Jandy FHP pumps can easily replace several other pumps: the Hayward Super Pump , Pentair ® ® ® To replace a Jandy PHP or Jandy MHP pump with a SuperFlo , Pentair WhisperFlo , Jandy PlusHP (PHP), ® ® ®...
-
Page 10: Pipe Sizing
Always use properly sized valves. Jandy Diverter To help prevent difficulty in priming, install the Valves and Jandy Ball Valves typically have the suction pipe without high points, which can trap best flow capabilities. air. (High points are inverted ‘U’s above the inlet Use the fewest fittings possible. -
Page 11: Bonding And Grounding
Page 11 FloPro Series Pumps Installation and Operation Manual CAUTION CAUTION Failure to provide data plate voltage (within 10%) The pump must be permanently connected to a during operation will cause the motor to overheat dedicated electrical circuit. No other equipment, and will void the warranty. -
Page 12: Pressure Testing
If the pump does not prime and all the instructions to this point have been followed, check for a suction leak. If there is no leak, repeat Steps 2 through 7. For technical assistance, call Jandy Technical Support at 1.800.822.7933. -
Page 13: Section 5. Service And Maintenance
Page 13 FloPro Series Pumps Installation and Operation Manual Turn on the power to the pump. Once all the air Section 5. Service and Maintenance has been evacuated from the filter, close the filter pressure release valve. Routine Maintenance Winterizing the Pump WARNING To avoid the risk of property damage, severe personal CAUTION... -
Page 14: Section 6. Troubleshooting And Repair
Section 6. Troubleshooting and Repair Zodiac Pool Systems, Inc. strongly recommends that you call a qualified service technician to perform any repairs on the filter/pump system. To locate a qualified technician, check your local yellow pages or visit www.jandy.com and click on “Product Support.”... -
Page 15: Service Technician Maintenance
Page 15 FloPro Series Pumps Installation and Operation Manual Service Technician Maintenance NOTE If you are replacing the motor, Zodiac Pool Systems, Inc. strongly recommends that a qualified service technician or electrician WARNING properly disconnect the electrical wiring at the This pump must be serviced by a professional pump motor. -
Page 16: Impeller Replacement
Page 16 FloPro Series Pumps Installation and Operation Manual If necessary, remove any debris in the inlet and 6.2.3 Impeller Replacement outlet of the impeller. WARNING Remove the motor shaft cover on the back of the motor by twisting the hex-head screw with a 90° To avoid the risk of property damage, severe personal crescent wrench. -
Page 17: Mechanical Seal Replacement
Page 17 FloPro Series Pumps Installation and Operation Manual Replace the two (2) small Phillips-head screws. 12. Open the pressure release valve on the filter and Tighten the screws to draw the diffuser against the make sure it is clean and ready for operation. motor backplate. -
Page 18: Motor Replacement
Page 18 FloPro Series Pumps Installation and Operation Manual Turn the backplate o-ring side up and insert the new ceramic seal side into the backplate. Use Backplate great care to press the seal in squarely with your fingers. The ceramic is easily damaged and must Bolts and be pressed in using only your fingers or soft tools. -
Page 19: Section 7. Product Specifi Cations And Technical Data
Section 7. Product Specifications and Technical Data Replacement Parts List To order or purchase parts for Jandy pumps, contact your nearest Jandy dealer. If the Jandy dealer cannot supply you with what you need, contact Jandy customer service at 1.800.822.7933, or send an e-mail message to info@jandy.com. -
Page 20: Exploded View
Page 20 FloPro Series Pumps Installation and Operation Manual Exploded View 11 (qty 2) 17 (qty 2) 2, 5 2 (qty 6) 15 (qty 6) 1 (qty 4) 16 (qty 4) 4,14 10 (qty 2) 3,14 4, 14 (qty 2) 2, 3, 4, 6, 13, 14, 15 Figure 15. -
Page 21: Fhpm Pump Curves
Page 21 FloPro Series Pumps Installation and Operation Manual Performance Curves Jandy FloPro Series Pumps Max-Rated (FHPM) Pounds Per Square Inch Total Dynamic Head (PSI) (Feet of Water) FloPro, FHPM .75 HP, FloPro, FHPM 2.5 HP, 3450 RPM 3450 RPM FloPro, FHPM 2.0 HP, 3450 RPM... -
Page 22: Physical And Operational Specifi Cations
Page 22 FloPro Series Pumps Installation and Operation Manual Physical and Operational Specifications 7.4.1 Specifications Table 4. FHPM Pump Specifications Model No. Voltage Amps Pipe Size Carton Weight Overall Length 'A' FHPM .75 0.75 230/115 5.4/10.8 1½-2" 40.6 25 3/16" FHPM 1.0 1.00 230/115... -
Page 23: Replacement Motor Guide
Page 23 FloPro Series Pumps Installation and Operation Manual Replacement Motor Guide Table 6. FHPM Replacement Motor Guide Jandy FHPM Pump Model A.O. Smith Century Model Emerson Motor Technologies Model FHPM 0.75 B852 EB852 FHPM 1.0 B853 EB853 FHPM 1.5... -
Page 24: Limited Warranty
If the dealer is not available, you can locate a service center in your area by visiting www.jandy.com or by calling our technical support department at 1.800.822.7933. All returned parts must have a Returned Material Authorization number to be evaluated under the terms of this warranty.
