Owner's Guide
INSTALLATION
•
OPERATION
•
MAINTENANCE
•
SERVICING
•
READ AND SAVE
THIS INSTRUCTION
MANUAL
IMPORTANT
Note any damage on the freight bill, as any
damage claim must be filed with carrier.
Motor, motor pulley and belt sold
separately

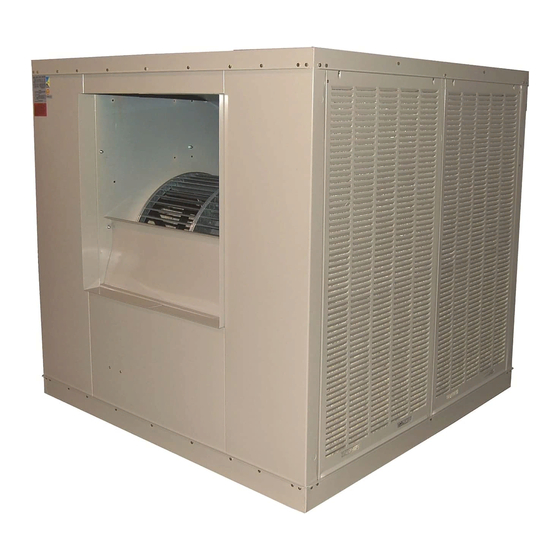

Evaporative Air Cooler
Models
PCRD
11000 & 11000-2
13000 & 13000-2
15000
16000
Date purchase: _____________________
Purchased from: ____________________
PCRS
11000 & 11000-2
13000 & 13000-2
15000
16000
P/N 522319
Rev. 6/02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Essick 16000
Summary of Contents for Essick 16000
- Page 1 11000 & 11000-2 THIS INSTRUCTION 13000 & 13000-2 13000 & 13000-2 MANUAL 15000 15000 16000 16000 IMPORTANT Date purchase: _____________________ Note any damage on the freight bill, as any damage claim must be filed with carrier. Purchased from: ____________________ Motor, motor pulley and belt sold...
- Page 2 It is exhausted out open windows or doors, carrying heat, smoke and odors along with it. Essick evaporative coolers are 80% less costly to operate than refrigerated air conditioners.
- Page 3 BELT ADJUSTMENT An improperly adjusted belt will greatly shorten motor life. A deflection of 1” with 3 to 5 pounds of force applied will indicate proper adjustment. Do Not use the motor pulley to adjust belt tension. Always use the Motor Adjustment Assemblies to adjust the belt tension.
- Page 4 START UP After installing cooler and before filling with water: 1. Open windows and doors or other exhaust openings in building. 2. Turn on cooler and check amperage at the incoming white lead, using clamp on ammeter. If amperage reads above motor name plate, refer to the motor pulley adjustment instructions (page 2) and open the pulley ½...
- Page 5 Part Number Part Number Item Description Item Description PCRD PCRS PCRD PCRS Reservoir cover 514544 Blower housing 70708 Module support 504137 Blower wheel 70640 Reservoir 523110 Shaft 70672 Splash baffle 70722 Bearing 583005 Pump (115V) 506657 Set collar 501242 Pump (230V) 506658 Blower pulley 583095...
- Page 6 This warranty includes lifetime limited coverage on water reservoir against any leakage due to defects in material. From date of installation, if any original component part provided by Essick Air Products fails due to defect in material or factory workmanship only, Essick Air Products will provide the replacement parts as follows:...
