Owner's Manual
Model #'s
WC35, RWC35
N35W, RN35W
WC44, RWC44
WC46, RWC46
N46W, RN46W
WC50, RWC50
N50W, RN50W

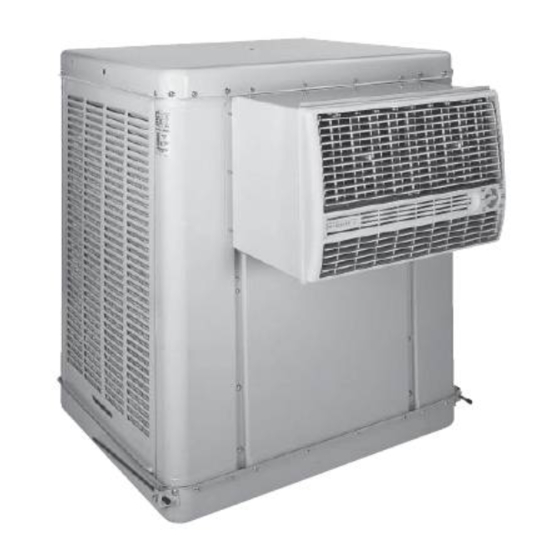

Window Evaporative
Air Cooler
Evaporative cooling uses the principle of evaporation to lower the air
temperature. Hot, dry air is passed through wetted filters and is converted to
refreshingly cooled air. Champion/Essick coolers make the best use of the
evaporative process by controlling the flow of water, spreading the water evenly
over the filters, and keeping a steady stream of cooled air entering your home.
It is exhausted out open windows or doors, carrying heat, smoke and odors
along with it. Champion/Essick evaporative coolers are 80% less costly to
operate than refrigerated air conditioners.
1
Evaporative Cooling
P/N 71088
REV 1/06
Advertisement
Table of Contents
Related Manuals for Essick WC35
Summary of Contents for Essick WC35
- Page 1 Evaporative cooling uses the principle of evaporation to lower the air temperature. Hot, dry air is passed through wetted filters and is converted to refreshingly cooled air. Champion/Essick coolers make the best use of the evaporative process by controlling the flow of water, spreading the water evenly over the filters, and keeping a steady stream of cooled air entering your home.
- Page 2 SAFETY GUIDE LINES & CAUTIONS When Installing When Operating When Servicing Make sure that circuit cooler is plugged into is Make sure that unit is installed on a sound equipped with a (slow blow) breaker large Always Unplug the cooler before attempting structure that will support the full operating enough to support the full amperage of the service of any kind.
- Page 3 INSTALL OVERFLOW AND DRAIN 1. Slide the Rubber Washer over the Drain Bushing and push through the hole in the bottom of the cooler from the top side. 2. Secure the Drain Bushing from beneath the pan with the Lock Nut. Make sure the Rubber Washer does not twist while tightening, which could cause it to leak.
-
Page 4: Wiring Diagram
(R)WC50/(R)N50W 35” 34” 34” (R)WC46/(R)N46W 35” 34” 34” (R)WC44 35” 34” 28” (R)WC35/(R)N35W 31” 32” 21” TROUBLE SHOOTING Problem Cause Remedy • Excessive belt tension • Adjust belt tension • Blower shaft not spinning freely • Lubricate or replace bearings Motor cycles on and off •... -
Page 5: Maintenance
MAINTENANCE NOTE: The fan motor is thermally protected with an automatic reset and will automatically stop if overloaded. After the motor cools, it will restart automatically. If this occurs, check into the problem before permanent damage occurs. 3/4" Once a month during cooling season, inspect your cooler for leaks, proper belt tension and alignment, blocked water lines and excessive residue build-up on the pads. - Page 6 Repair Parts WC35, N35W WC44 WC46, N46W WC50, N50W RWC35, RN35W RWC44 RWC46, RN46W RWC50, RN50W Item Description Part No. Part No. Part No. Part No. 70735 70738 71090 71090 70737 70740 70740 70740 Front 70736 70739 70759 70759 Bottom...
- Page 7 Models/Modelos: WC35/N35W, WC46/N46W, Models/Modelos: WC50/N50W RWC35/RN35W, RWC46/RN46W, RWC50/RN50W...
-
Page 8: Limited Warranty
Champion Cooler/Essick Air Products recommends is used in the unit. Champion Cooler/Essick Air Products is not responsible for the cost of service calls to diagnose cause of trouble, or labor charge to repair and/or replace parts. - Page 9 El enfriamiento por evaporación usa el principio de la evaporación para bajar la temperatura del aire. El aire seco y caliente pasa por filtros mojados y es transformado en aire frío y fresco. Los enfriadores Champion/Essick utilizan en forma óptima el proceso evaporativo controlando el flujo de agua, esparciendo el agua en forma pareja sobre los filtros y manteniendo un flujo constante de aire frío en la casa.
-
Page 10: Montaje
Indicaciones y precauciones de seguridad Instalación Operación Servicio Asegure que la unidad está instalada sobre una Asegure que el circuito al que el enfriador está Siempre desenchufe el enfriador antes de estructura firme que soporte el peso total enchufado (soplador lento) tenga instalado un iniciar cualquier clase de servicio de operativo del enfriador. - Page 11 INSTALACIÓN DE REBOSADURA Y DESAGÜE 1. Deslice la arandela de goma sobre el buje del deasgüe y empuje a través del orificio desde la parte superior del enfriador, hacia la parte inferior. 2. Asegure el buje de desagüe por debajo de la bandeja con la contra-tuerca. Asegure que la arandela no se tuerza mientras se la está...
-
Page 12: Diagrama Del Cableado
35” 34” 34” (R)WC46/(R)N46W 35” 34” 34” (R)WC44 35” 34” 28” (R)WC35/(R)N35W 31” 32” 21” SOLUCIÓN POR MAL FUNCIONAMIENTO Problema Causa Solución • Correa demasiado tensa. • Ajustar la tensión de la correa • Eje del soplador no gira libremente. -
Page 13: Mantenimiento
MANTENIMIENTO NOTA: el motor de este soplador está térmicamente protegido con un reposicionador automático y se detendra automáticamente en caso de una sobrecarga. Después de que el motor se enfrie, arrancará nuevamente de forma automática. Si sucede esto, corrija el 3/4"... - Page 14 Lista de Repuestos WC35, N35W WC44 WC46, N46W WC50, N50W Item RWC35, RN35W RWC44 RWC46, RN46W RWC50, RN50W Descripción Parte # Parte # Parte # Parte # 70735 70738 71090 71090 Tapa 70737 70740 70740 70740 Frente 70736 70739 70759...
- Page 15 Models/Modelos: WC35/N35W, WC46/N46W, Models/Modelos: WC50/N50W RWC35/RN35W, RWC46/RN46W, RWC50/RN50W...
-
Page 16: Garantia Limitada
Essick Air Products para esta unidad. Champion Cooler/Essick Air Products no es responsable por el costo de las visitas de servicio para diagnosticar la causa del problema, o los costos por la mano de obra para reparar y/o reemplazar piezas.
