16-3066.fm Page 1 Monday, November 10, 2003 9:37 AM

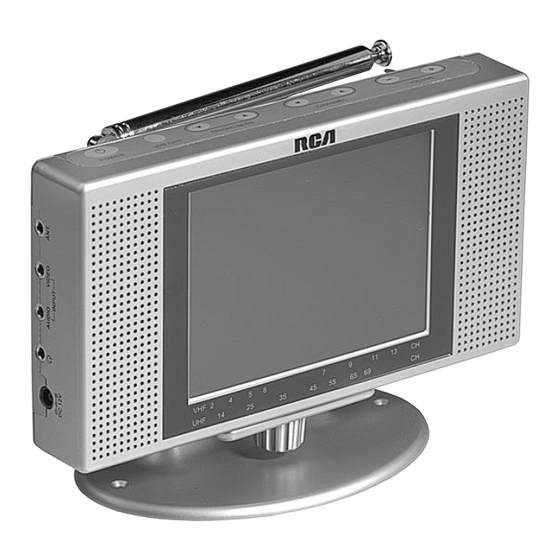

5-Inch Color TFT LCD TV
5-Inch TFT Active Matrix Flat Liquid
Crystal (LCD) Display — delivers higher
resolution and brighter colors than
standard LCD screens.
Dual Speakers — deliver stereo sound
from your stereo audio/video device
connected to the TV.
Detachable Stand — set up and watch
TV almost anywhere.
Automatic Electronic Tuning System —
scans the VHF or UHF band and locks in
your favorite stations.
Three Power Options — power the TV
using internal batteries or the supplied AC
adapter and supplied DC adapter.
Fluorescent Backlight — illuminates the
LCD screen so you can watch the TV in the
dark or in low-light conditions.
Built-in Rod Antenna — provides
adequate reception in most metropolitan
areas.
Audio/Video Jack — connect a
camcorder, VCR, DVD player, or any
device that has A/V outputs.
Earphone Jack — enjoy private listening
with an optional earphone.
External Antenna Jack — connect an
external antenna for better reception.
This product contains mercury, a
hazardous substance regulated by law. Do
not place in garbage or otherwise dispose
of this product until the mercury is
removed and reused, recycled, or otherwise
managed to ensure that it does not become
part of solid waste or wastewater.

Package Contents

AC Adapter
2004 RadioShack Corporation.
©
All Rights Reserved.
TV (with stand)
DC Adapter
Owner's Manual

Advertisement

   Related Manuals for RCA 5-Inch

   Summary of Contents for RCA 5-Inch

  • Page 1: Package Contents

    This product contains mercury, a hazardous substance regulated by law. Do 5-Inch TFT Active Matrix Flat Liquid not place in garbage or otherwise dispose Crystal (LCD) Display — delivers higher of this product until the mercury is...
  • Page 2: Installing Batteries

    16-3066.fm Page 2 Monday, November 10, 2003 9:37 AM Installing Batteries cover. Then insert a flat blade screw- driver into the slot on the right side of Antenna Battery Compartment the battery compartment cover to pry off the cover. 3. Insert eight fresh batteries into the compartment as...
  • Page 3: Using The Stand

    16-3066.fm Page 3 Monday, November 10, 2003 9:37 AM AC Power Caution: You must use a power source You can power the TV using the supplied that supplies 12V DC and AC adapter. delivers at least 800 mA. Its center tip must be set to positive and its Caution: plug must fit the TV's jack.
  • Page 4: Using Your Tv

    16-3066.fm Page 4 Monday, November 10, 2003 9:37 AM To attach the Notes: stand to the • In low temperatures, the TV screen TV, rotate the takes a few seconds to light, or it might locking knob be slightly red in color. This is not a on the bottom malfunction.
  • Page 5: Troubleshooting

    16-3066.fm Page 5 Monday, November 10, 2003 9:37 AM Connecting an to the volume level. So a volume level that does not cause discomfort might External Antenna still damage your hearing. If you are in an area with weak TV signals, or are inside a metal or concrete building, Traffic Safety you might need an external outdoor antenna...
  • Page 6 16-3066.fm Page 6 Monday, November 10, 2003 9:37 AM • If you use an AC or DC adapter, be sure • Be sure the TV is away from appliances it is correctly connected. that might cause interference. • If you use a DC adapter, be sure the fuse •...
  • Page 7: Specifications

    16-3066.fm Page 7 Monday, November 10, 2003 9:37 AM Specifications TV Type ............................. Color TFT-LCD Channel Coverage ......................UHF: CH 14–CH 69 VHF: CH 2–CH 13 × Display Element Format (HW) ..............234 960 dots, total 224,640 dots Screen Size .......................... 5 Inches Diagonally (121 mm) Backlight ......................
  • Page 8 16-3066.fm Page 8 Monday, November 10, 2003 9:37 AM Accessories Your local RadioShack store carries a wide variety of accessories for your TV. Y-Adapter Rechargeable Batteries Headphones External Antenna Limited Ninety-Day Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and au- thorized RadioShack franchisees and dealers.
