- Page 1 P-870HN-5xb IPv6 version Quick Start Guide 802.11n VDSL2 4-port Gateway Firmware Version 1.12 Edition 1, 2/2011 DEFAULT LOGIN DETAILS LAN Port LAN1 ~ LAN4 IP Address http://192.168.1.1 Username admin Password 1234 2011 ZyXEL Communications Corporation www.zyxel.com...

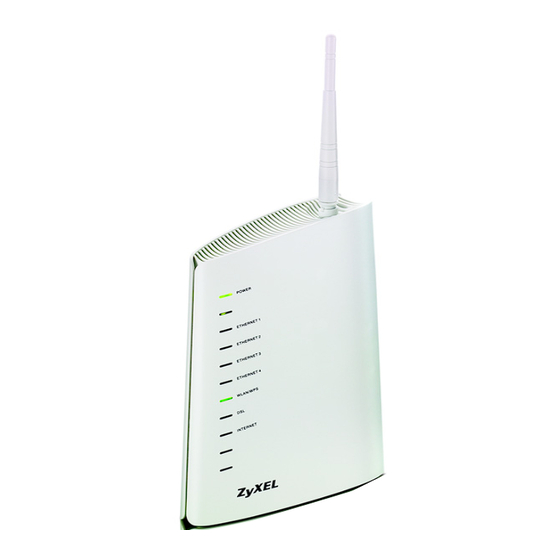

- Page 2 Device Panels Antenna Power Switch Power LED Power Socket WPS/WLAN Button Reset Button Ethernet LEDs 1-4 WLAN/ WPS LED Ethernet DSL LED Ports 1-4 Internet DSL Port...
- Page 3 Introduction The P-870HN-5xb is a VDSL2 gateway that provides super high-speed Internet access. You can have multiple ADSL (ADSL, ADSL2, ADSL2+) connections or multiple VDSL (VDSL, VDSL2) connections over a telephone line. You cannot have ADSL and VDSL connections at the same time.
-
Page 4: Before You Begin
Before You Begin Make sure you have the following things before you start. • INTERNET ACCESS: You need an Internet account with an ISP (Internet Service Provider) and information such as user name, password, and so on. • WEB BROWSER: Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions or Safari 2.0 and later versions. -
Page 5: Hardware Connections
Hardware Connections Remove any clear plastic covers from the P-870HN-5xb before using it. -
Page 6: Checking The Leds
1. Point the antenna up. 2. DSL: Use a telephone wire to connect this port to a telephone jack (or the DSL or MODEM jack on a splitter, if one is already installed). 3. ETHERNET 1-4: Use an Ethernet cable to connect a computer to this port for initial configuration and/or Internet access. -
Page 7: Initial Configuration
Initial Configuration 1. Open your browser and enter http://192.168.1.1 (the P-870HN-5xb's default IP address) as the address. 2. Enter the admin user name admin and password 1234 (default). Click OK. If the login screen does not display, make sure you allow web browser pop-up windows, JavaScripts and Java permissions. -
Page 8: Wireless Setup
If you cannot access the Internet and the INTERNET LED is off, make sure you enter the correct information in the WAN screens. If you are using a new Internet account, contact your ISP to make sure it is active. If you are trying to access the Internet wirelessly, make sure the wireless and security settings in your wireless client are the same as the settings in the P- 870HN-5xb. - Page 9 Make sure your wireless security settings are compatible with your existing wireless devices. See the User's Guide for more information on wireless networks. Go to the Set Up a WPS Connection section if you do not want to use the wireless LAN screen to set up your wireless network.
- Page 10 Set Up a WPS Connection Check if your wireless device supports WPS. Place the device you want to connect near the P-870HN-5xb. Press the WPS button on the P- 870HN-5xb for more than 5 seconds. The WPS light blinks. Press the WPS button on a compatible wireless device (such as the NWD2205) within 2 minutes of pressing the WPS...
- Page 11 Procedure to View a Product’s Certification(s) 1. Go to www.zyxel.com. 2. Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3. Select the certification you wish to view from this page. For more information, please refer to the User’s Guide on the provided CD or at the www.zyxel.com download library.
