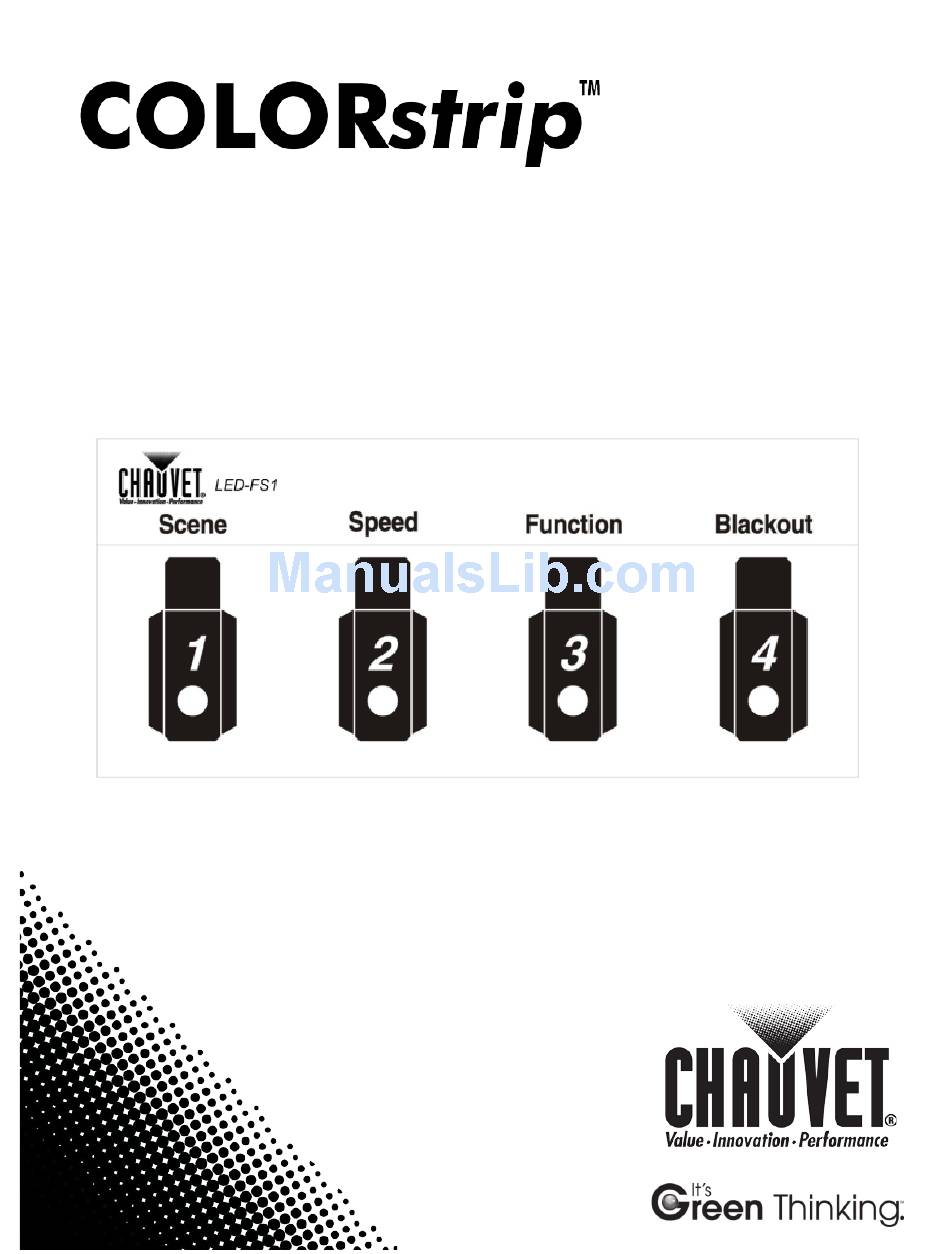

- Page 1 Footswitch (LED-FS1) User Manual...
-
Page 2: Table Of Contents
5. Technical Information ................8 Product Maintenance ..................8 General Troubleshooting ................8 Contact Procedure ..................9 CHAUVET® Contact Information ..............9 Returning Products to CHAUVET® ..............9 6. Technical Specifications ..............10 Page 2 of 10 COLORstrip™ Footswitch User Manual Rev. 3... -
Page 3: Before You Begin
CHAUVET®. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Fixed voltage (120 V or 230 V) Glance Outdoor Use Switchable voltage (120 V/230 V) Auto-ranging Power Supply Replaceable Fuse Sound-Activated Circuit breaker User-Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. -
Page 5: Introduction
2. I NTRODUCTION Product Overview 6-pin DIN cable connection (rear) Power Indicator Scene Button Speed Button Function Button Blackout Button COLORstrip™ Footswitch User Manual Rev. 3 Page 5 of 10... -
Page 6: Setup
3. S ETUP Power The input power for the Foot Controller is provided by the COLORstrip™ product being used. The included 6-pin DIN cable provides both power and signal between the controller and the product. To determine the COLORStrip’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Operation
4. O PERATION Foot The COLORstrip™ Foot Controller provides quick access to the COLORstrip’s built-in programs, blackout function, static colors, strobe speed, and chase programs. Please Controller refer to the Product Overview to see the button locations on the Foot Controller. Functions Button Function... -
Page 8: Technical Information
Check the 6-pin DIN cable for kinks or power on damage Internal problem Send product for repair If you still experience problems after trying the provided solutions, contact CHAUVET® Technical Support. Page 8 of 10 COLORstrip™ Footswitch User Manual Rev. 3... -
Page 9: Contact Procedure
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). · If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our website for contact details of distributors outside the US, United Kingdom, or Ireland. -
Page 10: Technical Specifications
5 lbs (2.3 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Thermal Maximum External Temp. 104° F (40° C) Ordering Product Name Item Code Item Number COLORstrip Footswitch 02080189 LED-FS1 Page 10 of 10 COLORstrip™ Footswitch User Manual Rev. 3...
