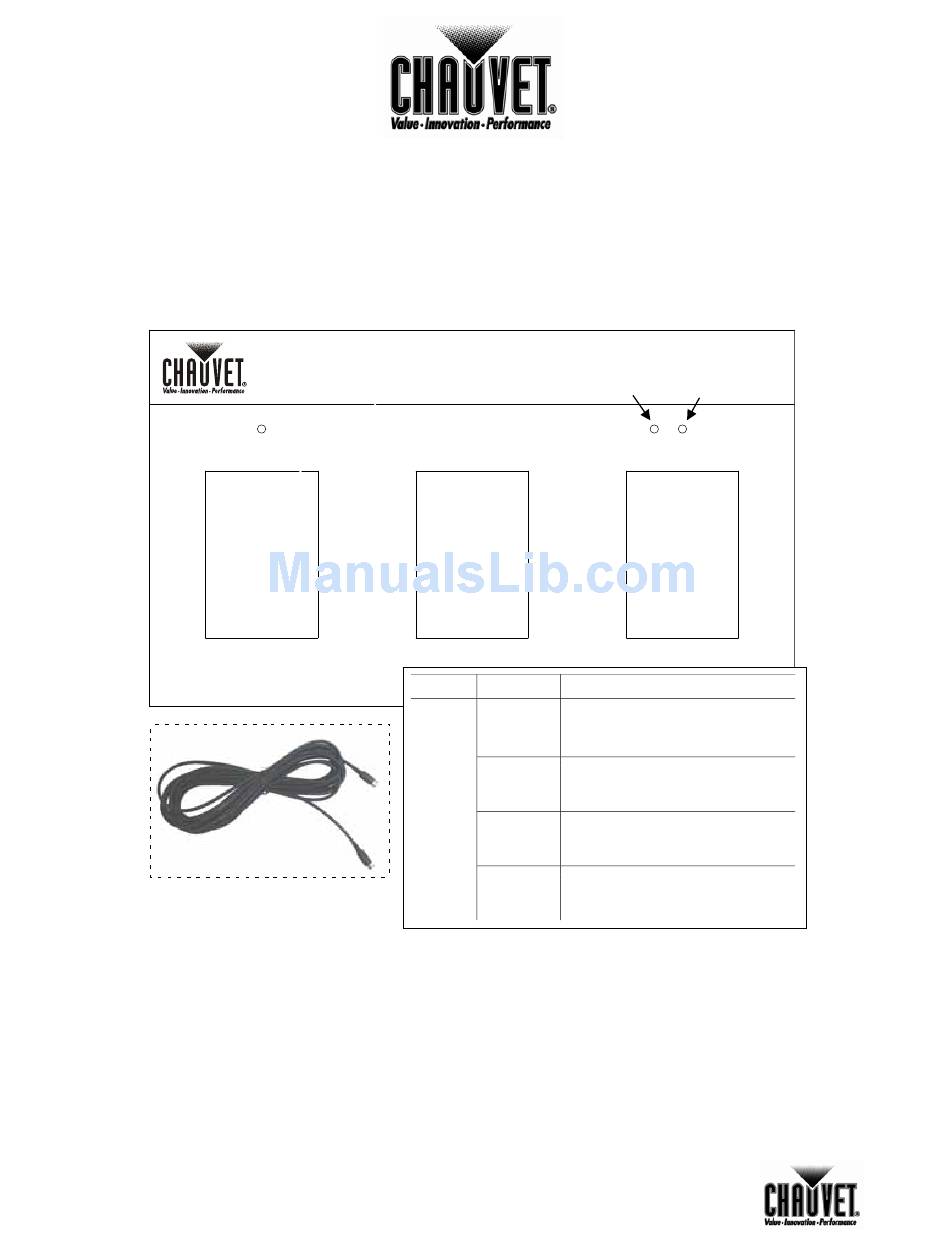

Chauvet TFX-SWF Quick Overview

The TFX-SWF is a compact, easy to operate, stand-alone foot controller for the Stage Wash™
950, 1550 and 1800. The TFX-SWF will activate built in programs in the unit.
TFX- WF
STAND-BY
NOTICE!
The TFX-SWF Foot Controller is used only in master/slave mode. Connect the 8-pin connector of
the foot controller into its respective connector on the first unit in the daisy chain. The table below
describes the functions of the TFX-SWF Controller.

TFX-SWF Specifications

Shipping: 8.97 x 5.31 x 1.57 in (228 x 135 x 40 mm)
Weight: 3.1 lbs (1.4 Kgs)
Linking cable: 10m 8-pin cable
th
CHAUVET, 3000 N 29 CT, Hollywood, FL 33020 U.S.A.
phone (954) 929-1115 fax (954) 929-5560
TFX-SWF Foot Controller User Manual
TFX-SWF
Stage Wash™ Foot Controller
Quick Overview
S
FUNCTION
Stand By

Blackout

LED 1
Mode Function

Auto

Fixtures will run built in programs
Led 1: Off
automatically
Led 2: Off

Audio

Fixtures will run built in programs to the
Led 1: Off
sound.
Led 2: On

Manual

Full/CB:
Led 1: On Hold: pedal to set to Full On
Led 2: Off Bump: Pedal to set dimming levels
Manual Full/CB:
Led 1: On Hold: pedal to set dimming levels
Led 2: On Release: Pedal to set to Full On
Technical Support
Address: Service Dept.
3000 N 29 th Ct, Hollywood, FL 33020 (USA)
Support Email: tech@chauvetlighting.com
Tel: (954) 929-1115 Press 4
Fax: (954) 929-5560 Attention Service
