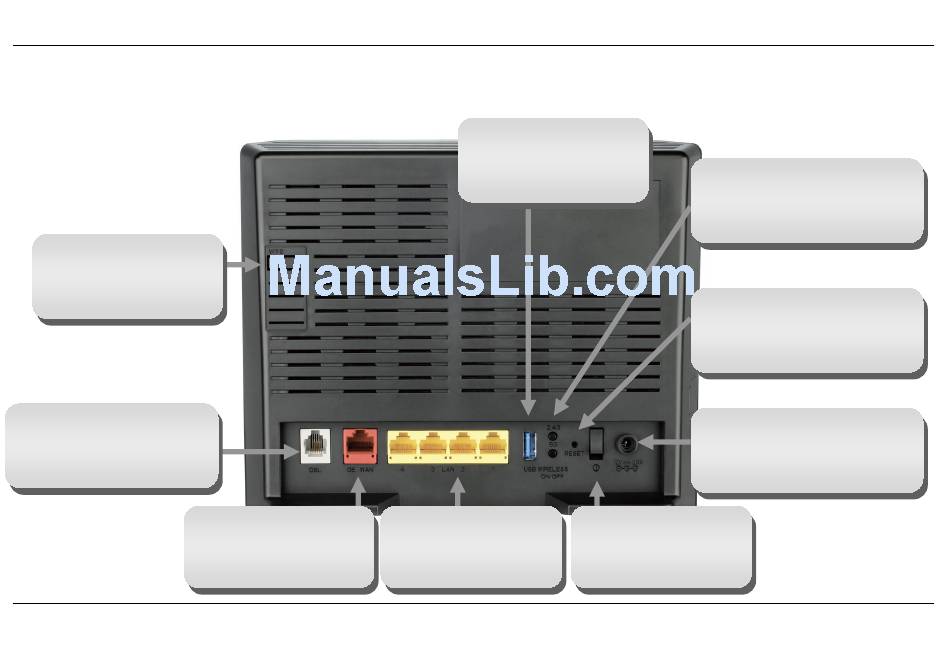

Hardware Overview – Connections
WPS H/W Push button
To pair-up the wireless
device which also support
WPS feature
ADSL port
Use the ADSL cable to
connect to the your telephone
line (RJ-11 port)
D-Link DSL-2880AL User Manual
Giga Ethernet WAN port
To connect the Router to
front end Bridge Modem
device Ethernet LAN
USB port
Use the USB port to
connect your USB device.
Giga Ethernet ports
To connect the Router to
your Ethernet LAN or
Ethernet devices
2.4G & 5G Wireless On/Off
switch button
Please press and hold on for 3
seconds to turn on/turn off.
Reset button
To manually reset, depress
button with the power on for
between ten and fifteen seconds
Power insert
Use the adapter shipped with the
Router to connect to power
source
Power button
Push in to power-on the
Router. Push again to
power-off the Router
