HP EliteDisplay E231 Specifications

23-inch led backlit monitor
Hide thumbs Also See for EliteDisplay E231:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: User Manual
QuickSpecs
Overview
1. Menu
2. Minus "-"
3. Plus"+"/Input
Boost Productivity with Dual Monitor Work Solution
(Multi-monitor support depends on your PC capability. Monitors and stands are sold separately.)
Opens, selects or exits the OSD menu.
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
If the OSD menu is on, press to navigate
forward through the OSD menu and
increase adjustment levels.
If the OSD menu is inactive, press to
activate the source button that chooses
the video signal input (VGA, DVI, or
DisplayPort).
DA - 14552 Worldwide — Version 6 — July 12, 2013

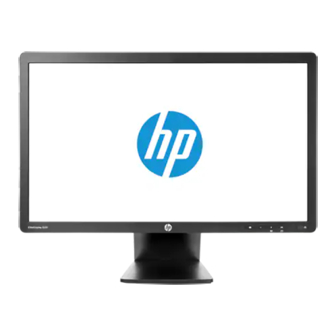

HP EliteDisplay E231 23-inch LED Backlit Monitor
4. OK/Auto
If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu
is inactive, press to activate the auto
adjustment feature to optimize the
screen image.
5. Power/Power
Turns the monitor on or off.
LED:
LED
fully powered = white;
sleep mode = amber;
sleep timer mode = flashing amber.
Use two E231 monitors with an HP Adjustable Dual Display
Stand (AW664AA) for a small footprint, high
productivity work solution.
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EliteDisplay E231 and is the answer not in the manual?

Questions and answers

Rosie
February 10, 2025

Hello, I'm trying to use Bluetooth on an EliteDisplay E231 HP desktop computer but when I try to connect it say sit isn't possible and gives me the option to 'turn on Bluetooth' (but I can't seem to find it. Or to 'update my driver via Windows Update'. Does this device support Bluetooth in the first place? Many thanks,

0
1 comments:
Mr. Anderson
February 11, 2025

No, the HP EliteDisplay E231 does not support Bluetooth connectivity.

This answer is automatically generated

0

Related Manuals for HP EliteDisplay E231

Summary of Contents for HP EliteDisplay E231

  • Page 1 (VGA, DVI, or DisplayPort). Boost Productivity with Dual Monitor Work Solution Use two E231 monitors with an HP Adjustable Dual Display Stand (AW664AA) for a small footprint, high productivity work solution. (Multi-monitor support depends on your PC capability. Monitors and stands are sold separately.) DA - 14552 Worldwide —...
  • Page 2 QuickSpecs HP EliteDisplay E231 23-inch LED Backlit Monitor Overview Models: C9V75AA E3F38AA (head only) DA - 14552 Worldwide — Version 6 — July 12, 2013 Page 2...

  • Page 3: Technical Specifications

    Color Gamut (typical)* Color Support** Can display up to 16.7 million colors *All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. ** With the use of FRC technology. On Screen Display Buttons or Switches Menu, Minus ("-"), Plus ("+") /Input Control, OK/Auto, Power...
  • Page 4 QuickSpecs HP EliteDisplay E231 23-inch LED Backlit Monitor Technical Specifications Default Color 6500 K Temperature Video/Other Inputs Plug and Play Input Connectors VGA (analog), DVI-D, DisplayPort (HDCP support on DVI-D and DisplayPort) Integrated USB 2.0 hub with (2) Downstream and (1) Upstream ports USB Cable (1)USB cable, 1,8 m (5.9 ft)

  • Page 5: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 6 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
  • Page 7 HP Integrated Work Designed specifically for use with the HP Compaq Small Form Factor (SFF) Desktop PC and a 17 to 24-inch (43.18 to 60.96 cm) diagonal monitor, the HP Center 2 – Small Form DA - 14552 Worldwide — Version 6 — July 12, 2013...
  • Page 8 Compatible with platforms using the VESA standard video modes. Recommended for use with HP products. Service and Warranty Protected by HP, including a 3 year standard limited warranty. Optional Care Pack Services are extended service contracts which go beyond your standard warranties. DA - 14552 Worldwide — Version 6 — July 12, 2013...
  • Page 9 ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency. The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws).
