Tripp Lite N784-001-ST Specifications

Model #: N784-001-ST

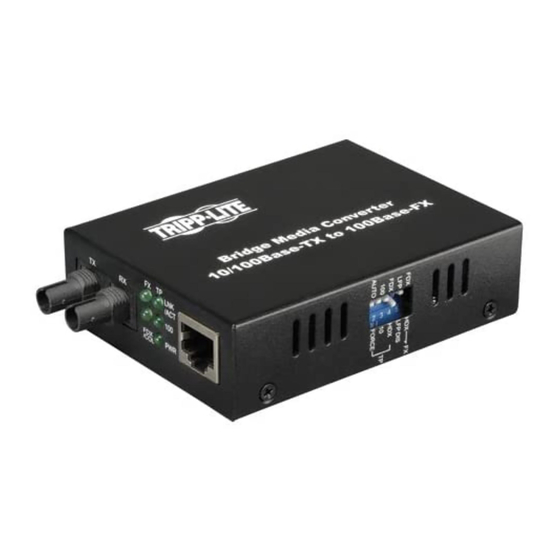

Fiber Optic - 10/100BaseT to 100BaseFX-ST Media Converter, 2km, 1300nm

Description

Tripp Lite's N784-001-ST, 10/100 Media Converter, is an economical way to extend the distance (up to 2Km) of network nodes by converting Cat5/6
UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed
automatically as well. Dip switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter, or USB connection
(switch selectable). Tripp Lite

Applications

Remote network nodes that are beyond the 100 meter distance limitation of UTP

Package Includes

10/100 Media Converter, UTP - ST
AC-DC Power Adapter ( 100-240V )
Owner's Manual

Features

Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
Auto MDI/MDI-X
UTP port auto-senses network speed
Switch selectable half or full duplex operation on the fiber port
Fiber lengths up to 2Km
2 Power Choices - AC-DC Adapter or USB
5 LED Function lights
Uses 62.5/125 or 50/125 Multimode cable
3.75"L x 2.75"W x 1"H
Wavelength: 1310nm
Supports Link Fault Pass-through (LFP) for easy tracing of network link failures

Specifications

OVERVIEW

Highlights

Convert UTP Ethernet to Fiber
Supports Auto MDI/MDI-X
Half- or Full-Duplex Operation
10/100 Auto-sensing
