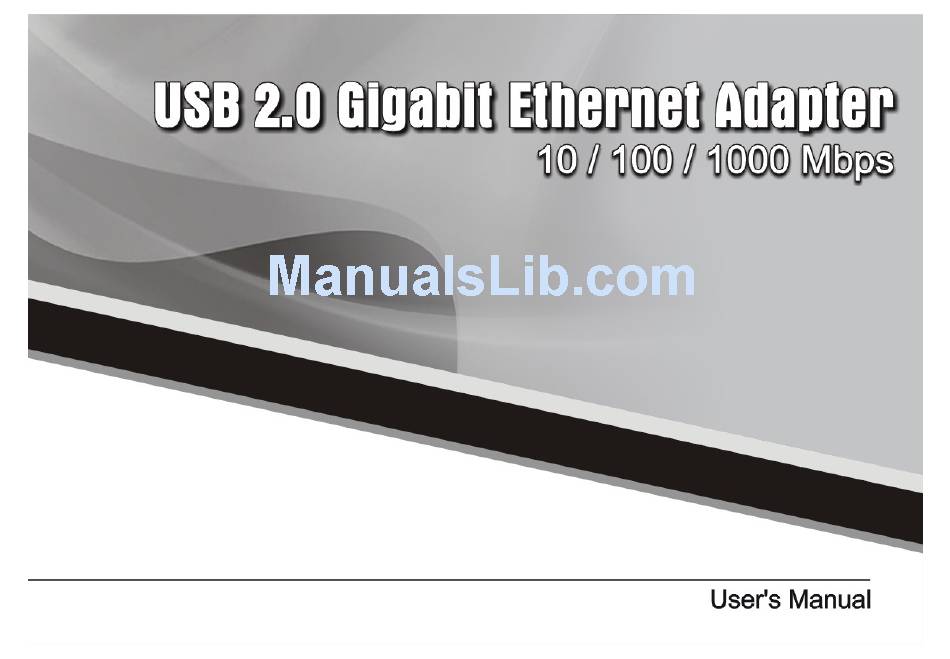

Sabrent USB-G1000 User Manual

Usb 2.0 gigabit ethernet adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-G1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sabrent USB-G1000

Summary of Contents for Sabrent USB-G1000

  • Page 2 Copyright Statement No part of this publication may be reproduced in any form by any means without the prior written permission. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction .......................4 Features ........................4 Package ........................4 Contents System Requirements ..................5 LED Status ........................5 2. Installation ........................5 Driver Installation .........................6 Verifying the Driver Installation in Windows ................12 Connecting to a Network ......................13 Configuring Network Settings .......................13 Windows XP/2000/Vista ....................13 Windows ME/98SE ......................15...

  • Page 4: Introduction

    1. Introduction This USB 2.0 Gigabit Ethernet adapter is a cost effective solution that converts a USB port into a 10/100/1000Base-T Ethernet port. It enables low cost and affordable Gigabit Ethernet network connection to desktop, notebook PC, and embedded system using popular USB ports. No need to purchase an expensive Gigabit network interface card and to spare a PCI or Cardbus slot, just using your existing USB ports and you can upgrade your network connection speed.

  • Page 5: Contents System Requirements

    System Requirements ◆Pentium III 800MHz or faster PC with USB 2.0 port ◆256 MB RAM or more ◆Windows_ 98SE/ME/2000/XP/Vista/Linux/Mac LED Status Color Status Description Link Green Link is not established. Link is established. 1000Mbps Green Link is not established Link to 10/100Mbps network. Link to 1000Mbps network.

  • Page 6: Installation

    2. Installation Driver Installation Note: DO NOT connect the Ethernet adapter to your computer before completing the driver installation. 1. Insert the provided CD into your CD-ROM drive. 2. Select Complete and click Next. The setup program will start automatically. If not, locate and double-click the Setup.exe file in the Driver folder to launch the setup program.
  • Page 7 3. Click Install to start the installation. 4. Click Finish when the installation is complete.
  • Page 8 5. Select Yes, I want to restart my computer now 6. After reboot, connect the Ethernet adapter’s USB and click Finish to reboot your computer. end to a free USB port of your computer. At this stage, different situations may occur according to your operation system.
  • Page 9 Windows XP / Vista 1. When the Found New Hardware Wizard screen 2 ． If compatibility message appears, just click appears, select Install the software automatically Continue Anyway. (Recommended) and click Next.
  • Page 10 3. Click Finish to complete the installation.
  • Page 11 Windows 2000 Windows ME Just wait the system to complete the installation. If Digital Signature Not Found window appears, just click Yes. Windows 98SE Upon your USB device connection, if the system prompts you for the Windows 98SE CD-ROM, click OK.

  • Page 12: Verifying The Driver Installation In Windows

    Important: Once the above copying files process is done, you must manually restart your computer to ensure the complete installation. Otherwise some services are not yet installed and the network adapter will not function properly. Verifying the Driver Installation in Windows To verify your Ethernet adapter installation, select Control Panel >...

  • Page 13: Connecting To A Network

    Connecting to a Network Now you can connect your network to the device’s LAN port. The LAN port supports Auto-MDIX feature. It eliminates the need to use crossover cables. Upon your connection, a message pops up in the notification area indicating your connection speed. The adapter’s AutoSense feature can automatically detect the network's maximum line speed.

  • Page 15: Windows Me/98Se

    Windows ME/98SE Right-click the Network Neighborhood icon on the desktop and select Properties. Then the Network window appears.

  • Page 16: Specifications

    3. Specifications Network Standards IEEE 802.3, 802.3u, and 802.3ab Data Bus USB 2.0 LED Indicators Link, 1000Mbps Integrates on-chip 3.3V to 2.5V voltage regulator and Power requires only single power supply: 3.3V Network Interface Female RJ45 jack supporting Auto MDIX Full Duplex 10BaseT, 100BaseTx, 1000BaseT Half Duplex...

  • Page 17: Regulatory Compliance

    4. Regulatory Compliance FCC Conditions This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
