Sabrent USB-AVCPT USB 2.0 VIDEO & AUDIO CAPTURE DVD MAKER
Driver Installation for Windows XP
Note: Windows Vista/7 32-64 Bit instructions are located below these instructions
1. Insert the software disc into your computer's CD drive.

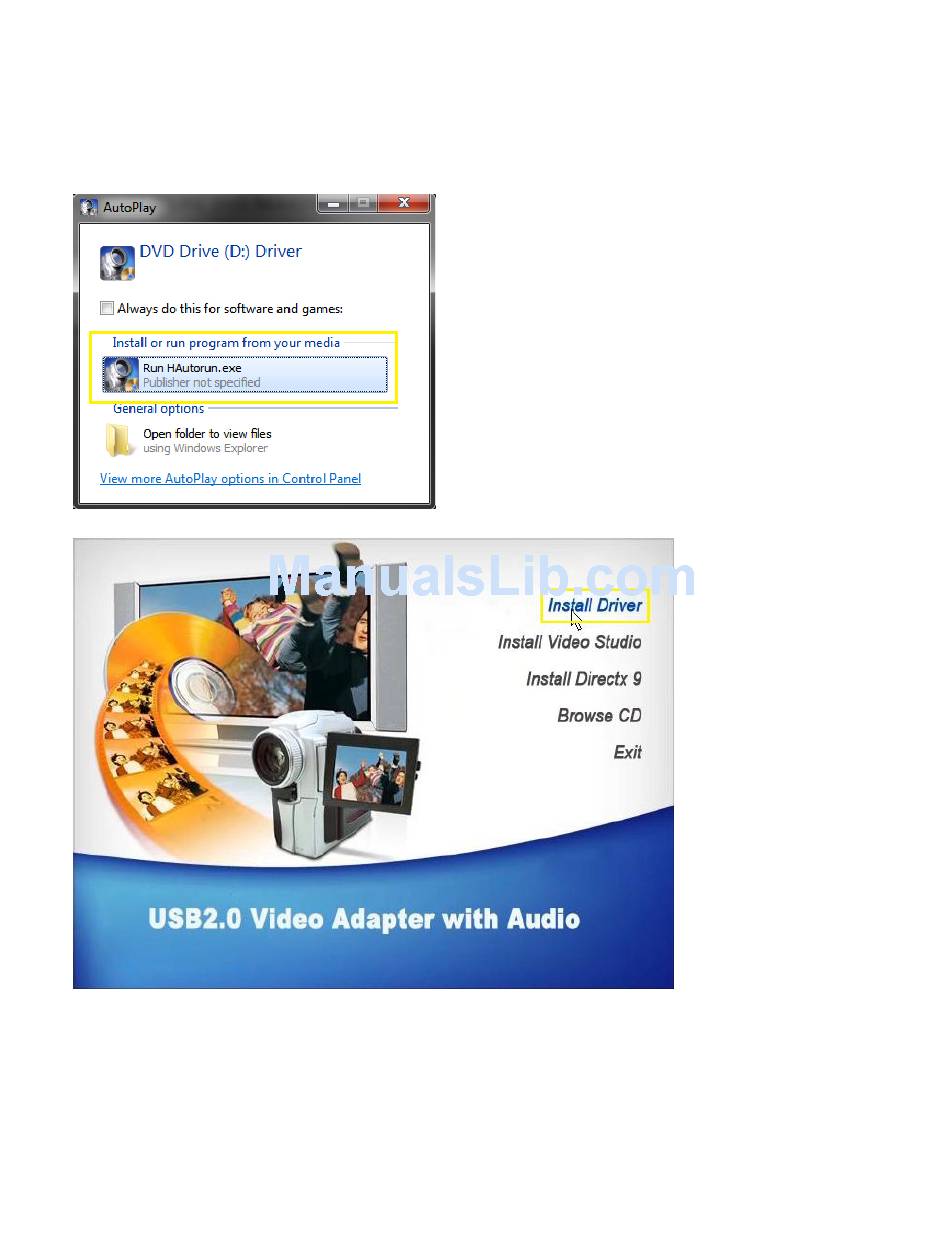

2. When prompted, Click on Run HAutorun.exe:
3. At the following prompt, Click Install Driver:
Advertisement
Related Manuals for Sabrent USB-AVCPT
Summary of Contents for Sabrent USB-AVCPT
- Page 1 Sabrent USB-AVCPT USB 2.0 VIDEO & AUDIO CAPTURE DVD MAKER Driver Installation for Windows XP Note: Windows Vista/7 32-64 Bit instructions are located below these instructions 1. Insert the software disc into your computer’s CD drive. 2. When prompted, Click on Run HAutorun.exe:...
- Page 2 4. At the following prompt, Click Install: 5. At the following prompt, Click on Install this driver software:...
- Page 3 6. At the following prompt, Click on Finish: 7. Select “Yes, I want to restart my computer now”, and click Finish: 8. Once restarted, plug the USB-AVCPT into a USB port.
- Page 4 9. The Driver Software Installation utility will finalize the installation of the device driver. (Note: This process can take a few minutes, so please be patient.) 10. Open the Device Manager and verify that the USB-AVCPT was correctly installed. (Note: Your installation may slightly vary based on the OS you are running) Driver Installation for Windows Vista/Windows 7 32/64 Bit 1.
- Page 5 4. Open a web browser and navigate to this URL to download the latest driver: http://sabrent.com/drivers/USB-AVCPT/USB-AVCPT-32bit-64bit-Vista-Win7.zip 5. Right-click the downloaded Zip file and extract the files: 6. Right-click on “Setup”, and click on “Run as administrator”: 7. At the following prompt, Click Install:...
- Page 6 8. Click Install: 9. Click Finish: 10. Click on the Start button, this will bring up the Start menu. In the search box (2.) type in Device Manager. In the list of results that appears, click Device Manager (3.): 11. Verify that there is an entry for STK1160 Grabber with a speaker icon, as well as an entry for USB Audio Interface:...
- Page 7 NOTE: Your unit may show up as an STK1150 or under a different name, as well as under Imaging Devices rather than Sound, Video and game controllers. Be sure to check both sections to verify your driver is installed with no exclamation point or question mark. Installing Ulead VideoStudio 1.
- Page 8 4. Select your language and click Next: 5. Click Next:...
- Page 9 7. Fill out your Name, Company, and Serial Number, and then Click Next. (Note: The serial number is located on the disc sleeve, and in a file on the disc. If you cannot find the serial number, navigate to this link: http://sabrent.com/support/knowledgebase.php?article=57)
- Page 10 8. Click Next: 9. Select the country you are in, then Click Next:...
- Page 11 10. Click Next: 11. Click “Yes, I want to restart my computer now”, then Click Next:...
- Page 12 12. Open the Ulead VideoStudio application. Click on VideoStudio Editor: 13. Click the “Capture” tab: 14. Click “Capture Video”: 15. Click OK: 16. Change the Source to “USB2.0 Grabber”:...
- Page 13 17. Click on Options, then Click on “Video and Audio Capture Property Setting”: 18. Change the Input Source to “Video Composite”, TV System to “NTSC”. Change the Audio Device to “Digital Audio Interface (USB Audio)”. Click on the checkbox labeled “Preview audio with USB device”. Click OK: 19.
- Page 14 Frequently Asked Questions: 1. The VideoStudio software is asking me for a serial number, but I cant locate it/any number I type in doesn’t work. What do I do? The serial number for the software should be located on the sleeve of the envelope where your disc was shipped in.
- Page 15 Locate the file named "SN" or "Serial Number". Your serial number is located in this file. 2. I just recorded a video file in AVI and the filesize is huge. Is there anything I can do to lower the size of the file? AVI format videos are usually very high quality, but also take up a large amount of data (sometimes near 1 GB a minute or so).
- Page 16 3. Click on the Capture tab, and click on Advanced: 4. Click on User Defined 1, underneath Templates, and select DVD NTSC (720x480). Click OK:...
- Page 17 5. Click OK: 3. I’m trying to use the device with an application, but I cant select it/it doesn’t work, what can I do? Unfortunately this device was designed with Ulead VideoStudio in mind, meaning this program will give you the best compatibility and usage.
