A M P L I F I E R S
I N S T A L L A T I O N
G U I D E
SI-

Advertisement

Table of Contents
loading

Related Manuals for Niles SI-1650

Summary of Contents for Niles SI-1650

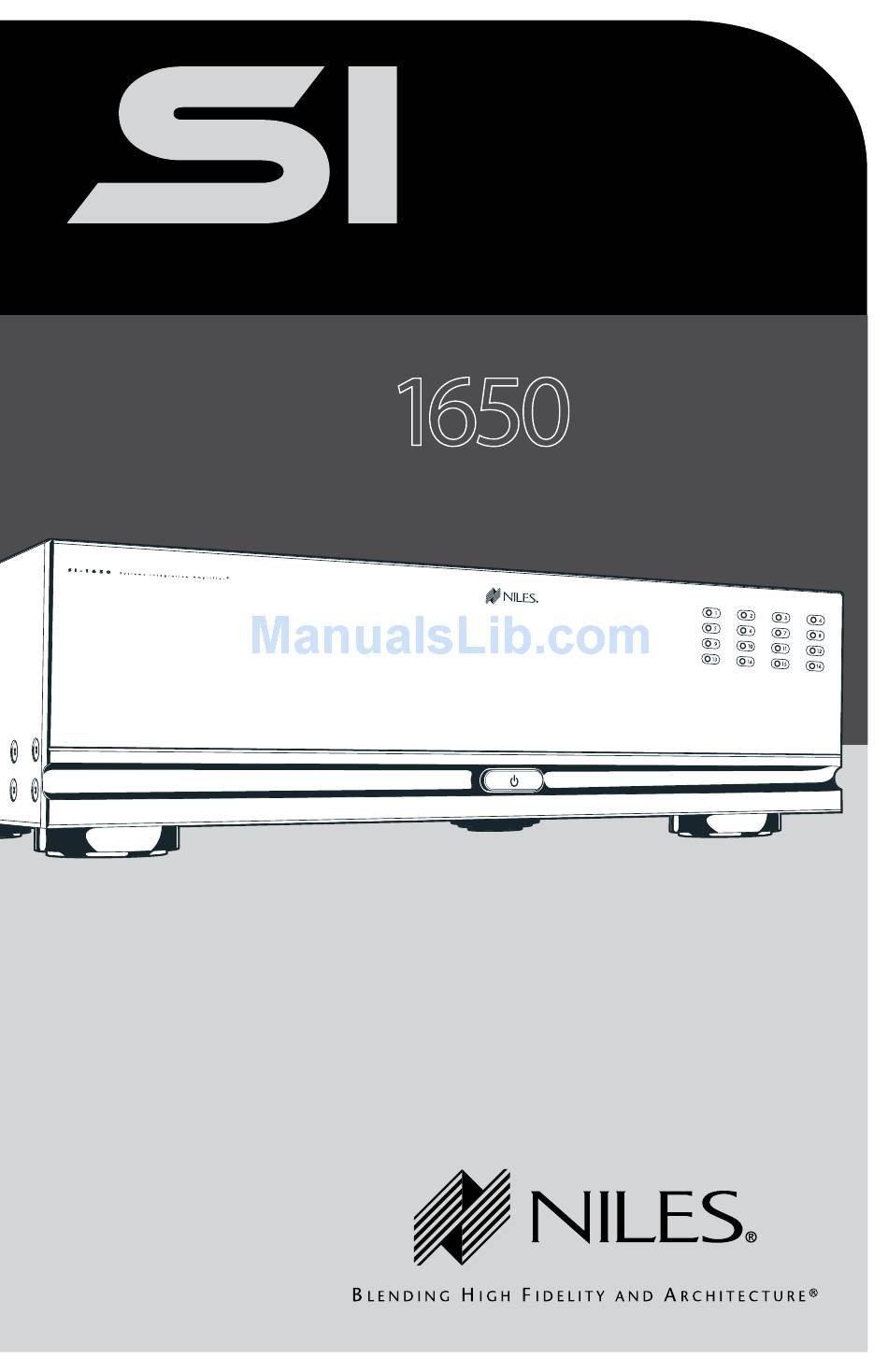

  • Page 1 A M P L I F I E R S I N S T A L L A T I O N G U I D E...

  • Page 2: Table Of Contents

    CONGRATULATIONS! Thank you for purchasing the Niles SI-1650, one of the most versatile and powerful multi-channel amplifiers ever offered. Like all Niles products, the SI-1650 is built to the highest standards of quality and reliability. With proper installation and operation, you’ll enjoy years of trouble-free use.
  • Page 3 “Mains Plug”) is used as the disconnect device and shall remain accessible and operable at all times. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...

  • Page 4: Introduction

    INTRODUCTION We call the SI-1650 a Systems Integration Amplifier because it is a power amplifier specifically designed to solve the problems of interfacing with different brands and models of equipment, different acoustic environments in different rooms, and different kinds of applications: home theater, stereo, and background music.

  • Page 5: Features And Benefits

    Signal to noise ratios and cross-talk are equivalent to a professional mixing board found in a recording studio. With the SI-1650, the music playing in the living room cannot interfere with the music in the den.
  • Page 6 TURN-ON MODES The SI-1650 features three turn-on modes: 1. Manual turn-on via the front panel switch, 2. Audio Sense and 3. External Voltage trigger. Audio Sense and External Voltage trigger modes enable you to configure the SI-1650 to interface with any kind of system and turn on automatically.

  • Page 7: System Design Basics

    To achieve different volumes and greater convenience in different rooms within a zone, individual volume controls can be used. Niles makes volume controls in various styles and colors. When designing your system, take into account who will use the system and when they will use it.
  • Page 8 SYSTEM DESIGN BASICS CONTINUED... A MultiZone system as shown in Figure 2, offers the household more flexibility. For instance, a family might have their family room wired for surround sound and their living room wired for background music. In a two zone system, the children can watch TV in surround sound while Mom and Dad are reading the paper and enjoying background music in the living room.

  • Page 9: System Design Considerations

    SYSTEM DESIGN CONSIDERATIONS CABLE AND WIRE Because the SI-1650 has many connections on the rear panel (see page 32 & 33), it is important that you correctly label all of the input cables and speaker wires. Label the cables and wires with their destination or source, rather than the SI-1650 terminal to which they are connected.
  • Page 10 AREAS THAT REQUIRE MORE VOLUME AND POWER All of the odd numbered amplifier channels of the SI-1650 (channels 1, 3, 5, 7, 9, 11, 13, and 15) include a power output of 50 or 100 watts that is selected using a web based IP Configuration utility.
  • Page 11 SI-1650 is critical when driving an 8 ohm load with amplifier channels configured to 100 watts. If the SI-1650 is not properly ventilated, the protection circuits may activate and shut off the channel at higher volume levels (for more information on proper amplifier placement, see Installation Considerations on page 29).

  • Page 12: Applications

    SI-1650 BusMatrix™ you dedicate a robust 50 watts to each speaker in your multi-room system. The SI-1650 has an IP Configuration and Setup tool to adjust volume and tone for each channel individually so you can compensate for architectural differences that create sonic imbalances.
  • Page 13 USING A DUAL-ZONE RECEIVER FOR TWO LISTENING ZONES Most of today’s Audio Video Receivers include a second zone preamplifier output to create a second listening zone. Using this output with the SI-1650 BusMatrix™ input provides amplification for multiple rooms within a second listening zone as shown in Figure 4.
  • Page 14 BusMatrix™ input signals are then routed to all the amplifier channels via the IP Configuration and Setup Tool. All eight rooms connect to the SI-1650 in Zone #6 with their own room volume control for adjusting room volume levels individually.
  • Page 15 In the ultimate MultiZone system, you connect individual stereo preamplifiers (or a single component multi-zone/multi-source preamplifier) to the BusMatrix™ inputs of SI-1650. These independent input signals are then routed to the appropriate amplifier channels via the IP Configuration and Setup Tool creating completely independent listening zones.

  • Page 16: Configuring Your System

    CONFIGURING YOUR SYSTEM Because the SI-1650 offers so many configuration possibilities it is important to plan carefully before you install it. Draw a block diagram of your system and use the Configuration Worksheet on page 41 to record how you plan to connect your SI-1650.
  • Page 17 DIRECT ETHERNET CONNECTION A direct Ethernet connection is made by connecting the RJ-45 network connector of a PC directly to the RJ-45 network connector on the rear panel of the SI-1650. Use the numbered steps below to establish network communication between a PC and the SI-1650 when using a direct wired Ethernet connection.
  • Page 18 2. Use the Network Settings Main Selection instructions located in the on the next page of this manual to set an IP address compatible with the local area network. 3. Connect the RJ-45 network connector on the rear panel of SI-1650 to the local area network router or Ethernet Switch.

  • Page 19: Configuration And Setup Tool

    Ethernet or local area network connection is made, use the web browser included with your laptop, PC, iPad, tablet or smartphone to log into the web server in the SI-1650. Enter the current IP address of the SI-1650 into the URL line of your web browser.
  • Page 20 CONFIGURATION AND SETUP TOOL AMPLIFIER CONFIGURATION MAIN SELECTION Choose the Amplifier Configuration main selection and the Input/Channel Names sub selection page is displayed. The Channel Power, Turn On Mode and Signal Routing sub selections are also displayed for selection and configuration. AMPLIFIER CONFIGURATION MAIN SELECTION –...
  • Page 21 1. Select either 100 watts or 50 watts for each of the odd numbered channels. 2. Select Save to save the Channel Power settings to the amplifier’s memory. Default Setting: 50W (All channels on) FIGURE 10 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...
  • Page 22 CONFIGURATION AND SETUP TOOL AMPLIFIER CONFIGURATION MAIN SELECTION – TURN ON MODE SUB SELECTION Choose the Turn On Mode sub selection and the Turn On Mode page is displayed. Refer to page 28 for more details on the three available turn on modes.
  • Page 23 (e.g. inputs 1 through 16, inputs 1+2, inputs 3+4, inputs 5+6, etc.). 2. Select Save to save Signal Routing to the amplifier’s memory. FIGURE 12 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...
  • Page 24 CONFIGURATION AND SETUP TOOL EQUALIZATION MAIN SELECTION Choose the Equalization main selection and the Manual EQ Presets page is displayed. The Room EQ sub selection is also displayed for selection and configuration. EQUALIZATION MAIN SELECTION – ROOM EQ PRESETS Choose the Room EQ Presets sub-selection and the Room EQ Presets page is displayed.
  • Page 25 5. Set Flat sets the selected channel to the default Flat Room EQ Preset and volume at 0dB. 6. Select Save to save Manual EQ settings to the amplifier’s memory. FIGURE 14 NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...
  • Page 26 CONFIGURATION AND SETUP TOOL UTILITIES MAIN SELECTION Choose the Utilities Main Selection and the Project Information page is displayed. The Generate Report, Create Backup File and Restore From File sub selections are also displayed for selection and use. UTILITIES MAIN SELECTION – PROJECT INFORMATION SUB SELECTION Choose the Project Information sub selection and the Project Information page is displayed.
  • Page 27 UTILITIES MAIN SELECTION – CREATE BACKUP FILE SUB SELECTION Select this option to create a backup SI-1650 configuration file with all the current settings of the SI-1650 you are connected to. Click Save then use the Save As window to browse for a location for the configuration file, enter a unique name and select Save.

  • Page 28: Installation Considerations

    INSTALLATION CONSIDERATIONS TURN-ON MODES Automating the turn-on of your SI-1650 is one of the easiest steps when installing it in a distributed system. However, do not plug the main power cord into the switched AC outlet of your preamplifier or receiver. The high power design of the SI-1650 requires large amounts of current from its AC power source.
  • Page 29 The amplifier is off when there is no 3-24V AC or DC voltage detected at the trigger input. Voltage triggers can be supplied by Niles automated switchers, some video projectors, some surround sound processors, or something as simple as a 12 volt AC wall adapter plugged into the switched outlet of your stereo receiver.
  • Page 30 INSTALLATION CONSIDERATIONS PLACEMENT Place the SI-1650 on a flat, level surface like a table or shelf. It should be placed upright so that its weight rests on the unit’s four feet. PLACING THE WEIGHT OF THE AMPLIFIER ON THE REAR OR FRONT PANEL FOR EVEN AN INSTANT WILL RESULT IN DAMAGE TO THE AMPLIFIER’S CONNECTORS AND...

  • Page 31: Installation

    5 Niles amplifiers you will need a Niles AVDA-3 buffered distribution amplifier. If your preamp has a vacuum tube output stage, you must use a Niles AVDA-3 to drive more than a single SI-1650.

  • Page 32: Front And Rear Panel Details

    Front panel “Master Power” switch turns off the entire amplifier, including the Turn-On circuitry Power LED illuminates to confirm the amplifier is connected to a live AC power outlet and that the master power switch is on. Factory Default 3.5 mm Jack for Reset Switch 3-24V AC/DC Trigger Output INPUT...
  • Page 33 Fuse: 100-120V: T15AL, 250V ATTENTION: remplacer 220-240V: T10AL, 250V CLASS 2 WIRING uniquement avec le même type et calibre du fusible. Removable 2-prong 16 gauge 6’ AC power cord. NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...

  • Page 34: Speaker Wire Connections

    If you label the wires for their destination, rather than which 1. Label all wires. terminal of the SI-1650 they are connected to, it will be easier to reconfigure your system in the future. A. Split the speaker wire insulation so that at least two inches 2.
  • Page 35 The control output has a maximum current to control. capability of 150 mA. 2. Connect the 3.5 mm Jack to the control output Niles makes an accessory cable plug maintaining proper polarity FG00724. (tip = +). NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...

  • Page 36: Operation

    Calibrate your system volume levels with the steps outlined below: 1. Lower all of the SI-1650 level controls to the minimum volume position. If there are any other amplifiers in the system, lower their level controls to the minimum (all of the amplifiers in your system must have level controls).

  • Page 37: Cleaning And Maintenance

    Even at levels like that, the SI-1650 will sound clear and clean. However, it requires more power to achieve a reasonable volume of sound in a large room than it does in a small room.

  • Page 38: Troubleshooting Guide

    TROUBLE-SHOOTING GUIDE When there is a problem consult this guide first. If the problem persists, or you have additional questions, call your local Niles dealer or call Niles Technical Support at 1-800-289-4434. The most common problems relate to hook up. Have your configuration worksheet handy when you call.
  • Page 39 CUSTOMER SERVICE HOURS 8:00 AM to 5:30 PM PT TECHNICAL SUPPORT HOURS 6:00 AM to 4:00 PM PT ON THE WEB w w w.nilesaudio.com EMAIL TECHNICAL SUPPORT techsupport@nilesaudio.com EMAIL FOR PRODUCT SUGGESTIONS productsuggestions@nilesaudio.com NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...

  • Page 40: Specifications

    SPECIFICATIONS Detail SI-1650 Design Principle Digital, high current bridgeable multi-channel amplifier Continuous 50 watts RMS per channel into 8 Ohms , Average Power 100 watts RMS per channel into 4 Ohms Output Continuous Average Power 100 watts RMS per channel into 8 Ohms...

  • Page 41: Configuration Worksheet

    Low Pass o High Pass o Room EQ Channel 15 Name Signal Route High Pass o Room EQ Power: o 50W o 100W Loudness o On o Off Low Pass o Channel 16 Name NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...

  • Page 42: Warranty

    NILES dealer (with proof of purchase – claims made without proof of purchase will be denied) who will test the product and if necessary, forward it to NILES for service. If there are no authorized NILES dealers in your area, you must contact NILES to receive a factory Return Authorization Number.
  • Page 43 16 CHANNEL, FULLY CONFIGURABLE POWER AMPLIFIERS NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 1-760-710-0992...
  • Page 44 1 - 8 0 0 - B U Y - H I F I – w w w . n i l e s a u d i o . c o m ©2013 The CORE Brands, LLC. All rights reserved. Niles and the Niles logos are registered trademarks of CORE Brands, LLC.
