First Things First
Under Cabinet Mounting
Instructions
Tools Required
• Drill and
1
/
" Drill Bit
4
• Ruler or Tape Measure
• Nail or Awl
• Scissors
• Screwdriver - Phillips
• Countersink (Optional)
• Masking Tape
• Safety Glasses

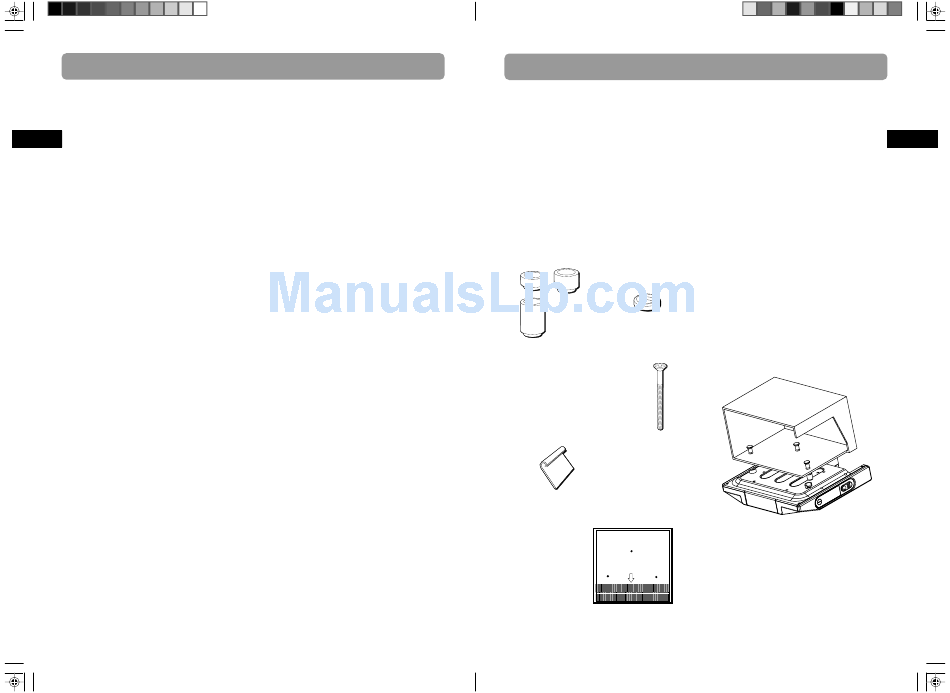

Parts Packed with your Unit
Spacers
3 -
1
/
"
4
3 - Washers
3 -
1
/
"
2
3 - 1"
USE:
3 - 2
3
/
" Phillips head screws
4
or
3 - 1
5
/
" Phillips head screws
8
2 - Cord hooks
1 - Mounting
template
If no overhang, front edge of templet
should be even with front edge of cabinet.
Le bord avant du gabarit doit etre
de niveau avec le bord avant de l'amoire
FRONT
AVANT
Fold guidelines for cabinet with overhang.
Pliere le long des lignes pour les armoirs a rebord en saillie
Before Mounting
Empty contents of the selected cabinet under
which the unit will be mounted and thoroughly
clean the underside of the cabinet to remove any
grease residue which might be present.
We recommend the unit be mounted at the front
edge of the cabinet.
Important: For secure mounting, the screws
must go into the radio to a depth of at least
3
/
".
8
If the overall length from the bottom of the
cabinet shelf to the bottom of the overhang is
more than 1
3
/
", then a wood shim will be
4
necessary. A shim can be made from a sheet of
plywood, using the Template to locate the central
lines for drilling the
1
/
" mounting holes. The
4
shim can be located between the cabinet shelf
bottom and spacers. Make sure the wood is at
least as thick as the excess over 1
3
/
" If a shim is
4
necessary, longer screws are required. Longer
screws (Type #10-32) are available at most local
hardware stores.
Cut out the Template on the line indicated. The
Template size and screw hole positions are
identical to the top of the clock radio.
EN
