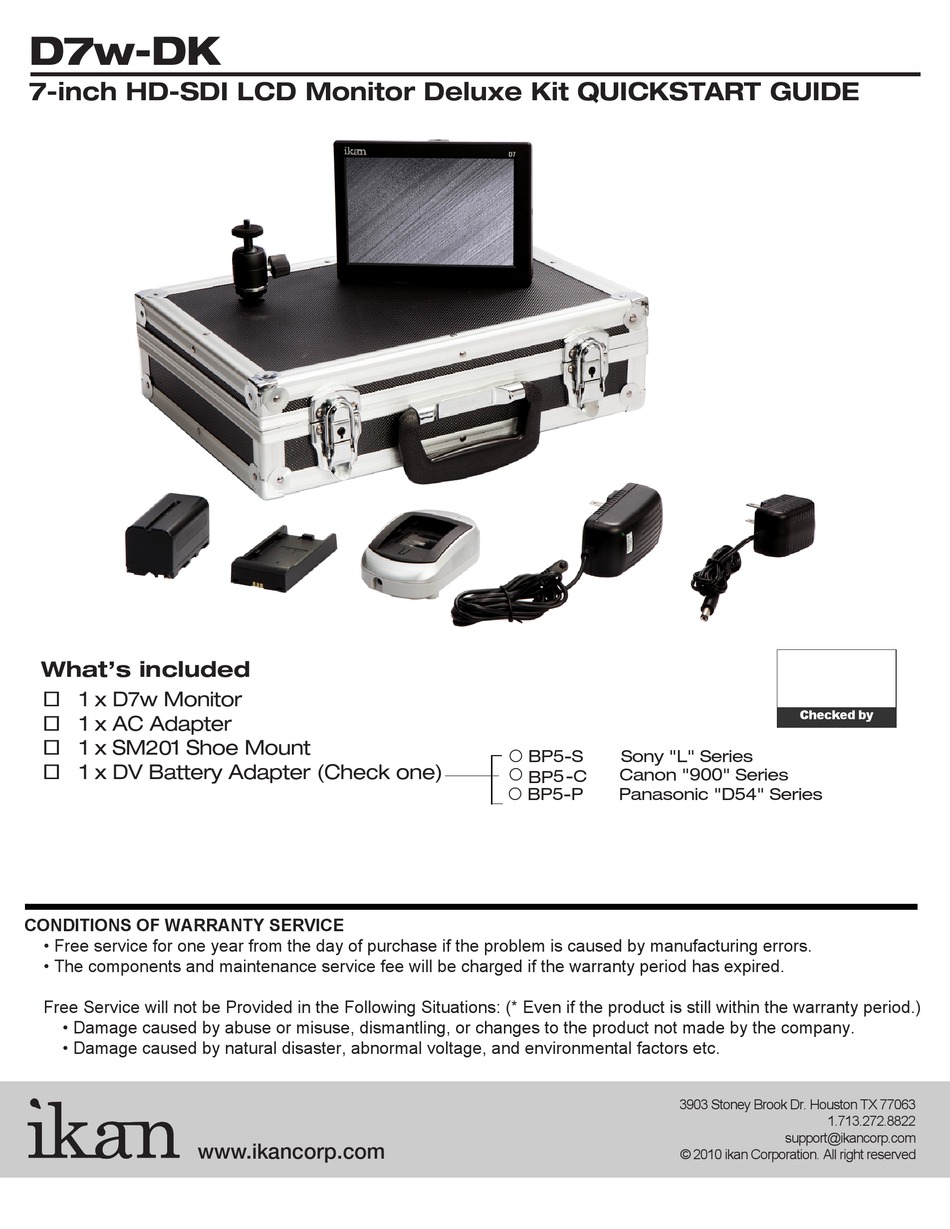

D7w-DK
7-inch HD-SDI LCD Monitor Deluxe Kit QUICKSTART GUIDE
What's included
1 x D7w Monitor
1 x AC Adapter
1 x SM201 Shoe Mount
1 x DV Battery Adapter (Check one)
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
BP5-S
Sony "L" Series
Canon "900" Series
BP 5-C
BP5-P
Panasonic "D54" Series
3903 Stoney Brook Dr. Houston TX 77063
© 2010 ikan Corporation. All right reserved
Checked by
1.713.272.8822
