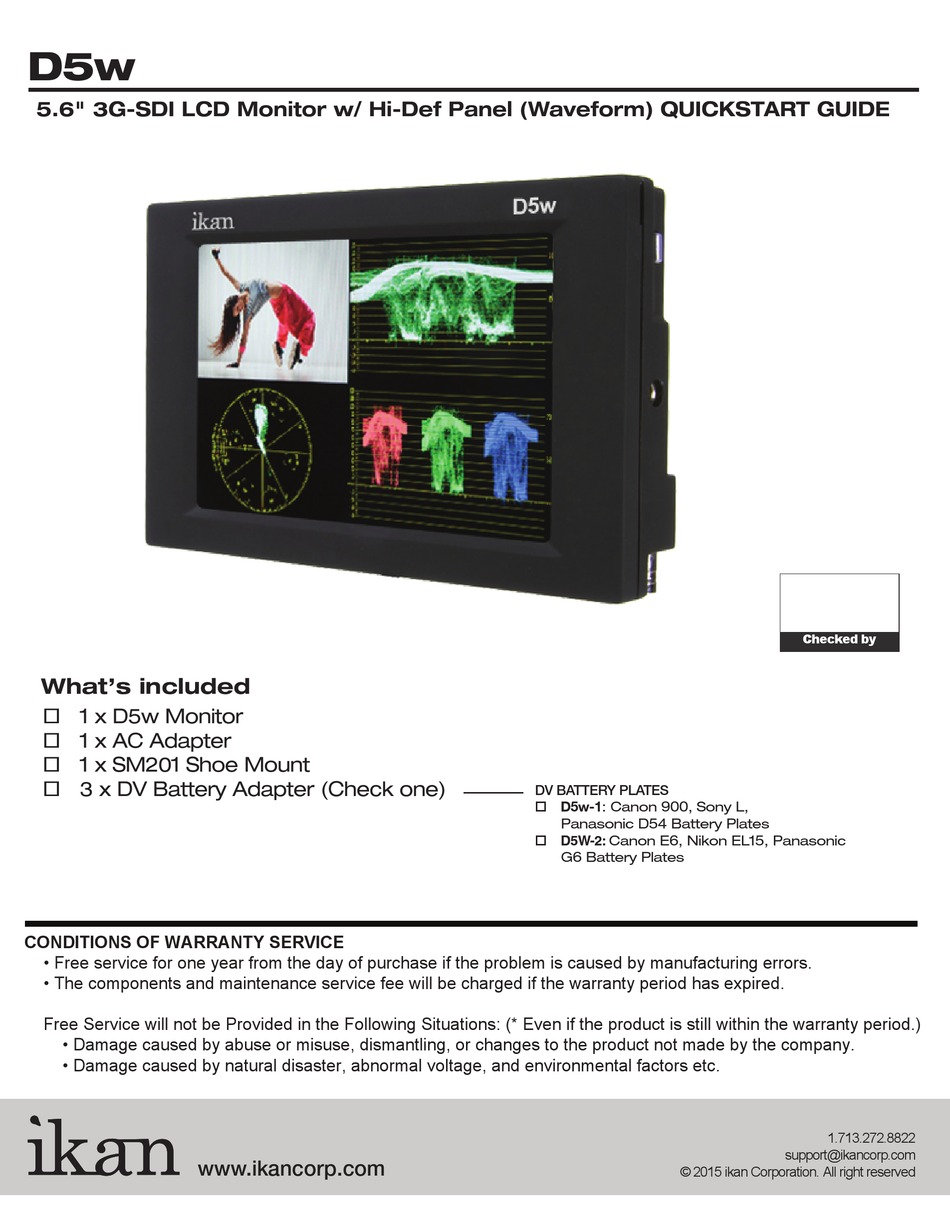

5.6" 3G-SDI LCD Monitor w/ Hi-Def Panel (Waveform) QUICKSTART GUIDE
What's included
 1 x D5w Monitor
 1 x AC Adapter
 1 x SM201 Shoe Mount
 3 x DV Battery Adapter (Check one)
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
DV BATTERY PLATES
 D5w-1: Canon 900, Sony L,
Panasonic D54 Battery Plates
 D5W-2: Canon E6, Nikon EL15, Panasonic
G6 Battery Plates
© 2015 ikan Corporation. All right reserved
