VXF7-DK
VXF7 Field Monitor Deluxe Kit

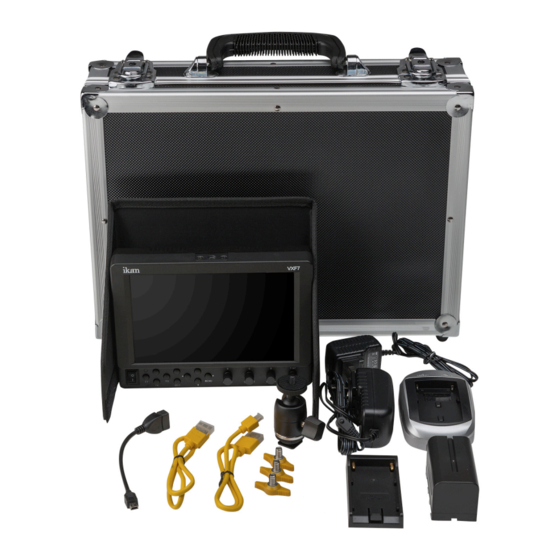

What's Included
1 x VXF7 Monitor
1 x AC Adapter
1 x Camera Shoe Mount (SM-201)
1 x Screen Cleaning Wipe
1 x Screen Protector
1 x Sunhood
1 x DV Battery Plate
1 x DV Battery
1 x DV Battery Charger
1 x Standard to Mini Cable (1.5 ft)
1 x Standard to Micro HDMI Cable (1.5 ft)
1 x Hard Case
www.ikancorp.com
support@ikancorp.com
QUICKSTART GUIDE
Sony "L" Series
Canon "900" Series
Canon "E6" Battery
Panasonic "D54" Series
Nikon "EL15" Series
© 2016 ikan Corporation. All rights Reserved
713.272.8822

Advertisement

loading

Related Manuals for Ikan VXF7-DK

Summary of Contents for Ikan VXF7-DK

  • Page 1 1 x DV Battery Charger Panasonic “D54” Series 1 x Standard to Mini Cable (1.5 ft) Nikon “EL15” Series 1 x Standard to Micro HDMI Cable (1.5 ft) 1 x Hard Case www.ikancorp.com 713.272.8822 support@ikancorp.com © 2016 ikan Corporation. All rights Reserved...

  • Page 2: Getting Started

    VX7c Getting Started Front 7” 3G -SDI Monitor w/ Signal Conversion QUICKSTART GUIDE Front view VX7c VXF7 Input TINT MENU BRIGHT SHARPNESS CHROMA CONTRAST ASPECT/ EXIT 1 2 3 4 5 6 7 8 Power Switch Button Power ON / OFF Toggle left in MENU setting mode Power Indicator Light Buttons...
  • Page 3 ¼-20 Threaded insert (on three sides of monitor) OUT: : Input signal through-out terminal Mounting Monitor HDMI terminal DV Battery Plate Slot IN : HDMI input terminal Mounting ikan DV battery plate OUT: : Input signal through-out terminal 3G-SDI DC 12V-24V power terminal XLR DC Connection *NOTE*...
  • Page 4 Configuration of Setting Menus Guides Toggle between the following: 80%, 90%, 15:9, 4:3, 1.5:1, 2:1, 2.35:1 Crosshair Activates Crosshair on center of screen. Grids Activates grids on the screen to assist with framing. Brightness: 0-100 Video Config Contrast: 0-100 Chroma: 0-100 Sharpness: 0-100 Tint: 0-100 Color Temperature...

  • Page 5: Function Setup

    Function Set Up Displays a crosshair on the center of the screen. Function Set Up 1-4 Guides The DH5e is equipped with Monochrome Peaking features, which highlight Crosshair the desired focus area in a bright, red outline. The operator adjusts the focus Peaking control until the red indicator outlines on the desired area are razor sharp, Underscan...

  • Page 6: Specifications

    Specifications Aspect Ratio 16:10 Inputs 3G-SDI, HDMI, Component, Composite Backlight Outputs 3G-SDI, HDMI, Component, Composite Brightness 300 cd/m2 Pixel Pitch 0.07875 x 0.07875mm Build Material Heavy Duty Plastic Power Consumption Color Depth Resolution 16.7 Million 1920 x 1200 Color System PAL / NTSC / SECAM (Auto-Detected) Response Time 20ms...

  • Page 7: Learn More

    (*Even if the product is still within the warranty period.) • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2016 ikan Corporation. All rights reserved...
