Ikan VX7e Deluxe Kit Quick Start Manual

Q S
UICK TART
INTRODUCTION
Thank you for purchasing the ikan VX7e HD-SDI LCD Monitor. We know that you will be satisfied with our "V" series
monitors. Please visit www.ikancorp.com for more information on our current and future products including our award-
winning fluorescent studio lights and light accessories.
PACKAGE INCLUDES
 VX7e Monitor
 AC Power Adapter
 Camera Shoe Mount
 DV Battery, Battery Plate & Charger (Check One)
 Metal Case
MONITOR DIAGRAMS

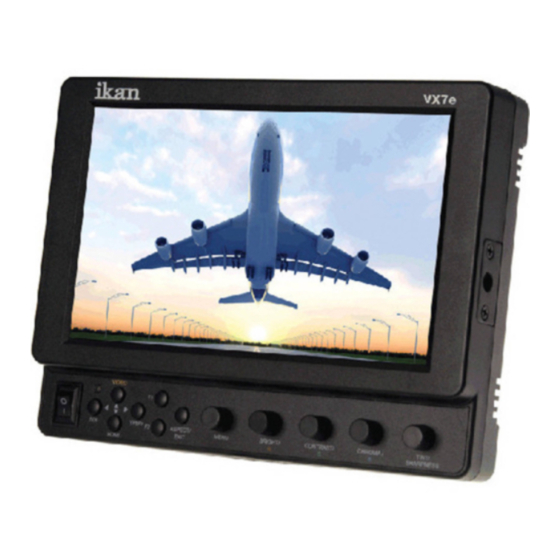

Front view
ON OFF
1 2
Power Switch
1
Power ON / OFF
Power Indicator Light
2
When the power is ON, the LED green lights up.
VIDEO Selection Switch
3
Video input
4 SDI Selection Switch
Serial digital interface input (HD/SD compatible)
5
HDMI Selection Switch
High-Definition Multimedia Interface input
YPbPr Selection Switch
6
Analog component or RGB input
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. support@ikancorp.com © 2010 ikan Corporation. All right reserved. www.ikancorp.com
G
UIDE /
VX7e Deluxe Kit
VIDEO
F1
YPbPr
SDI ASPECT/
MENU
EXIT
HDMI F2
3 4 5 6 7 8 9
 BP2-S Sony "L" Series
 BP2-C Canon "900" Series
 BP2-P
Panasonic "D54" Series
VX7e
BRIGHT/ CONTRAST/ CHROMA/ TINT/
R SHARPNESS
G B
1 0 11 12 13
F1 and F2 Buttons
7
Function key actions are selected in the menu.
ASPECT/EXIT Selection Button
8
Aspect: 16:9, 4:3, Full
In MENU, it is to exit the menu.
MENU Knob
9
It is to display menu, select settings, and adjustments.
(Push the knob to select, turn the knob to adjust settings.)
1 0 BRIGHT/R Knob
1: Adjust brightness 0 - 60 (30)
2: Adjust red channel
11
CONTRAST/G Knob
1: Adjust contrast 0 - 60 (30)
2: Adjust green channel
CHROMA/B Knob
12
1: Adjust chroma 0 - 60 (30)
2: Adjust blue channe
13
TINT/SHARPNESS Knob
1: Adjust tint 0 - 60 (30)
2: Adjust sharpness 0 - 60 (30)
Checked by
User programmable function buttons.
For quick access, the user may program
the F1 and F2 buttons to enable frequently
accessed monitor features.
