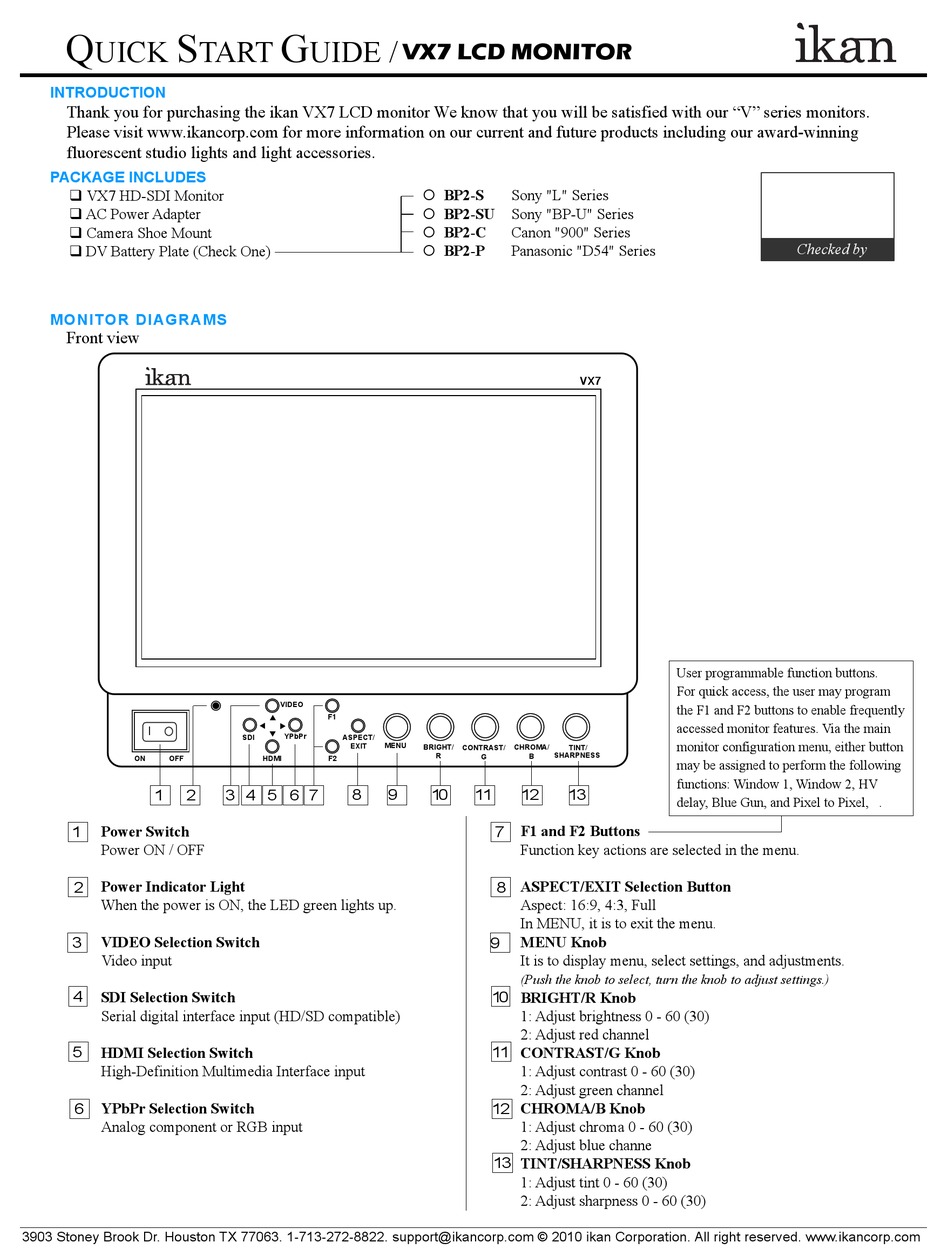

Ikan VX7 Quick Start Manual

Q S
UICK TART
INTRODUCTION
Thank you for purchasing the ikan VX7 LCD monitor We know that you will be satisfied with our "V" series monitors.
Please visit www.ikancorp.com for more information on our current and future products including our award-winning
fluorescent studio lights and light accessories.
PACKAGE INCLUDES
 VX7 HD-SDI Monitor
 AC Power Adapter
 Camera Shoe Mount
 DV Battery Plate (Check One)
MONITOR DIAGRAMS
Front view
ON OFF
1 2
Power Switch
1
Power ON / OFF
Power Indicator Light
2
When the power is ON, the LED green lights up.
VIDEO Selection Switch
3
Video input
4
SDI Selection Switch
Serial digital interface input (HD/SD compatible)
5 HDMI Selection Switch
High-Definition Multimedia Interface input
YPbPr Selection Switch
6
Analog component or RGB input
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822. support@ikancorp.com © 2010 ikan Corporation. All right reserved. www.ikancorp.com
G
UIDE /
VX7 LCD MONITOR
VIDEO
F1
YPbPr
SDI ASPECT/
MENU
EXIT
HDMI F2
8 9
3 4 5 6 7
 BP2-S Sony "L" Series
 BP2-SU
Sony "BP-U" Series
 BP2-C Canon "900" Series
 BP2-P
Panasonic "D54" Series
VX7
BRIGHT/
CONTRAST/ CHROMA/ TINT/
R SHARPNESS
G B
1 0 11 12 13
F1 and F2 Buttons
7
Function key actions are selected in the menu.
ASPECT/EXIT Selection Button
8
Aspect: 16:9, 4:3, Full
In MENU, it is to exit the menu.
MENU Knob
9
It is to display menu, select settings, and adjustments.
(Push the knob to select, turn the knob to adjust settings.)
1 0 BRIGHT/R Knob
1: Adjust brightness 0 - 60 (30)
2: Adjust red channel
11 CONTRAST/G Knob
1: Adjust contrast 0 - 60 (30)
2: Adjust green channel
CHROMA/B Knob
12
1: Adjust chroma 0 - 60 (30)
2: Adjust blue channe
13
TINT/SHARPNESS Knob
1: Adjust tint 0 - 60 (30)
2: Adjust sharpness 0 - 60 (30)
Checked by
User programmable function buttons.
For quick access, the user may program
the F1 and F2 buttons to enable frequently
accessed monitor features. Via the main
monitor configuration menu, either button
may be assigned to perform the following
functions: Window 1, Window 2, HV
delay, Blue Gun, and Pixel to Pixel, .
