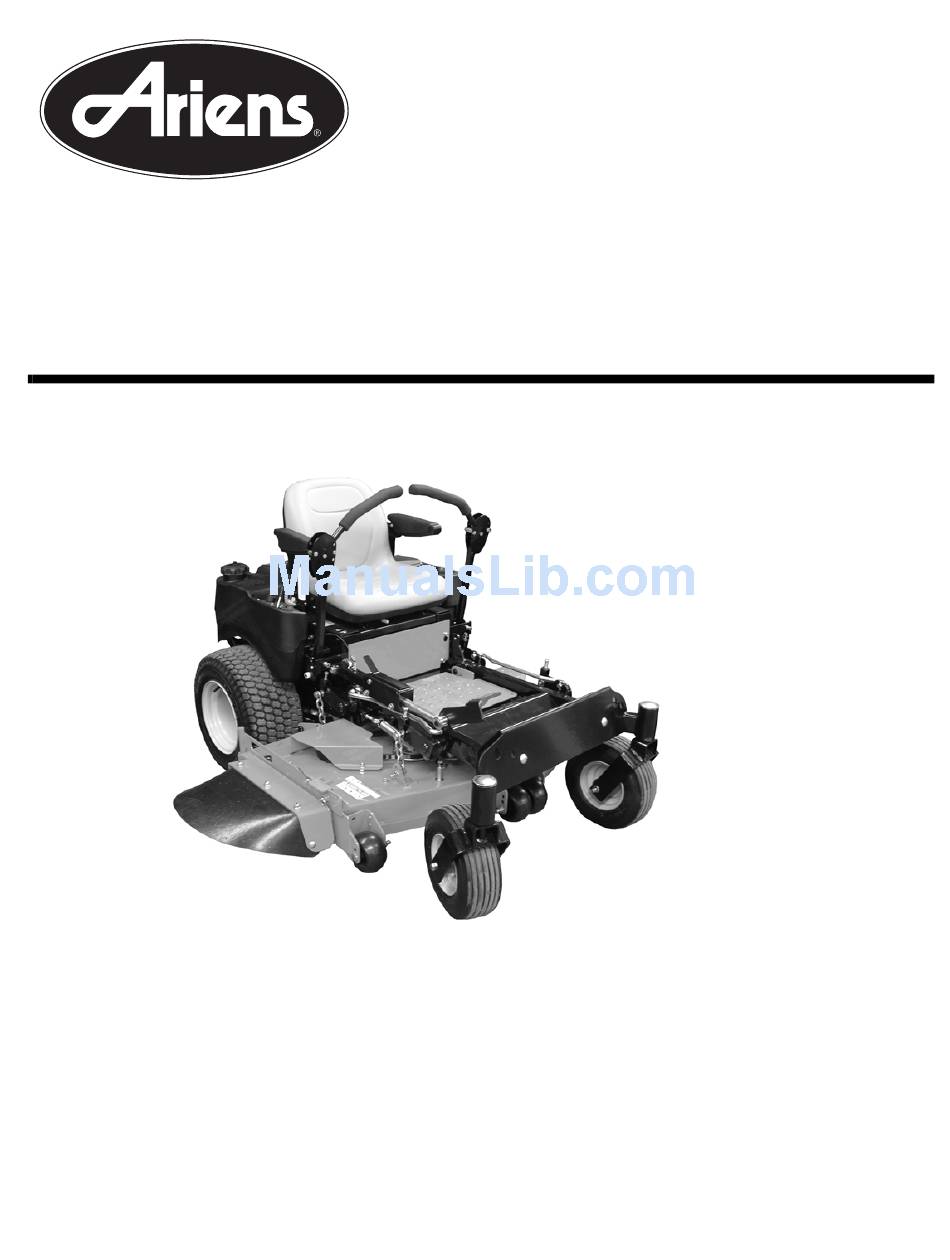

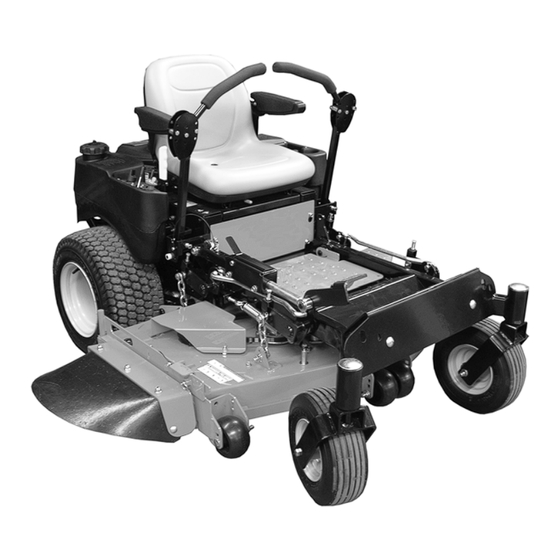

Max Zoom

Parts Manual

Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl teritary butyl ether) is acceptable for use in this machine.
The use of any gasoline exceeding (10%) ethanol (E10) or (10%) MTBE will voide the product warranty.
Il est possible d'utliser de l'essence contenant jusqu'à 10% d'éthanol (E10) ou 10% de MTBE (éther méthylltertiobutylique) sur cette machine. L'utilisation
d'une essence contenant plus de 10% d'éthanol (E10) ou de 10% de MTBE annulent la garantie.
En esta máquina puede utilizarse gasolina con hasta un 10% de etanol (E10) o hasta un 10% de MTBE (éter de metil butil terciario). El uso de cualquier
otro tipo de gasolina con un porcentaje superior al 10% de etanol (E10) o al 10% de MTBE invalidará la garantia del producto.
Models
991085 – Max Zoom 48
991086 – Max Zoom 52
991087 – Max Zoom 60
04276100A 6/11
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Max Zoom 48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ariens Max Zoom 48

Summary of Contents for Ariens Max Zoom 48

  • Page 1: Parts Manual

    Max Zoom Parts Manual Models 991085 – Max Zoom 48 991086 – Max Zoom 52 991087 – Max Zoom 60 Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl teritary butyl ether) is acceptable for use in this machine.

  • Page 2: Table Of Contents

    Mower Blades – 52” & 60” ....34 Belts, Spindles, Idlers and Mower Blades – 48” ..... 36 © Copyright 2011 Ariens Company...

  • Page 3: Decals - Safety

    – S ECALS AFETY Model 991085, 086, 087 PD0260 Item Part No. Qty. Description 07756000 Decal, Danger Fan 07754100 Decal, Hot Surface 07731400 Decal, Mower Pan Danger 07742300 Decal, Warning 07735200 Decal, Danger 02988100 Decal, Danger 05239700 Decal, Fuel Valve 05359300 Decal, Danger 04301300...

  • Page 4: Decals - Style

    – S ECALS TYLE Model 991085, 086, 087 07700005A PD0250 Item Part No. Qty. Description 08000528 Decal, Ariens Heritage Small 07800001 Decal, Ariens Jewel 07800222 Decal, Control Panel 07757500 Decal, Parking Brake Lever 00166400 Decal, Height of Cut 03271900 Decal, Transmission Disconnect...

  • Page 5: Frame

    RAME Model 991085, 086, 087 Item Part No. Qty. Description 03975051 Weldment, 48” HD Frame (991085) 03974951 Weldment, 52” – 60” HD Frame (991086, 087) 06530400 Nut, Spin Lock Flange .312-18 02989059 Kick Plate 03994651 Bumper, Max Zoom 07415400 Screw, Tapping .38-16 x .75 Hex Washer Head 07533600 Bumper, Rubber 00298959...

  • Page 6: Seat

    Model 991085, 086, 087 PD0300 Item Part No. Qty. Description 03829400 Assembly, Seat with Armrests 06545400 Nut, Nyloc Flange 5/16-18 05500901 Bushing, Flange .515 x .750 x .745 x 1.00 02982751 Weldment, Seat Plate 03255700 Weldment, Seat Shaft 07000034 Bolt, Shoulder EP .38-16 x .30 Hex 06534900 Nut, .38-16 Nyloc Flange 06224100...

  • Page 7: Engine And Clutch

    NGINE AND LUTCH Model 991085, 086, 087 ALVE Item Part No. Qty. Description 08200523 Engine, Kawasaki FR 691 (991085, 086) 08200524 Engine, Kawasaki FR 730 (991087) 03989000 Muffler, Kawasaki Engine 06500018 Nut, Locking,Top M8-1.25 03772951 Guard, Clutch Wire 06308700 Washer, Locking-EXT.391 x .682 x .036 06602700 Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035 03766851...
  • Page 8 YDRO RIVE Model 991085, 086, 087 Item Part No. Qty. Description 07211500 Belt, 4L 67.47 Wrapped 05508900 Bushing, Sleeve .377 x .624 x .235 06545500 Nut, .38-16 Nyloc Flange 05500123 AR Bushing, 1.00 x 1.125 x 1.936 01581700 Bushing, Spacer .502 x .997 x 2.03 06500010 Nut .50-13 Nyloc Flange 03792900 AR...

  • Page 9: Fuel Tanks And Hoses

    ANKS AND OSES Model 991085, 086, 087 A = S “E ” NGINE AND LUTCH PD0482 Item Part No. Qty. Description 09298200 Tank, Fuel RH (S/N 101 – 2499) 04245100 Tank, Fuel RH (S/N 2500 and up) 07000018 Bolt, SEMS .31-18 x .62 03278800 Clamp, Fuel Line 00262700...

  • Page 10: Epa Vent Lines

    EPA V INES Model 991085, 086, 087 Item Part No. Qty. Description 04082700 Grommet 04068910 Valve 03278800 Hose, Clamp 06908200 Clamp 05947800 Bolt, .31-18 x .62 06308600 Washer, Locking .31 x .078 Regular 06435700 Washer, Flat Steel .38 x .875 x .083 04306900 Fitting, Tee 1/4 x 3/8 07517300...

  • Page 11: Transmission

    RANSMISSION Model 991085, 086, 087...
  • Page 12 RANSMISSION Model 991085, 086, 087 Item Part No. Qty. Description 03283700 Transaxle, 2800 Series LH (page 14) – 03283600 Transaxle, 2800 Series RH (page 16) – 03282851 Right Hand Dump Valve Lever Black – 03282951 Left Hand Dump Valve Lever Black –...

  • Page 13: Hydro-Gear Hydrostatic Pump

    YDRO YDROSTATIC Model 991085, 086, 087 an Ariens PART NUMBER IS NOT LISTED NEXT TO A YDRO EAR NUMBER SOURCE THE PART FROM YOUR LOCAL YDRO EAR PARTS DISTRIBUTOR...
  • Page 14 YDRO YDROSTATIC Model 991085, 086, 087 Item Ariens p/n Hydro-Gear p/n Qty. Description 71421 Kit, Main Housing LH 21543819 51190 HFHCS 1/4-20 x 1.25 51804 O-Ring, 111 .103 x .424 08613700 9005110-5600 Plug, 9/16-18 (Metal) 21543771 50928 10.1 oz Sealant 70.3 oz...
  • Page 15 YDRO YDROSTATIC Model 991085, 086, 087 an Ariens PART NUMBER IS NOT LISTED NEXT TO A YDRO EAR NUMBER SOURCE THE PART FROM YOUR LOCAL YDRO EAR PARTS DISTRIBUTOR...
  • Page 16 YDRO YDROSTATIC Model 991085, 086, 087 Item Ariens p/n Hydro-Gear p/n Qty. Description 71413 Kit, Main Housing RH 21543819 51190 HFHCS 1/4-20 x 1.25 51804 O-Ring, .111 .103 x .424 08613700 9005110-5600 Plug, 9/16-18 (Metal) 21543771 50928 10.1 oz Sealant 70.3 oz 20W50 Oil...

  • Page 17: Wheels

    HEELS Model 991085, 086, 087...
  • Page 18 HEELS Model 991085, 086, 087 Item Part No. Qty. Description 00490251 Weldment, Front Fork 69000300 Bearing, Cone with Grease, 1.0 x .58 05407000 Bearing, Cup 1.980 x .420 00531400 Bearing Seal 1.5 x 2 x .18 00531500 Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375 00675300 Spacer, Wheel 06439000...

  • Page 19: Brakes And Linkage

    RAKES AND INKAGE Model 991085, 086, 087 Item Part No. Qty. Description 03780600 Weldment, Neutral Lock Arm 06216100 Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5 03251351 Neutral Lock Latch 05503900 Bushing, Flange .750 x 1.000 x .625 x 1.250 03780900 Plate, Neutral Interlock 05714600...

  • Page 20: Mechanical Lift

    ECHANICAL Model 991085, 086, 087 PD0361...
  • Page 21 ECHANICAL Model 991085, 086, 087 Item Part No. Qty. Description 06500010 Nut, Nyloc Top Flange .50-13 06430200 Washer, Flat Steel .531 x 1.25 x .10 07000031 Bearing, Pedestal 09286251 Weldment, Mechanical Lift 05960100 Bolt, Hex .50-13 x 3.75 Grade 5 09299651 Lock, Up, Mechanical Lift 08319000...

  • Page 22: Steering Controls

    TEERING ONTROLS Model 991085, 086, 087 PD0401...
  • Page 23 TEERING ONTROLS Model 991085, 086, 087 Item Part No. Qty. Description 03251700 Assembly, Steering Linkage 07412900 Screw, Tapping .38-16 x .50 Hex Washer Head 05521100 Bushing, Flange .515 x .750 x .745 x 1.00 Nylon 05957400 Bolt, Hex .31-18 x 1.75 Grade 5 06308800 Washer, Locking .38 x .094 06535900...

  • Page 24: Continuity Diagram

    ONTINUITY IAGRAM Model 991085, 086, 087 (01545600) (03252300) (03654200) (00432100) PD0320...

  • Page 25: Wiring Diagram

    IRING IAGRAM Model 991085, 086, 087 SPADE TERMINAL OIL LIGHT (optional) RELAY...

  • Page 26: Electrical System

    LECTRICAL YSTEM Model 991085, 086, 087 Connected when not CE OIL LIGHT (optional) Starter...
  • Page 27 LECTRICAL YSTEM Model 991085, 086, 087 Item Part No. Qty. Description 09287000 Key, with Shield 04331700 Switch, Ignition 01545600 Switch, Clutch 00525800 Boot, Eyelet Terminal 03288500 Harness, CZ Remote SOL. 03966800 Hour Meter, with Maintenance 00432100 AR Relay, Sealed with Diode 00696900 Solenoid 01554800...

  • Page 28: Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers

    , & B ISCHARGE HUTE CALP OLLERS OVERS Model 991085, 086, 087...
  • Page 29 , & B ISCHARGE HUTE CALP OLLERS OVERS Model 991085, 086, 087 Item Part No. Qty. Description 04077659 Weldment, 60” Side Discharge Deck (991087) 04077559 Weldment, 52” Side Discharge Deck (991086) 04077459 Weldment, 48” Side Discharge Deck (991085) 07001525 Nut, Heavy Hex .38-16 03982259 Guard, 60"...

  • Page 30: Mounting Chains

    OUNTING HAINS Model 991085, 086, 087 PD0441 Item Part No. Qty. Description 09284700 Chain, Link 05900022 Bolt, Hex M12-1.75 x 50 Class 8.8 06500003 16 Nut, Spin Lock, Flange M12-1.75 00442800 Bracket, Deck Leveling 06536100 Nut, Jam .312-18 05980900 Bolt, Hex .312-18 x 2.00 FTH Grade 5...

  • Page 31: Mounting Arms

    OUNTING Model 991085, 086, 087 Item Part No. Qty. Description 00451659 Discharge Baffle, 48” (991085) 00374159 Discharge Baffle, 60" (991087) 00440859 Discharge Baffle, 52" (991086) 06216100 Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5 06545400 Nut, .31-18 Nyloc Flange 06545500 Nut, .38-16 Nyloc Flange 05948700...

  • Page 32: Belts, Spindles, Idlers And Mower Blades - 48

    – 52” & 60” ELTS PINDLES DLERS AND OWER LADES Model 991086, 087...
  • Page 33 – 52” & 60” ELTS PINDLES DLERS AND OWER LADES Model 991086, 087 Item Part No. Qty. Description 07200028 Belt, BB 130.00 Wrapped Hex (991087) 07200026 Belt, BB 120.50 Wrapped Hex (991086) 07200038 Belt, B 63.00 Raw Cogged (991087) 07200036 Belt, B 56.00 Raw Cogged (991086) 05957900 Bolt, Hex .38-16 x 1.50 Grade 5...
  • Page 34 – 48” ELTS PINDLES DLERS AND LADES Model 991085...
  • Page 35 – 48” ELTS PINDLES DLERS AND LADES Model 991085 Item Part No. Qty. Description 07200025 Belt, BB 114.50 Wrapped Hex (PTO Belt) 07200035 Belt, B 51.18 Raw Cogged (Deck Belt) 05957900 Bolt, Hex .38-16 x 1.50 Grade 5 05500905 Bushing, Spacer .502 x .997 x .50 07300527 Sheave, .50"...
