- Page 1 GEBRAUCHSANLEITUNG Gebrauchsanleitung Operating instructions Notice d'utilisation Istruzioni per l' uso Gebruiksaanwijzing Instrucciones de uso Instruções de serviço Ïäçãßåò ÷ñÞóçò KE9600-0-2T IKE 249 5...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.
-
Page 3: Table Of Contents
CONTENTS 1 Your Refrigerator 4 Preparation 2 Important Safety Warnings 4 5 Using your refrigerator Intended use ........4 Setting the fridge compartment temperature ........20 General safety ........4 Setting the freezer compartment Child safety .......... 6 temperature ........20 HCA Warning ........ -
Page 4: Your Refrigerator

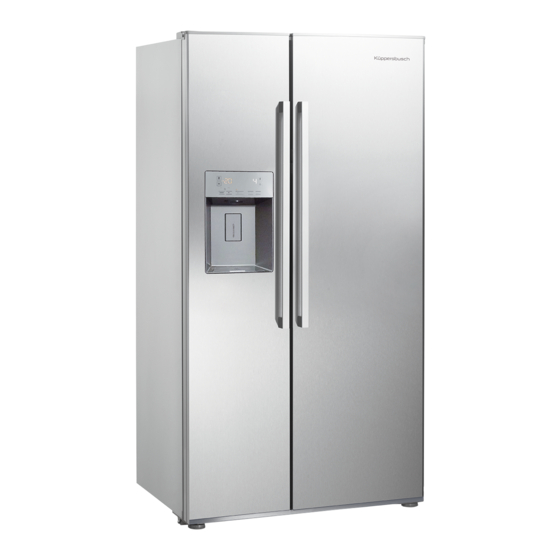

Your Refrigerator 1. Freezer compartment 12. Crisper cover 2. Fridge compartment 13. Adjustable front legs 3. Fridge compartment interior light 14. Blue light 4. Fan 15. Water reservoir 5. Ioniser 16. Ventilation lid 6. Fridge compartment glass shelves 17. Freezer compartment drawers 7. -
Page 5: Important Safety Warnings
Important Safety Warnings Please review the following • Vapor and vaporized cleaning information. If these are not followed, materials should never be used in personal injury or material damage cleaning and defrosting processes of may occur. Otherwise, all warranty and your refrigerator. - Page 6 as well as the explosive materials • If the power supply is disconnected should never be kept in the appliance. in manually controlled refrigerators please wait for at least 5 minutes before • Do not use mechanical devices reconnecting the power. or other means to accelerate the defrosting process, others than those •...
-
Page 7: Child Safety
attention to not damaging the cooling • Materials that require certain system and piping during usage and temperature conditions such as transportation. In the event of damage, vaccine, temperature sensitive keep your product away from potential medicines, scientific materials etc fire sources that can cause the product should not be kept in refrigerator. -
Page 8: Installation
Installation 2. Clean the interior of the refrigerator as Please remember that the recommended in the “Maintenance manufacturer shall not be held liable if and cleaning” section. the information given in the instruction 3. Insert the 2 plastic wedges onto the manual is not observed. -
Page 9: Electric Connection
Electric connection Before disposing of your refrigerator, cut out the electric plug and, if there Connect your refrigerator to a are any locks on the door, make them grounded socket which is being inoperable in order to protect children protected by a fuse with the against any danger. -
Page 10: Floor Balance Adjustment
Floor balance adjustment 2. Loosen the three screws of the hinges of the lower door, which you If your refrigerator is unbalanced; wish to escalate, with the help of a You can balance your refrigerator by screwdriver as shown in the figure turning the front legs of it as illustrated below. - Page 11 • If the freezer compartment door is Allen wrench as illustrated in Figure D. lower than the fridge compartment After bringing the doors to the same door, bring them to the same level by level by elevating the front part with turning the turning the elevation screw the aid of the elevation screws,ensure on the freezer compartment side in...
-
Page 12: Adjusting The Gap Between The Upper Door
Adjusting the gap between before removing hinge covers and the upper door this situation should be made to take care. You can adjust the gap between the fridge compartment doors as illustrated in the figures. Door shelves should be empty when adjusting the door height. -
Page 13: Installing Water Filter
Installing Water Filter (in some models) Installation Requirements Two different water sources may be connected to the refrigerator for water supply: the mains cold water supply and water in a jug. A pump should be used for jug water usage. Note: Since the following parts are not required in use with a jug, they may not be found in the product you... -
Page 14: Connection Of The Water Pipe To The Refrigerator
Connection of the Water Pipe to the Refrigerator 1. After installing the union onto the water pipe, insert the water pipe to Water connection to the the refrigerator inlet valve by pressing refrigerator downwards firmly. Please follow the instructions 2. Fix union as seen in the opposite below. - Page 15 To fit the water filter follow the 3. Take out the water filter by-pass instructions below referring to figures cover by rotating it downwards. supplied: (Figure 3-4) 1. Press ice cancel button on the Warning: Make sure that the “Ice display.
-
Page 16: Connection Of Water Hose To The Jug
2. Put and fix the pump hose into the Warning: Water filter cleans some jug as shown in the figure. foreign particles in the water. It does 3. After completing the connection, plug not purify water from microorganisms. in and run the pump. Warning: Ice Off button must To provide an efficient operation of the always be pressed during replacement... -
Page 17: Connection Of The Water Pipe To The Cold Water Mains Line
Connection of the Water Warning: Make sure that standard Pipe to the Cold Water Mains 1/2" valve fitting fed by cold mains Line water supply is available and is turned off fully. (in some models) Note -1: There is no need to use water If you want to use your refrigerator by filter in case a jug is used. -
Page 18: Prior To First Use Of Ice/Water Dispenser
Prior to first use of Ice/Water The first 10 glasses of water should Dispenser not be consumed. 12 hours must pass to obtain ice Water mains pressure must not be from the Ice Dispenser for the first below 1 bar. time. -
Page 19: Preparation
Preparation C Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight. C The ambient temperature of the room where you install your refrigerator should at least be 10°C. -
Page 20: Using Your Refrigerator
Using your refrigerator 1-Fridge Set button 17-High temperature/error warning indicator 2-Vacation mode button 18-Fridge door open indicator 3-Quick Cool button 19-Key Lock indicator 4-Key lock button 20-Vacation mode indicator 5-Ice Off button 21-Water indicator 6-Water Dispenser Lights 22-No ice indicator 7-Ice / Water 23-Crushed Ice indicator 8-Water Dispenser light button... -
Page 21: Setting The Fridge Compartment Temperature
Freezer Fridge Explanations Compartment Compartment Adjustment Adjustment This is the normal recommended -18°C 4°C setting. These settings are recommended -20,-22 or -24°C 4°C when the ambient temperature exceeds 30°C. Use this when you wish to freeze your Fresh Freeze food or make ice in a short time. Your Display will show 4°C refrigerator will return to its previous... -
Page 22: Fresh Freeze Function
Fresh Freeze Function on Vacation Button for 2 seconds to activate this function. When this When you press “Fresh Freeze” function is active, the door of the fridge button, the compressor will run for compartment must be kept closed about 24 hours. Fresh Freeze indicator and no food must be left in the fridge will glow and freezer compartment compartment. -
Page 23: Using The Ice Dispenser
water, cube ice and crushed ice needs If the ice dispenser hasn't been without having to open the door of used for a long time or after a power the refrigerator. It is a continuous cold cut the ice may form clumps or if the water and ice source without adding ice has taken on a change in smell or water. -
Page 24: Using The Water Spring
Using the water spring Sliding Body Shelves Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf;... -
Page 25: Blue Light
Blue light Crisper humidity control sliders Foodstuff stored in the crispers that are enlightened with a blue light Using the crisper humidity control continue their photosynthesis by sliders means of the wavelength effect of blue Crisper of your refrigerator is designed light and thus, preserve their freshness specially to keep your vegetables fresh and increase their vitamin content. -
Page 26: Recommendations For Preservation Of Frozen Food
Recommendations for Replacing the Interior Light preservation of frozen food Bulb • Prepacked commercially frozen Should the light fail to work, proceed food should be stored in accordance as follows: with the frozen food manufacturer’s 1. Switch off at the socket outlet and instructions for a ( 4 star) frozen pull out the mains plug. -
Page 28: Maintenance And Cleaning
Maintenance and cleaning Protection of plastic Never use gasoline, benzene or surfaces similar substances for cleaning purposes. Do not put the liquid oils or oil-cooked We recommend that you unplug the meals in your refrigerator in unsealed appliance before cleaning. containers as they damage the plastic surfaces of your refrigerator. -
Page 29: Icebox And Water Dispenser
Chiller compartment Icebox and Water Dispenser If you wish to use the storage Follow the procedure and warnings container under the shelf as the Chiller below to clean the icebox: compartment, the storage container Remove the Icebox by lifting first under the shelf should be placed as and then pulling towards yourself as shown in the picture. -
Page 30: Recommended Solutions For The Problems
Recommended solutions for the problems Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. - Page 31 The fridge is running frequently or for a long time. • Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. • The ambient room temperature may be high. This is quite normal. •...
- Page 32 The operation noise increases when the refrigerator is running. • The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault. Vibrations or noise. • The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level.
- Page 33 48 9356 0000/AA DE-EN-FR...
