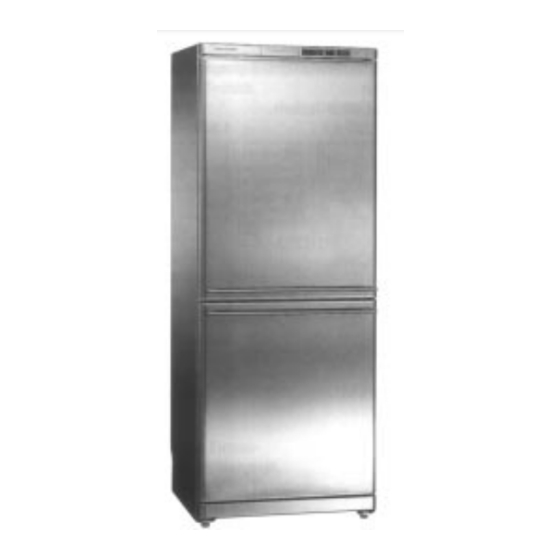

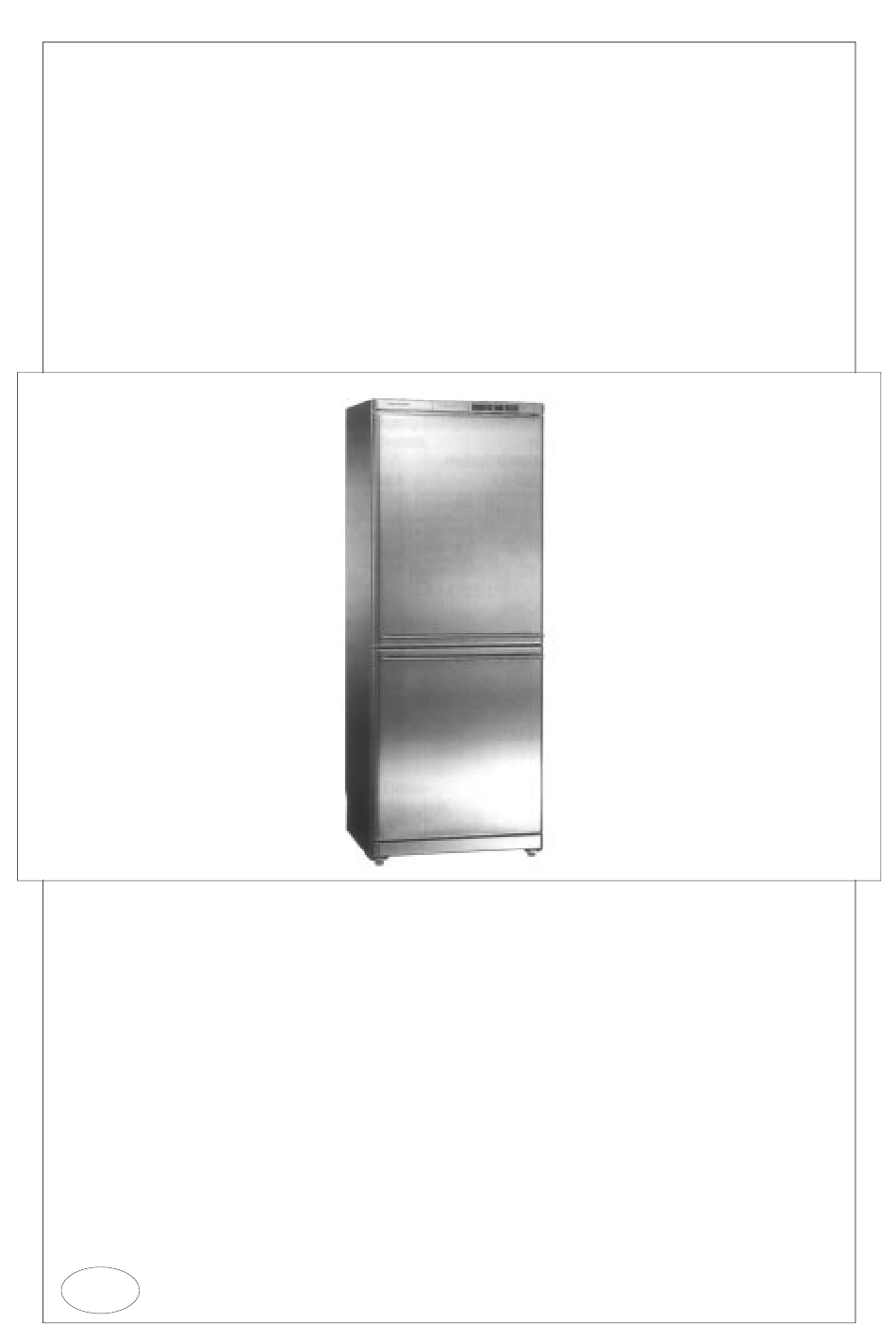

- Page 1 KÜPPERSBUSCH AFTER- SALES SERVICE Technical Manual Fridge-freezer combination KE 320-4-2T...
-
Page 2: Table Of Contents
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 Contents 1. General ........................... 2 1.1 Refrigeration circuit ..................... 3 1.2 Structure of electronics ....................4 1.3 Characteristics ......................4 1.4 Electrical circuit diagram ..................... 4 2. -
Page 3: General
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 1. General - Electronic fridge-freezer - Extra high insulation, energy efficiency class A - Standard energy consumption 314 kWh in 365 days (DIN EN 153) room temperature 25 °C / not opened for 24 hours... -
Page 4: Refrigeration Circuit
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 Refrigeration circuit For internal use only... -
Page 5: Structure Of Electronics
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 Structure of electronics Software: The MC68HC05B6 (6 kbyte ROM, 255 byte EEPROM) of Motorola is used as C. In order to maintain the flexibility of the electronics changeable parameters (e.g. type of electronics, switching temperatures, etc.) are stored in the EEPROM of the... -
Page 6: Function Requests
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 2. Function requests Operating functions 2.1.1 Super button and operation of the freezing programme After pressing the Super button, the freezing programme will be initiated. - Page 7 Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 2.1.2 Alarm Off button and Alarm function If the temperature of the FC room detector is higher or equal -9 °C the alarm LED and the accoustic signal transmitter will be activated.
-
Page 8: Control Functions
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 2.1.6 RC On/Off button By means of the RC On/Off button, the refrigerator compartment and the associated control and display functions are switched on/off. The refrigerator compartment interior light is switched off. -
Page 9: Safety Functions
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 Safety functions 2.3.1 Power failure protection In case of a power failure, the following data are stored in the EEPROM: - RC status: On/Off... -
Page 10: Shop Circuit State
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 3. Shop circuit state The shop circuit state is obtained by pressing the "Super" button with the appliance dis- connected from the supply and switching on the appliance. The button must be pressed, until the yellow super LED is lit (2 sec.). -
Page 11: Test Programmes
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 Test programmes The test programmes can be activated by pressing the "Super" button with the appliance disconnected from the supply and switching on the appliance. Keep the button pressed, until the yellow Super LED is extinguished after lighting (longer than 5 sec.). -
Page 12: Switching Values And Ntc Detector Values
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 5. Switching values and NTC detector values Rated temperature Value in OHM Value in Ohm Freezer compartment (Freezer NTC) -18 °C -12.5 °C 4500 -14 °C... -
Page 13: Solenoid Valve
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 6. Solenoid valve The bistabile solenoid valve is activated by the electronics. The switch over is triggered by four positive half-waves (freezer compartment) resp. negative half-waves (refrigerator compartment) in a 30-second-cyle. -
Page 14: Stainless Steel Doors
Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 7. Stainless steel doors The doors of the fridge-freezer combinations are supplied without door handle and door sealing. For an exchange of the door all attachment elements must be ordered separately or must be taken from the already existing door. - Page 15 Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 For internal use only...
- Page 16 Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 For internal use only...
- Page 17 Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 For internal use only...
- Page 18 Technical Manual VKS-H H8-420-02-01 KE 320-4-2T Responsible: K.H. Hiby Phone: (0209) 401-732 Fax: (0209) 401-743 Date: 28.01.1998 For internal use only...
