IMPORTANT MANUAL
REPAIR PARTS MANUAL
MODEL:
PO15538LT

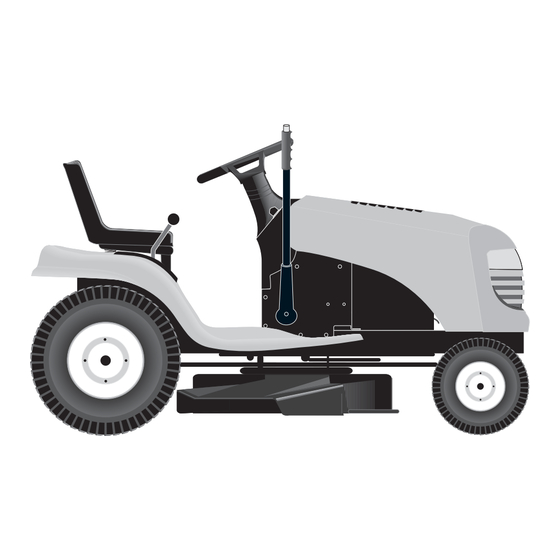

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan.com
532 44 52-23
DO NOT THROW AWAY
02494
WARNING:
Read this Man u al and follow all Warnings
and Safety Instructions. Fail ure to do so
can re sult in serious in ju ry.
08.17.11 BD
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Poulan Pro 96012006800-PO15538LT-FRE
Summary of Contents for Poulan Pro 96012006800-PO15538LT-FRE
- Page 1 Read this Man u al and follow all Warnings MODEL: and Safety Instructions. Fail ure to do so can re sult in serious in ju ry. PO15538LT LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan.com 08.17.11 BD 532 44 52-23 Printed in U.S.A.
-
Page 2: Table Of Contents
HOW TO USE THIS MANUAL This manual is designed to provide the customer with a means to identify the parts on his/her tractor when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore, it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some hardware and parts are drawn larger in order to more readily identify them. -
Page 3: Schematic
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 SCHEMATIC SCH03 BATTERY STARTER FUSE AMMETER (OPTIONAL) WHITE CLUTCH / BRAKE ATTACHMENT CLUTCH (PEDAL UP) (CLUTCH OFF) BLACK BLACK SEAT SWITCH (NOT OCCUPIED) BLACK BLACK GRAY GRAY REVERSE SWITCH NOT IN REVERSE SHORTING CONNECTOR BLACK... -
Page 4: Electrical
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 ELECTRICAL... -
Page 5: Electrical
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 ELECTRICAL PART DESCRIPTION 532 16 34-65 Battery 12 Volt 25 Amp 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 532 17 66-89 Battery Box 532 17 61-38 Switch Interlock Push-In 532 17 56-88 Harness Asm. - Page 6 TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 CHASSIS AND ENCLOSURES...
-
Page 7: Chassis
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 CHASSIS AND ENCLOSURES PART DESCRIPTION 532 17 46-19 Chassis 532 17 65-54 Drawbar 532 15 52-72 Bumper, Hood/Dash 532 43 33-53 Dash 872 14 06-08 Bolt, Carriage 3/8-16 x 1 532 17 49-96 Panel Dash LH 532 18 17-19... -
Page 8: Drive
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 DRIVE drive-stlt_Peerless_fender_13_r1... -
Page 9: Drive
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 DRIVE PART PART DESCRIPTION DESCRIPTION - - - - - - - - - Transaxle Peerless 205-545C 532 17 54-10 Engine Pulley (165670) (Order parts from 532 17 39-37 Bolt Hex transaxle manufacturer) 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16 532 14 66-82 Spring Return Brake T/a Zinc... -
Page 10: Engine
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 ENGINE OPTIONAL EQUIPMENT Spark Arrester engine-stlt_bs_16... - Page 11 TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 ENGINE PART DESCRIPTION 532 17 05-51 Control Throttle /Choke 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 5/8 T - - - - - - - - Engine Briggs &...
-
Page 12: Steering
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 STEERING steering_pl.lt_68_r2... - Page 13 TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 STEERING PART DESCRIPTION 532 42 45-43 Wheel Steering 532 41 81-68 Axle Asm 532 16 98-40 Spindle Asm LH 532 16 98-39 Spindle Asm RH 532 12 49-31 Bearing Race Thrust Harden 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
-
Page 14: Mower Deck
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 MOWER DECK 38-7_deck-manual_22... -
Page 15: Mower Deck
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 MOWER DECK PART PART DESCRIPTION DESCRIPTION 532 19 25-56 Mower Housing Assembly 532 19 32-16 Spring Brake Return 872 14 05-06 Bolt Carriage 5/16-18 x 3/4 819 13 13-11 Washer 13/32 x 13/16 x 11 Ga. 532 13 80-17 Bracket Asm Fr. -
Page 16: Mower Lift
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 MOWER LIFT 16 17 lift-rh.1piece_27 PART PART DESCRIPTION DESCRIPTION 532 40 49-81 Plunger Asm. Lift Lever 532 17 32-88 Link Front 873 35 08-00 Nut Jam Hex 1/2-13 unc 532 15 94-71 Shaft Asm Lift RH 532 10 57-67 Pin Groove 532 17 56-89 Trunnion... -
Page 17: Seat
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 SEAT seat-stlt_knob_1 PART PART DESCRIPTION DESCRIPTION 532 18 87-13 Seat 532 12 12-48 Bushing Snap Blk Nyl 532 14 05-51 Bracket Seat Pivot 872 05 04-12 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 871 11 06-16 Bolt Hex 3/8 - 16 x 1 532 13 43-00 Spacer Split .28 x .96 819 13 16-10 Washer 13/32 x 1 x 10 Ga. -
Page 18: Decals
TRACTOR - - MODEL NUMBER PO15538LT (96018000501), PRODUCT NO. 960 18 00-05 DECALS PART PART DESCRIPTION DESCRIPTION 532 43 88-03 Decal Replacement 532 14 50-05 Decal, Caution, Battery 532 43 10-90 Decal, Eng. HP 532 43 52-86 Decal, Engine 532 41 16-58 Decal, Warning 532 43 19-85 Decal, Fender 532 19 43-02 Decal, V-Belt Sch. -
Page 19: Warranty
LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in mate- rials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship. -
Page 20: Parts And Service
Model Number/Manufacturer's I.D. Number b. Description of part. For Technical Assistance: call 1-800-829-5886 For a Parts Manual, go to our website: www.poulan.com NOTE: HOP provides parts and service through its au thor ized dis tribu tors and dealers; there fore, all requests for parts and service should be directed to your local dealer(s).
