Summary of Contents for Makita EM2650LH

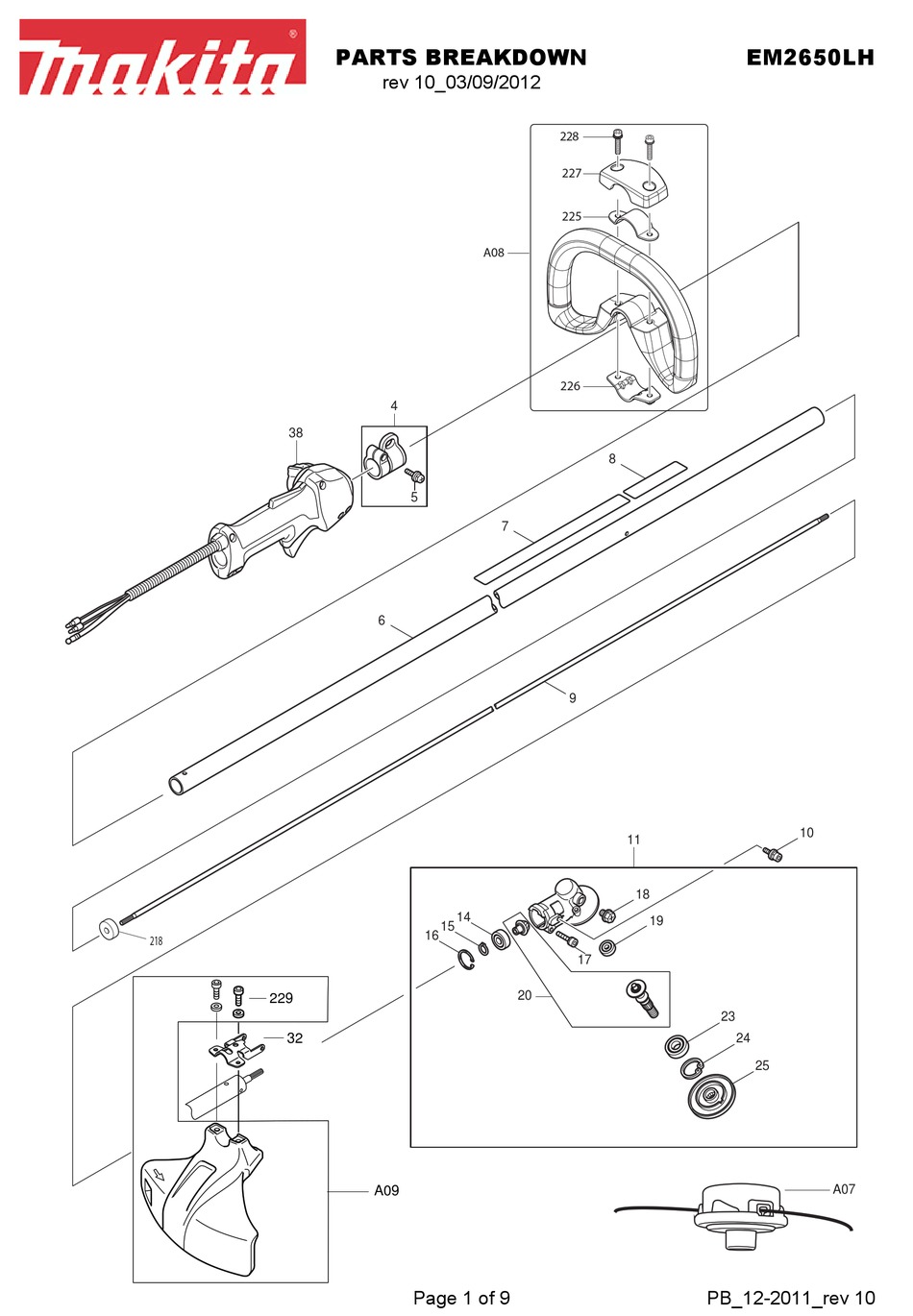

- Page 1 PARTS BREAKDOWN EM2650LH PARTS BREAKDOWN EM4251 rev 10_03/09/2012 Page 1 of 9 PB_12-2011_rev 10 1 of 16 06/10/2010...
- Page 2 PARTS BREAKDOWN EM2650LH PARTS BREAKDOWN EM4251 rev 10_03/09/2012 Page 2 of 9 PB_12-2011_rev 10 1 of 16 06/10/2010...
- Page 3 PARTS BREAKDOWN EM2650LH PARTS BREAKDOWN EM4251 rev 10_03/09/2012 78 79 Page 3 of 9 PB_12-2011_rev 10 1 of 16 06/10/2010...
- Page 4 PARTS BREAKDOWN EM2650LH PARTS BREAKDOWN EM4251 rev 10_03/09/2012 Page 4 of 9 PB_12-2011_rev 10 1 of 16 06/10/2010...
- Page 5 +HEX.BOLT M8X10 WITH R 188902-1 CUTTER SHAFT SET 210115-7 BALL BEARING 6001LLU 962106-1 RETAINING RING R-28 331861-0 RECEIVE WASHER 346073-2 PROTECTOR CLAMP, EM2650LH 819432-8 CAUTION TAG 819766-9 EM2650LH MODEL NO.LABEL 125776-9 CONTROL LEVER ASSEMBLY INC. 39-55 266130-9 TAPPING SCREW BIND PT 3X16...
- Page 6 PLUG CAP 324891-8 PLUG CAP SPRING 168534-0 SPARK PLUG 125554-7 ROCKER ARM ASSEMBLY 256200-2 PIN 5 256865-0 ROD 2.5 424200-2 SPACER, EM2650LH 451735-0 CLUTCH CASE 922228-9 H.S.H.BOLT M5X18 WITH WR 450569-8 SPACER 961052-5 RETAINING RING S-12 210111-5 BALL BEARING 6201LLU 962151-6...
- Page 7 H.S.H.BOLT M5X14 WITH WR 638707-4 LEAD UNIT 638708-2 LEAD UNIT 808633-3 4STROKE INDICATION LABEL 922218-2 H.S.H.BOLT M5X14 WITH WR 453266-5 CYLINDER COVER, EM2650LH CYLINDER COVER 451734-2 922218-2 H.S.H.BOLT M5X14 WITH WR 424082-2 BUFFER RUBBER 922211-6 HEX. SOCKET HEAD BOLT M5X12 922226-3 HEX.
- Page 8 452249-2 FUEL TANK 424080-6 BUFFER RUBBER 424081-4 BUFFER RUBBER 451737-6 TANK GUARD 922218-2 H.S.H.BOLT M5X14 WITH WR 195308-6 RECOIL STARTER SET, EM2650LH RECOIL STARTER ASSEMBLY 125752-3 INC. 122,184,185,187-193 424319-7 STARTER KNOB 424359-5 DAMPER 266585-8 TAPPING SCREW 5X12 325923-4 SWING ARM...
- Page 9 PARTS BREAKDOWN EM2650LH PARTS BREAKDOWN EM4251 rev 10_03/09/2012 Products with multiple versions are listed in subsiding order with the newest version on top not indented. Corresponding bulletins are attached. Select bulletin name or attachment to view. Tech Bulletin Fig. No. Part No.
