Summary of Contents for Kuppersbusch IG 647
-
Page 3: Table Of Contents
Index Safety instructions ... . . auto 3in1 ..... Getting to know your appliance Programme overview . -
Page 4: Safety Instructions
Safety instructions Installation Install and connect the appliance Delivery according to the installation and Immediately check the packaging and assembly instructions. dishwasher for any damage which may The dishwasher must NOT be have been caused in transit. Do not use connected to the power supply during a damaged appliance, but consult your installation. -
Page 5: In Daily Use
In daily use If a fault occurs Repairs or other work on the dishwasher should only be carried out Warning by a qualified specialist. Knives and other utensils with sharp points The dishwasher must be disconnected must be placed in the baskets either flat or from the electricity supply before any with the points downwards. -

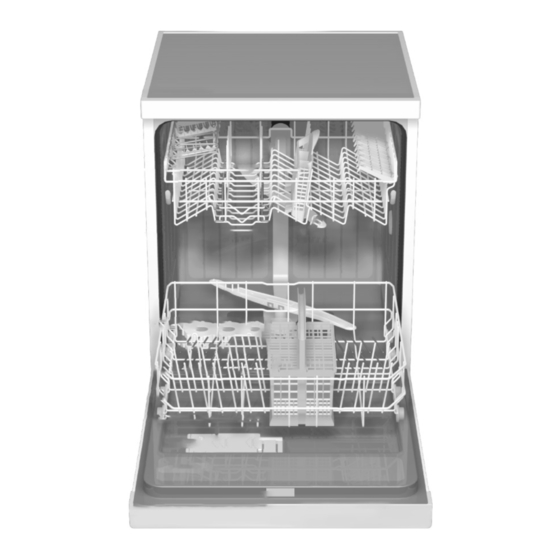

Page 6: Getting To Know Your Appliance
Getting to know your Appliance interior appliance Upper basket with 2-tiered cup rack Additional cutlery basket for the top Diagrams of the control panel and the basket * interior of the appliance can be found Upper spray arm in the envelope at the front. Lower spray arm Individual positions are referred to in the text. -
Page 7: Water Softener
Water softener Press and hold the B programme button, and set the main switch In order to rinse dishes and glasses ON, before releasing the programme satisfactorily, the dishwasher requires soft button again. water, i.e. containing little or no lime, The indicator lamp for the B button otherwise water stains will be left behind flashes, as does the figure... -
Page 8: Filling The Special Salt Container
Filling the special salt The LOW SALT indicator on the front panel will light up initially but will extinguish container again after a short period when the salt solution has become sufficiently How the salt works concentrated. While washing is taking place, salt is automatically rinsed out of the salt Note container into the water softener where it... -
Page 9: Filling The Rinse-Aid Container
Filling the rinse-aid Adjusting the amount of rinse-aid container The amount of rinse-aid added to the The purpose of a rinse-aid is to prevent water can be varied by adjusting the the formation of water marks on tableware stepless control. The rinse-aid control has and utensils, and to ensure that glasses been set to ”4”... -
Page 10: Unsuitable Dishes
Switching the rinse-aid Unsuitable dishes indicator on or off You should not clean the You can switch the rinse-aid indicator following items in your on or off. This function can be changed as dishwasher: follows: Close the door. Cutlery and dishes made of wood. They Hold down programme button C and will leach out and become unsightly;... -
Page 11: Arranging Crockery, Glasses, Etc
Damage to glassware and other Arranging crockery, glasses, dishes etc. in the dishwasher Possible causes: Loading the dishwasher type of glass or manufacturing process Scrape off any large amounts of chemical composition of detergent left-over food. It is not necessary to water temperature and duration of rinse the dishes under running water. -
Page 12: Pots And Pans
Pots and pans Shelf * Lower basket * not on all models Lean tall glasses and those with long stems against the shelf – not against other items to be washed. Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the Cutlery spray arms. - Page 13 Adjusting position of basket * Top basket with upper and lower roller pairs * not on all models Pull out the top basket. Remove the top basket and re-attach it to the upper or lower rollers. Ø max. 20/*25cm Ø max. 20/*25cm Ø...
- Page 14 Baking sheet spray head * * some models You can clean large baking sheets or grilles with the baking sheet spray head. To do this, remove the top basket and insert the spray head as illustrated in the diagram. To raise the basket, take hold of the basket on the upper edge and pull upwards.
-
Page 15: Detergents
Detergents Detergent compartment with measuring marks Information about detergents The side of the detergent compartment is You can use any brand of liquid or powder marked with lines to help you determine detergent, as well as tablets, that have how much powder to add. been specifically designed for use in The capacity of the detergent container is domestic dishwashers. -
Page 16: Auto 3In1
auto 3in1 Reduce costs! The use of so-called combined detergent If you are using the upper rack products may make the use of rinse aid only, or if your dishes are only and/or salt unnecessary. moderately dirty, it will normally There are currently several types of suffice to employ a reduced combined detergent products available. - Page 17 Switching the salt refill Note indicator / water softening Optimum rinsing and drying results can be system off and on obtained by using standard detergents in Close the door. conjunction with separate application of Hold down the programme button B salt and rinse aid.
-
Page 18: Programme Overview
Programme overview This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia. Type of crockery e.g.china, Non- pots/pans, Mixed Mixed Delicate delicate cutlery, glasses, etc. Type of food Rinse off if Soups, casseroles, Soups, potatoes, Coffee, cakes,... -
Page 19: Washing Dishes
Washing dishes Switching the dishwasher ON Turn on the tap. Set main switch to ON. Reduce costs! Indicators light up according to the last programme that was selected. If only a small number of This same programme will run again if dishes have been loaded into no other programme button the dishwasher, selecting a... -
Page 20: End Of Programme
End of programme Changing the programme The programme has ended when a figure It is possible to change the programme appears in the numerical display within 2 minutes after you have switched the dishwasher on. Should it be necessary to change the Switching the dishwasher OFF programme after this period, the Several minutes after the programme has... -
Page 21: Maintenance And Care
Maintenance and care You can help prevent faults by checking and maintaining your appliance regularly. This will save time and reduce problems. Therefore you should occasionally examine the inside of your dishwasher. Overall condition of the appliance Check the rinsing compartment for grease and limescale deposits. -
Page 22: Spray Arms
Spray arms Pump * Lime and remnants of food in the washing on applicable models water can block the nozzles in the spray Larger remnants of food that have not arms and the arm been trapped by the filters and have been mountings . -
Page 23: Fault Finding
Fault finding Warning Resolving minor problems Remember: yourself The appliance may be repaired by a technician only. Improper Experience has shown that you can repairs may cause resolve most problems that arise during considerable damage and/or normal daily usage yourself, without injure the user. - Page 24 Water remains inside appliance ... with the dishes, cutlery, etc. after programme has ended Remnants of food are stuck to the Blockage or kink in drainage hose. dishes, cutlery, etc. Pump is jammed. Dishwasher was not loaded Filters are blocked. properly.
-
Page 25: Customer Service
Dishes, cutlery, etc. have not been Customer Service dried Please call your local service agent, if you Selected programme did not are not able to resolve any problem include drying function. yourself. The name of your nearest service Amount of rinse-aid was set too agent is shown in the Customer Service low. -
Page 26: Information
Information Installation Notes on comparison tests The dishwasher must be connected by a qualified technician to ensure correct You will find details of the conditions for operation. The specifications for supply, the comparison tests on the additional drainage and connected load must fulfil ”Notes on comparison tests”... -
Page 27: Fresh Water Connection
Fresh water connection Removing the appliance Using the enclosed parts, connect the It is essential, when removing the fresh water connection to the tap appliance, to observe the following according to the installation instructions. sequence: First, disconnect the appliance Ensure that the fresh water connection is from the power supply. - Page 28 Protection from freezing temperatures If the appliance is installed in a location where there is a risk of freezing temperatures (e.g. in a holiday home), all water must be completely drained out of the interior (see “Transporting the dishwasher”). Turn OFF the tap, disconnect the supply hose and allow to drain.
- Page 29 en Subjekt to modification...
-
Page 31: Fill With Detergent
Set the water softening system * Quickly sorted ... Brief and handy: everything your dishwasher Read off the setting ... and then set Find out the water hard- needs... – Hold down programme button B and switch on the main ness at your water utility Before using for the first switch, then release the buttons. - Page 32 Maintenance and care Cleaning the waste-water pump * For perfect rinsing results ... * With some models Strainers ... Rotate filter rinse under Insert ... Screw in filter – Ladle out water and remove filters cylinder, remove flowing water ... system NOTE Check, if –...
