GE Profile Performance CustomStyle TNX22PRCBB Specification Sheet

TNX22PRCWW - GE Profile Performance

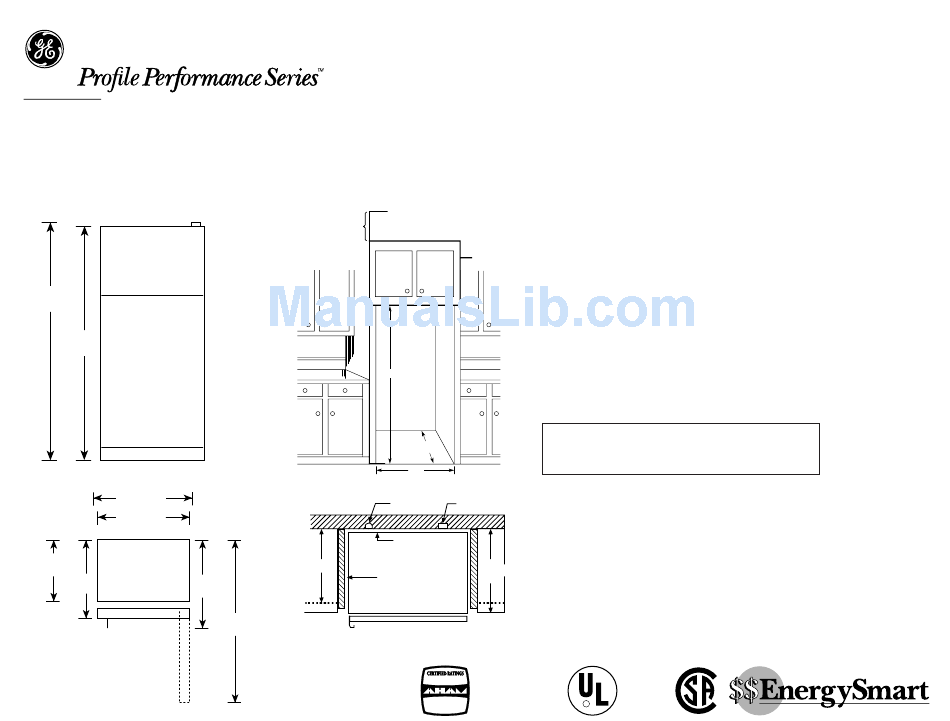

Case Dimensions (in inches/cm.)
Front View
69-7/8
68-3/4
36-1/4
35-3/4
23-3/4
26-3/4
28-5/8
Top View
Specification Revised 11/99
™ 21.7 Cu. Ft. CustomStyle
Rough-In Dimensions (in inches/cm.)
8' Ceiling
12"
Soffit
70-1/4"*
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
24-1/2"* Side panels
61
™ No-Frost Top-Freezer Refrigerator with Dispenser
Standard, New Construction and Replacement Installation
Installation Tips to Maximize the Built-In Look
• All wall/floor moulding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water line damage. 48" minimum length 1/4"
13" to 14"
diameter water line tubing recommended.
Cabinet
• When possible, recess both copper water line and electrical outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look. (See owner's manual)
Handle Side Clearance
–At least 2" (51 mm) on the handle side for fingertip clearances.
Top and Bottom Clearance
–At least 3/16" (4.75 mm) at the top and bottom edges to allow for trim flange.
Hinge Side Clearance
–The installation of 3/4" (19 mm) thick side panels requires less clearance because the space
between the door and adjacent countertop is wider.
• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.
IMPORTANT: Before finalizing specifications for your GE Profile Performance™
CustomStyle™ Refrigerator, Please NOTE:
24"
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
36"
Electrical
25"
Counter
Top
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™
GE Answer Center
Total volume and shelf
VOLUME and
area are calculated by the
SHELF AREA
Association of Home
Manufacturer Certified to
Appliance Manufacturers'
R
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
standards.
®
™
or GE appliance questions, call
® service, 800.626.2000.
Listed by
®
Underwriters
Laboratories
C U
