GE Profile Performance CustomStyle TNX22BACBB Specification

TNX22BACWW - GE Profile Performance

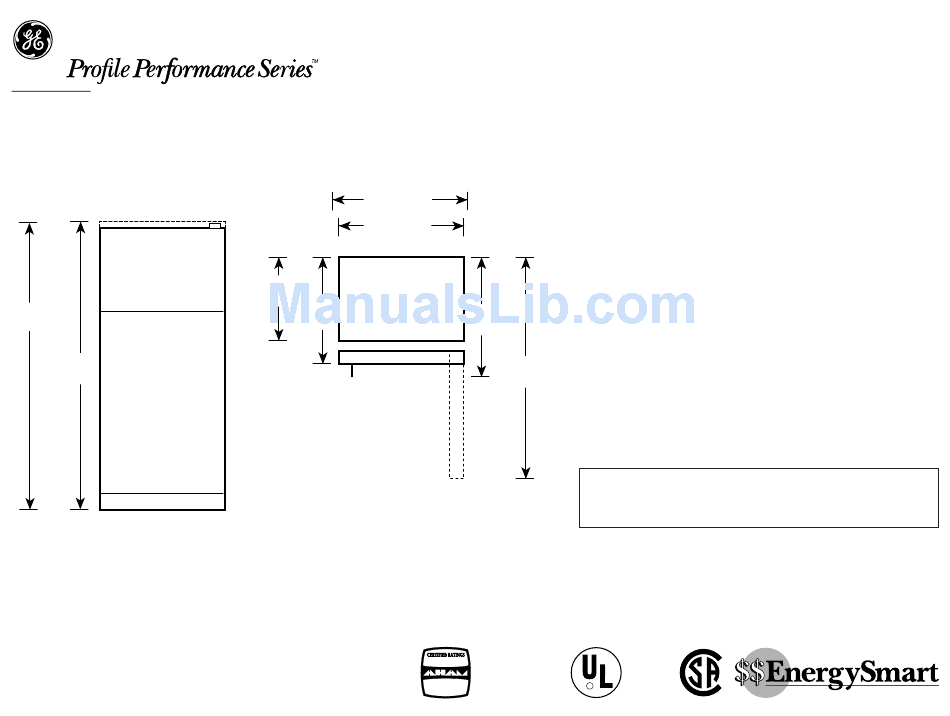

Case Dimensions (in inches/cm.)
69-7/8
70-7/16
Front View
Specification Revised 10/99
™ 21.9 Cu. Ft. CustomStyle
36-5/8
35-3/4
23-3/4
26-3/4
Top View
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
™ No-Frost Top-Freezer Refrigerator
Clearances
Handle Side Clearance
–At least 2" (51 mm) on the handle side for fingertip clearances.
Top and Bottom Clearance
–At least 3/16" (4.75 mm) at the top and bottom edges to allow for
trim flange.
Hinge Side Clearance
• A 3/4" (19 mm) thick door panel may strike thje adjacent countertops
when the door is fully opened. Therefore, the hinge side clearance to
raised panel will vary according to installation situation.
28-3/8
–Allow 1-3/4" (44 mm) clearance when installation does not include
side panels.
–The installation of 3/4" (19 mm) thick side panels requires less
61
clearance because the space between the door and adjacent
countertop is wider.
• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.
IMPORTANT: Before finalizing specifications for your GE Profile Performance
CustomStyle ™ Refrigerator, Please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center
Total volume and shelf
area are calculated by the Listed by
Association of Home Underwriters
Appliance Manufacturers' Laboratories
R
standards.
®
™
service, 800.626.2000.
®
®
C US
™
