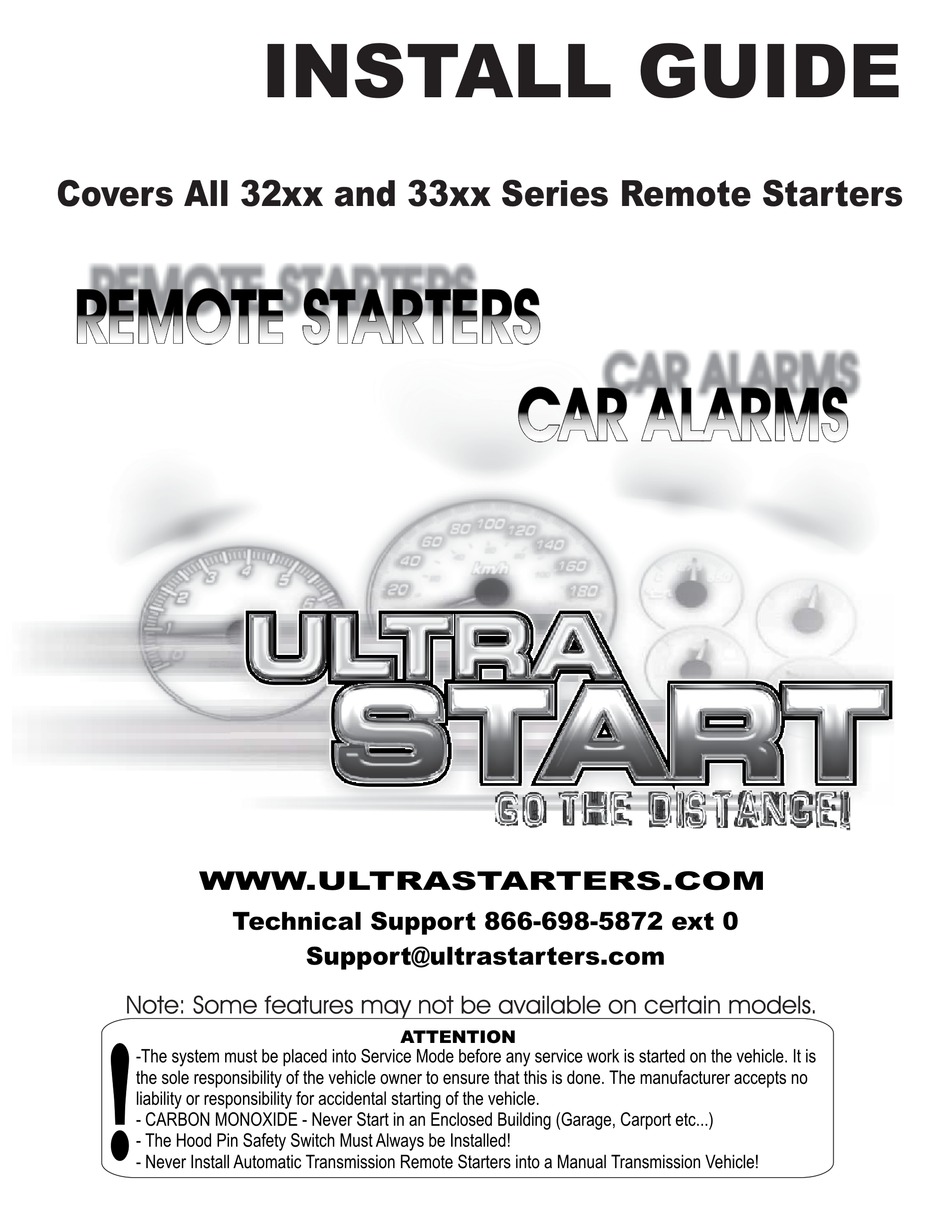

INSTALL GUIDE Covers All 32xx and 33xx Series Remote Starters REMOTE STARTERS CAR ALARMS ü WWW.ULTRASTARTERS.COM Technical Support 866-698-5872 ext 0 Support@ultrastarters.com -The system must be placed into Service Mode before any service work is started on the vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 4 Recommended Installation Procedures Proper Connections - Remote Starters can handle loads of up to 30 amps for extended periods of time. It is critical to insure that all high current connections are properly soldered and insulated with quality electrical tape.
Page 6
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 6 Wiring Diagram 14 pin connector YELLOW 30amp Output Starter Output GREEN 30amp Output Heater/Acc Output 30amp Input Power Input 30amp Input Power Input Selectable Output 30amp Output WHITE 30amp Output Ignition Output BLUE (-)250ma Output Factory Re-arm Output...
Page 7
INSTALLATION MANUAL 2WAY REMOTE STARTER/ ALARM Page 7 Wiring Diagram auxiliary connectors * The centre pin of the keyless entry harness is not to be used for anything besides plug-in devices such as the VP-1, DL-3, DL-7 and Data Bus Modules. Overloading this output will damage the remote starter.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 8 6 Pin Power Connector 6-pin Description Test For Wire 1-Yellow 30amp Starter Output - This wire will test 0volts in off, accessory and in the ignition position.12volts during start only. 2-Green 30amp Heat/Acc Output - This wire will test 0volts in the off position 12- 14volts in the accessory and run positions and 0 volts during start 3-Red 30amp Power Input - 12volts at ignition harness or from battery.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 10 Step 1 - Connect All Of the Following Wires 6 Pin Power Connector Yellow 30amp Starter Output - 12volts during start position only. Green 30amp Heater Output - 12volts in the accessory position off during start and 12volts during run.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 11 Manual Transmission “M” Models Never install an automatic transmission remote starter into a manual transmission vehicle!!! Doing so may result in serious injury or death. Do not install remote starters in convertible vehicles! The following wires must be connected In addition to the basic remote starter installation.
Page 12
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 12 Auto Tach Learn 1) Turn the ignition key to the “ON” position. (The park lights will turn on*). 2) Start the vehicle with the key, The LEDs on the antenna will turn on if a proper tach signal is detected**, then after 30-35 seconds the park lights will flash and the horn (Optional) will honk twice to confirm Tach Learn.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 13 Important Tach Notes Tach Learning the remote starter is one of the most important steps in the installation process. Do not tach learn vehicle while the engine is in high idle. To ensure the best possible tach setting, ensure that the vehicle is at low idle/ normal operating RPM.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 14 Entering Program Mode 1) With the ignition in the OFF position, turn the ignition key from “Off” to “On” 3 times, ON-OFF-ON-OFF-ON within three seconds. (Leave the key in the ON position) 2) Press and release the Program Button located on the antenna.
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 15 Quick View Programming * See the following pages for more detailed programming instructions. Menu 1 - Press Lock 1 Flash 2 Flashes 3 Flashes 1 Ignition Lock Enabled Lock Only Disabled 2 Horn Honk Type 1 Type 2 All Honks...
Page 16
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 16 Menu 1- User Settings 1 2 3 Press and Ignition 3x Press and Press and Release the On/Off Release the Hold the Ignition ON-OFF-ON-OFF-ON Program Switch On/Off On Program Program Switch Press button 1x =Setting 1 Press &...
Page 17
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER 1 2 3 Menu 2- Additional Settings Press and Ignition 3x Press and Press and Release the On/Off Release the Hold the Press button Ignition ON-OFF-ON-OFF-ON Program Switch On/Off On Program Program Switch 2 to enter 1x =Setting 1 Press &...
Page 18
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 18 Menu 3- Starter Settings 1 2 3 Ignition ON-OFF-ON-OFF-ON Ignition 3x Press and Press and Press and Press & Release Program Button Release the On/Off Release the Hold the Press button Program Switch On/Off On Program Program Switch...
Page 19
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 19 Menu 3- Starter Settings - Continued From Previous Page Setting 4 Run Time 4 Minutes 1 Flash/Honk Runs for approximately 4 minutes when activated. 2) 45 Minutes 2 Flashes/Honks Runs for approximately 45 minutes when activated. *3) 15 Minutes 3 Flashes/Honks Runs for approximately 15 minutes when activated.
Page 20
INSTALLATION MANUAL REMOTE VEHICLE STARTER Page 20 Menu 4- Tach Settings 1 2 3 Ignition 3x Press and Press and Press and Release the On/Off Release the Hold the Press button Program Switch On/Off On Program Program Switch 4 to enter 1x =Setting 1 Button 1x = Option 1...
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 21 Transmitter Programming Step 1 - Within 3 seconds turn the ignition ON-OFF-ON-OFF-ON - Leaving Key ON Step 2 - Press and hold the Program Button - The park lights will turn ON and the siren will chirp once.* Continue to hold the Program Button, the park lights will turn off and the siren will chirp 5 times quickly.
Page 22
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 22 Negative Type Door Locks 250ma Vehicle Lock To Control Lock/Unlock Relay or Switch Actuators lock Green Blue Negative Door Locks (More Than 250ma) Fused +12V Vehicle Ground Lock/Unlock Lock lock Switch Green Blue To Control Relay or Actuator...
Page 23
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 23 5 Wire / Reverse Polarity Type Door Locks Fused +12V Green Blue Vehicle Lock Lock/Unlock To Actuator Switch lock Aftermarket Doorlock Actuators Ground Vacuum Type Door Locks DIAGNOSTICS Ground Fused +12V Green Blue Lock To Vacuum...
INSTALLATION MANUAL 2WAY REMOTE VEHICLE STARTER Page 24 DIAGNOSTICS If the remote starter does not activate when the start button is pressed the park lights will flash a diagnostic to indicate what shutdown input has been triggered. For example when the start button is pressed the park lights flash 3 times slowly. Looking at the chart below this would indicate that the system is in Service Mode, simply follow the instructions listed in the owners manual on exiting Service Mode and the remote starter will begin to function as normal.
