PSI23SGN—GE Profile Arctica

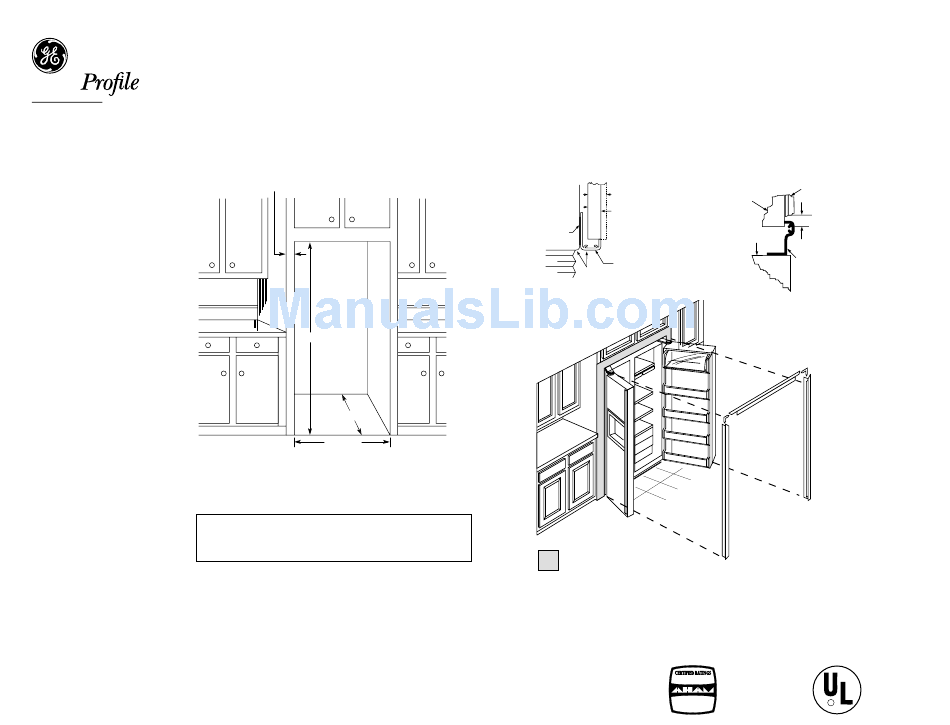

Collar Trim Installation
An enclosure is required to match up to
the trim, see Typical Installation. To
obtain the most integrated look, the
cabinet or soffit above the refrigerator
should extend out to the same depth as
the side panels. The refrigerator opening
must have minimum dimensions of
70-1/4" high x 36-1/8" wide x 24-1/2"
deep as shown at right. If there is an
overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels
are used, then side trim and panel will
be even. If 3/4" side panels are used,
then some of the side panel will extend
beyond the trim and must be finished.
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above
the refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2")
to height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
IMPORTANT: Before finalizing specifications for your GE Profile
CustomStyle Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36-1/8" minimum
Specification Created 11/01
™ 22.7 Cu. Ft. CustomStyle
1/2" minimum
70-1/4"*
24-1/4"*
36-1/8"
™ Side-by-Side Refrigerator with Dispenser
3/4" Cabinet
Refrigerator
Side Panel
Case
1/2" Cabinet
Side Panel
Magnetic
Tape
Door Gasket Side Trim
Side trim must be installed
flush with the gasket contact
surface on the case.
Typical Installation
Shaded areas represent front surfaces of
side panels and overhead cabinet or soffit that contacts trim.
Cabinet
Overhead Door
Cabinet
1"
Case
Top Trim
