PSI23SGN—GE Profile Arctica

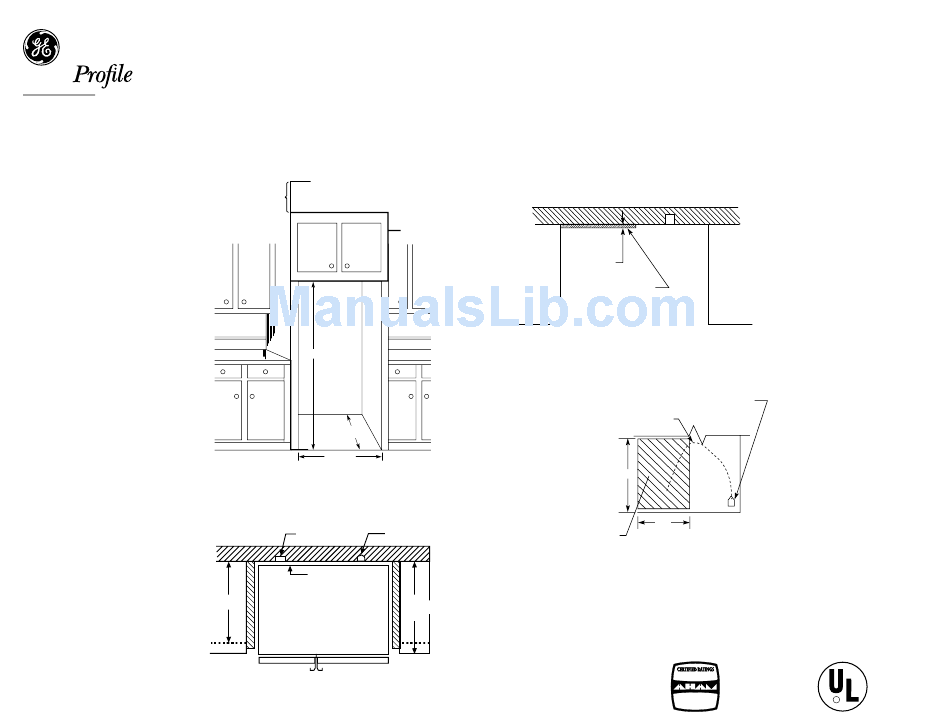

Rough-In Dimensions
Standard, New Construction
and Replacement Installation
• All wall/floor molding should
be removed prior to installation.
• Water recess on rear wall
recommended to prevent water line
damage. 48" minimum length
1/4" diameter water line tubing
recommended.
• When possible, recess both copper
water line and electrical outlet.
(See local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner's manual)
• If optional collar trim kit is to
be used or anticipated, see collar
trim installation on next page for
different rough-in dimensions.
Specification Created 11/01
22.7 Cu. Ft. CustomStyle
™
8' Ceiling
12"
Soffit
70-1/4"*
24-1/2"
36-1/8"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Electrical
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Side-by-Side Refrigerator with Dispenser
™
Installation of Water and Electrical Outlets
13" to 14"
Cabinet
Recommended single loop
of 1/4" copper water line
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
Recommended water line
location using recess
in rear wall
25"
Counter
Top
1/2"
Alternate
water
line location
through floor
Top View
Water hook-up
on the refrigerator
24"
18"
Rear Wall View
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
Total volume and shelf
VOLUME and
area are calculated by the
SHELF AREA
Association of Home
Manufacturer Certified to
Appliance Manufacturers'
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
standards.
®
