True TRCB-36 Product Review

2001 East Terra Lane • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TRCB-36
ROUGH-IN DATA
Model Drawers
TRCB-36 2
† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.
T R
RUE EFRIGERATION
®
MADE IN
U.S.A.
SINCE 1945
11/12
TRUE FOOD SERVICE
EQUIPMENT, INC.

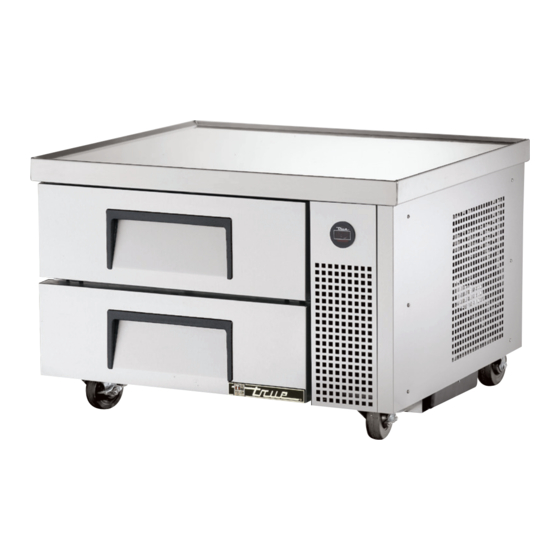

Chef Base:
Drawered Refrigerator
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
(mm)
L D† H*
363/8 321/8 203/8
924 816 518
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
HP Voltage
1/5 115/60/1
1/3 230-240/50/1
APPROVALS:
Qty:
TRCB-36

True's refrigerated chef bases are
designed with enduring quality that
protects your long term investment.

Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety
and the best value in today's food
service marketplace.

Oversized, environmentally friendly
(134A) forced-air refrigeration
system holds 33°F to 38°F (.5°C to
3.3°C).

Cabinet top is one piece, heavy
duty reinforced stainless steel. Drip
resistant "V" edge protects against
spills. Supports up to 717 lbs. (326
kg).

All stainless steel front, top and
sides. Matching aluminum finished
back.

Each drawer accommodates one (1)
12"L x 20"W x 4"D (305 mm x 508
mm x 102 mm) full size and three (3)
6"L x 6"W x 4"D (153 mm x 153 mm
x 102 mm) 1/6size food pans (sold
separately).

Heavy-duty stainless steel drawer
slides and rollers. Removable
without tools for easy cleaning.

Foamed-in-place using Ecomate.
A high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and zero
global warming potential (GWP).
Specifications subject to change without notice.
(millimeters rounded up to next whole
Cord
Length
NEMA (total ft.)
Amps Config. (total m)
5.7 5-15P 7
▲
2.6 2.13
▲Plug type varies by country.
AVAILABLE AT:
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
280
127
