USB .0 Docking Station User Guide

Hardware features

1
VGA
8
9

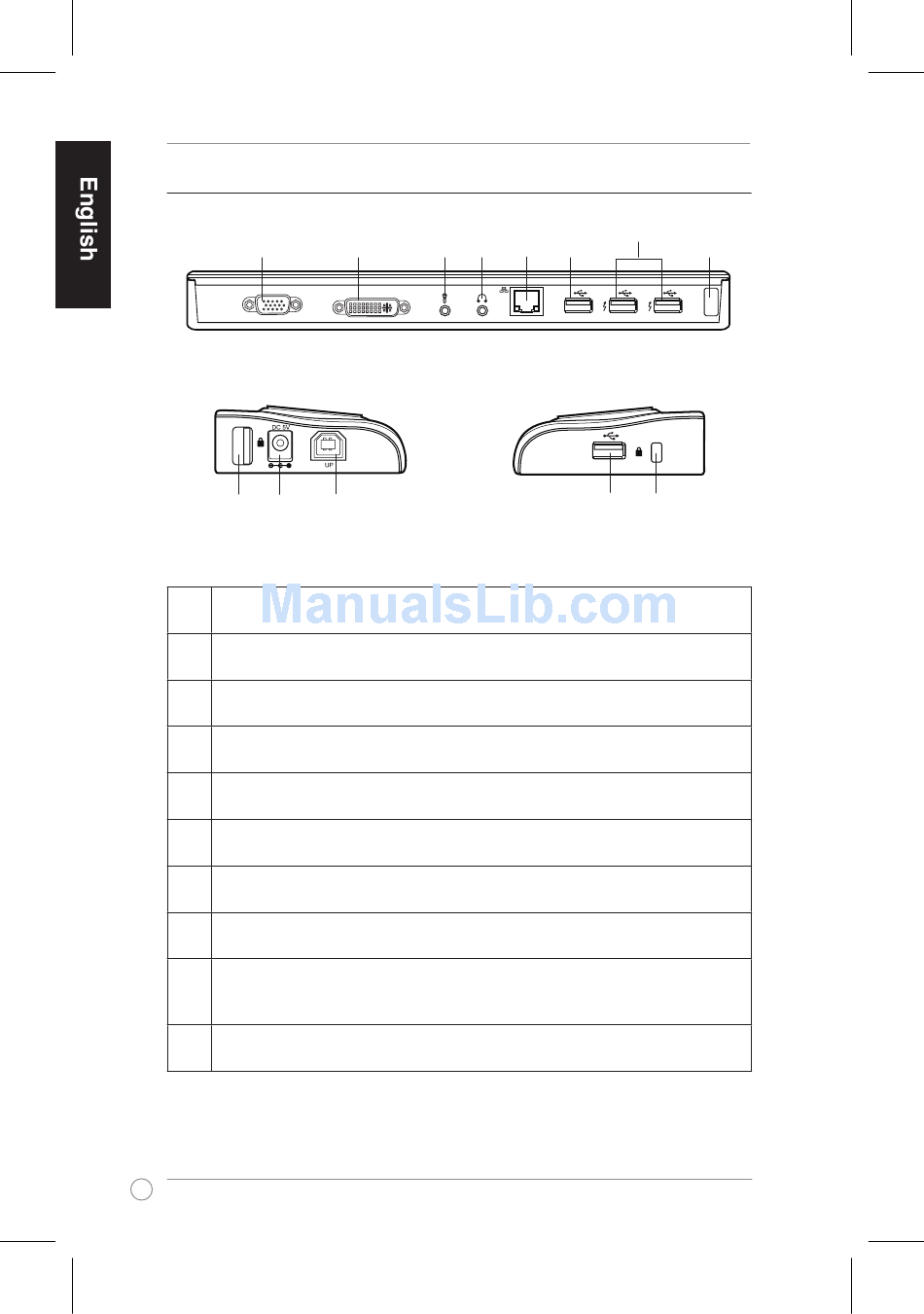

Left side view
1 VGA port
Connects to a VGA monitor or other VGA compatible devices.
 Dual Link DVI-I port
Connects to a DVI-I monitor or other DVI-I compatible devices.
3 Microphone port
Connects to a microphone.
4 Headphone port
Connects to a pair of headphones or a speaker.
5 10/100Mbps LAN (RJ-45) port
Connects to a cable/DSL modem or a local area network (LAN).
6 Standard USB 2.0 downstream port
Connects to a USB 2.0 device such as a mouse and joystick.
7 Powered USB 2.0 downstream port
Connects to a USB 2.0 device and supplies more power than the standard port.
8 Security lock hole
Secure your docking station to an immovable object using a security lock.
9 DC IN port
Insert the power adapter into this port to supply power to your docking station and
the devices connected to it.
10 USB 2.0 upstream port
Connects and passes data to your computer.
