Summary of Contents for Weslo Gym 1000

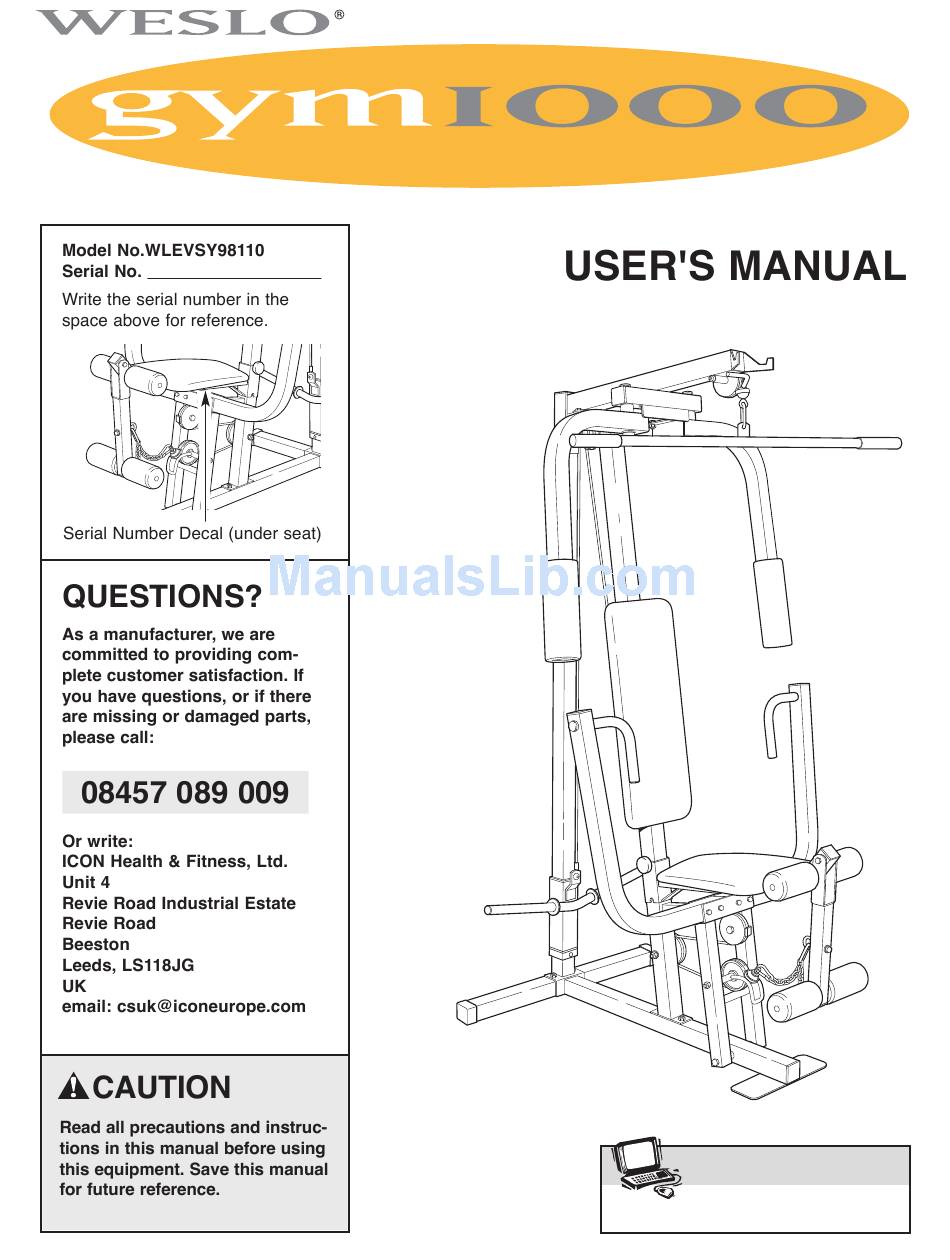

- Page 1 Visit our website at www.iconeurope.com...
- Page 3 Always disconnect the lat bar from the weight system when performing an exercise that does not use the lat bar.
- Page 23 9 21...
- Page 24 M6 x 16mm Screw (18) M10 Washer (9) 25mm Round Cover Cap (62) M10 x 20mm Bolt (69) M8 Washer (68) M6 x 50mm Screw (24) M6 Washer (10) M10 x 45mm Bolt (71) 25mm Round Inner Cap (49) M10 x 50mm Bolt (12) M10 Nylon Locknut (21) M6 x 50mm Carriage Bolt (38) M8 Nylon Locknut (3)
- Page 25 M6 x 63mm Screw (43) M10 x 60mm Bolt (7) M8 x 63mm Bolt (22) 50mm Square Outer Cap (51) M8 x 63mm Carriage Bolt (1) M8 x 67mm Bolt (72) M8 x 70mm Bolt (11) 50mm Square Inner Cap (27) M8 x 67mm CarriageBolt (14) M10 x 87mm Bolt (25) 45mm Square Inner Cap (44)
- Page 26 90mm Pulley (15) (Not shown to scale) "V"-Pulley (6) (Not shown to scale)
