Summary of Contents for dbx Zone Pro 640

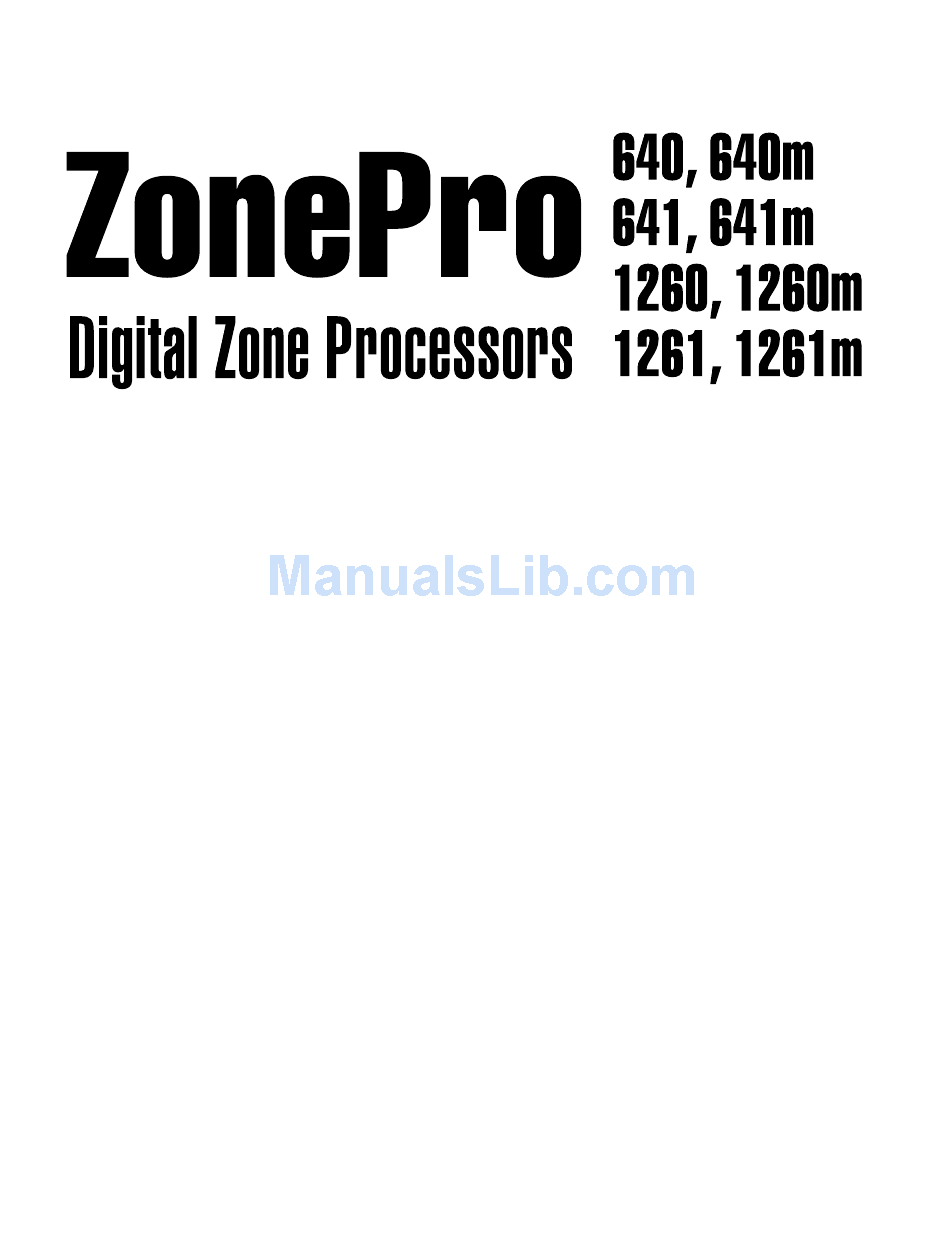

  • Page 1 Installation Guide...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING FOR YOUR PROTECTION READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASHING LIqUID AND NO ObjECT FILLED WITHI LIqUID, the symbols shown above are internationally accepted symbols that warn of potential SUCH AS vASES, SHALL bE PLACED ON THE APPARATUS.
  • Page 3 84070, usA sandy, utah 84070, usA date: April 6, 2009 date: April 6, 2009 european contact: Your local dbx sales and service office or european contact: Your local dbx sales and service office or harman music Group harman music Group...
  • Page 4: Table Of Contents

    ZonePro Table of Contents Section 1 - Introduction ......1 1.2 Service Contact Info ....... 2 1.3 Warranty ........3 Section 2 - Getting Started ...... 4 2.1 640/640m, 1260/1260m Front Panels ..........4 2.2 641/641m, 1261/1261m Front Panels ..........6 2.3 640/641, 640m/641m Rear Panel ..
  • Page 5: Section 1 - Introduction

    ZonePro Section 1 Introduction Section 1 - Introduction The ZonePRO™ family of Digital Zone Processors consists of eight devices with different functionality. Each device, with optional control from an extensive range of Zone Controllers, represents an inexpensive and quickly-deployed solution for a diverse range of commercial audio applications.
  • Page 6: Service Contact Info

    After expiration of the warranty, a reasonable charge will be made for parts, labor, and packing if you choose to use the factory service facility. In all cases, you are responsible for transportation charges to the factory. dbx will pay return shipping if the unit is still under warranty.
  • Page 7: Warranty

    In no event shall dbx or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.
  • Page 8: Section 2 - Getting Started

    ZonePro Section 2 Getting Started Section 2 - Getting Started 2.1 640/640m, 1260/1260m Front Panels 640 Front Panel 640m Front Panel 1260 Front Panel 1260 Digital Zone Processor Digital Zone Processor SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT 1260m Front Panel SELECT SELECT SELECT...
  • Page 9 ZonePro Section 2 Getting Started Data Wheel The Data wheel is used to select and edit parameter values. Page Buttons Allow paging microphone path selection and page steering. Output Meter Six-segment output meter representing -30dBu to +20dBu. Output Select Button Allows selection of output for front panel control.
  • Page 10: 641/641M, 1261/1261M Front Panels

    ZonePro Section 2 Getting Started 2.2 641/641m, 1261/1261m Front Panels 641 Front Panel 641m Front Panel 1261 Front Panel ZonePRO1261 Digital Zone Processor NETWORK POWER TRAFFIC 1261m Front Panel PC Connection This DB-9 connection is used to communicate to the PC via RS-232 protocol. Power LED This LED (when lighted), indicates that the ZonePro 641 is currently powered.
  • Page 11: 640/641, 640M/641M Rear Panel

    ZonePro Section 2 Getting Started 2.3 640/641, 640m/641m Rear Panel 640/641 Rear Panel 640m/641m Rear Panel RS-232 OUTPUTS SOURCE MIC/LINE MIC/LINE ZC INPUT LINK INPUT (R) CLIP CLIP (R) (R) CLIP CLIP (R) (G) SIGNAL SIGNAL (G) (G) SIGNAL SIGNAL (G) MIC GAIN MIC GAIN MIC GAIN...
  • Page 12 ZonePro Section 2 Getting Started Ethernet Connector (640m, 641m, 1260m, and 1261m only) Ethernet connector for configuration, control, monitoring and third party control. ZC Ports Allow connection of up to 12 ZC controllers (six per port) for control of ZonePRO parameters. Analog Outputs Balanced connections for analog audio outputs.
  • Page 13: Section 3 - Wiring

    ZonePro Section 3 Wiring Section 3 - Wiring 3.1 ZonePro Wiring Zone Controller Installation The installation of the Zone Controllers MUST be accomplished with the use of cable which is rated VW-1 or higher. Common NEC designations which meet this rating include: CMP, CMR, CMG, CM and CMX.
  • Page 14 ZonePro Section 3 Wiring Diagram A Diagram B ID# 1 ID# 4 80-1342-A 80-1342-A RS-232 Diagram C RS-232 ®...
  • Page 15 ZonePro Section 3 Wiring Cable Specification: EIA/TIA 568A Standard (pin to pin) 24 AWG wire RJ-45 RJ-45 (8-Position) (8-Position) White/Green -VREF Green -Dip 1 White/Orange -Dip 2 Blue -Dip 3 White/Blue -Dip 4 Orange -Dip 5 White/Brown -Dip 6 Brown -GND Diagram A RS-232...
  • Page 16 ZonePro Section 3 Wiring SC 32 / 64. ®...
  • Page 17: Section 4 - Appendix

    ZonePro Appendix Block Diagrams Section 4 - Appendix 4.1 ZonePro 640m/641m Block Diagram Zone Pro 640m/641m Block Diagram Ethernet Jack 1 1261 only Jack 2 Link In/Out Link In/Out Output 1 Output 2 Output 3 Output 4 Output 5 Link In/Out Output 6 Link In/Out ®...
  • Page 18: Zonepro 1260M/1261M Block Diagram

    ZonePro Appendix Block Diagrams 4.2 ZonePro 1260m/1261m Block Diagram Zone Pro 1260m/1261m Block Diagram Ethernet Jack 1 1261 only Jack 2 Link In/Out Link In/Out Output 1 Output 2 Output 3 Output 4 Output 5 Output 6 Link In/Out Link In/Out Link In/Out Link In/Out S/PDIF...
  • Page 19: Section 4 - Technical Specifications

    120 Ω balanced, 60 Ω unbalanced Impedance: Max Output Level: +20dBu A/D Performance: Type: dbx Type IV™ conversion system Dynamic Range line: >113 dB A-weighted, >110 dB unweighted Type IV dynamic range: >119 dB, A-weighted, 22kHz BW >117 dB, unweighted, 22kHz BW...
  • Page 20 100-240 VAC, 50/60Hz for more information on purchasing replacement parts or product service. Power Requirements: 27 Watts dbx® has a policy of continued product Physical: improvement and accordingly reserves Weight: 6.0 lbs.(2.7 kg) Shipping weight 8.0 lbs. (3.6 kg) the right to change features and Dimensions: 1.75”...
  • Page 21 120 Ω balanced, 60 Ω unbalanced Impedance: Max Output Level: +20 dBu A/D Performance: Type: dbx Type IV™ conversion system Dynamic Range line: >113 dB A-weighted, >110 dB unweighted Type IV dynamic range: >119 dB, A-weighted, 22 kHz BW >117 dB, unweighted, 22 kHz BW...
  • Page 22 Impedance: Max Output Level: +20 dBu A/D Performance: Type: dbx Type IV™ conversion system Dynamic Range line: >113 dB A-weighted, >110 dB unweighted Type IV dynamic range: >119 dB, A-weighted, 22 kHz BW>117 dB, unweighted, 22 kHz BW Sample Rate:...
  • Page 23 ZonePro ®...
  • Page 24 ® 8760 South Sandy Parkway • Sandy, Utah 84070 Phone: (801) 568-7660 • Fax (801) 568-7662 Int’l Fax: (801) 568-7583 Questions or comments? Contact us at www.dbxpro.com Printed in the USA 18-0676-A...
