ZonePro 640/641 Application Guide

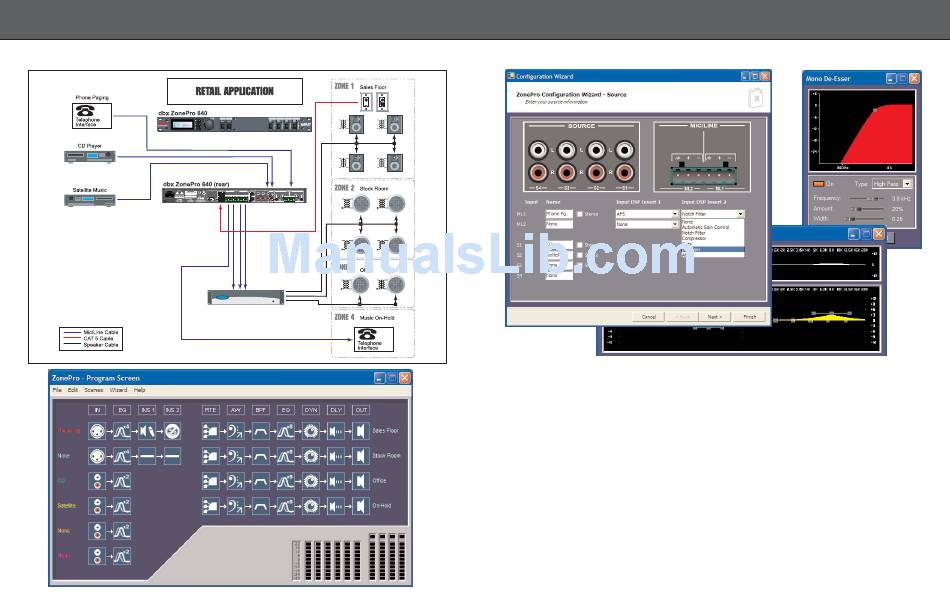

Notes - Retail Application

1. The configuration is setup from the Wizard function and is used to select the main inputs
to each zone except the sales floor where the ZCs are selected as the source and level.
2. All paging is done from the phone page interface and can be steered to the sales floor,
the stock room, and the office, but not the music on-hold. Page steering is done from
the front panel of the ZonePro 640.
3. The Zone Controllers are wired with CAT5 cable in series with the ZC-3 (Source Selection)
as ID #1, and ZC-1 (Volume) as ID #2, and are placed next to the cash register.
4. EQ, Feedback Suppression and De-Essing are used on the phone page input to help
improve intelligibility and reduce unwanted feedback in the system.
5. The Bandpass Filters are used to reduce the out of band information being sent to the
speakers so their efficiency can be maximized.
6. EQ is used in all zones to make the system sound as good as possible.
7. Auto Gain Control is being used on all output zones to maintain the signal level.
ZonePro 640/641 Application Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZonePro 640 and is the answer not in the manual?

Questions and answers

Summary of Contents for dbx ZonePro 640

  • Page 1 2. All paging is done from the phone page interface and can be steered to the sales floor, the stock room, and the office, but not the music on-hold. Page steering is done from the front panel of the ZonePro 640. 3. The Zone Controllers are wired with CAT5 cable in series with the ZC-3 (Source Selection) as ID #1, and ZC-1 (Volume) as ID #2, and are placed next to the cash register.
  • Page 2 ZonePro 640/641 Application Guide Notes - Restaurant/Bar Application 1. The ZonePro 640 is located in the manager’s office and provides source selection for the waiting area. 2. Both the restaurant and the bar area have ZC controllers. The bar is using them for source selection and volume control, the ZC-1 in the restaurant is used for volume control, and the ZC-3 is used for scene changes.
  • Page 3 ZonePro 640/641 Application Guide ZonePro 640/641 Application Guide Notes - Health Club Application 1. The ZonePro 640 units are located near the front desk area. 2. ZCs in the weight room ands the aerobics room allow source selection and volume control.
  • Page 4 ZonePro 640/641 Application Guide ZonePro 640/641 Application Guide Notes - Nightclub Application 1. The ZonePro 640 units are located in the manager’s office. 2. The ZCs in the nightclub are situated near the bar and allow source selection and volume control.
