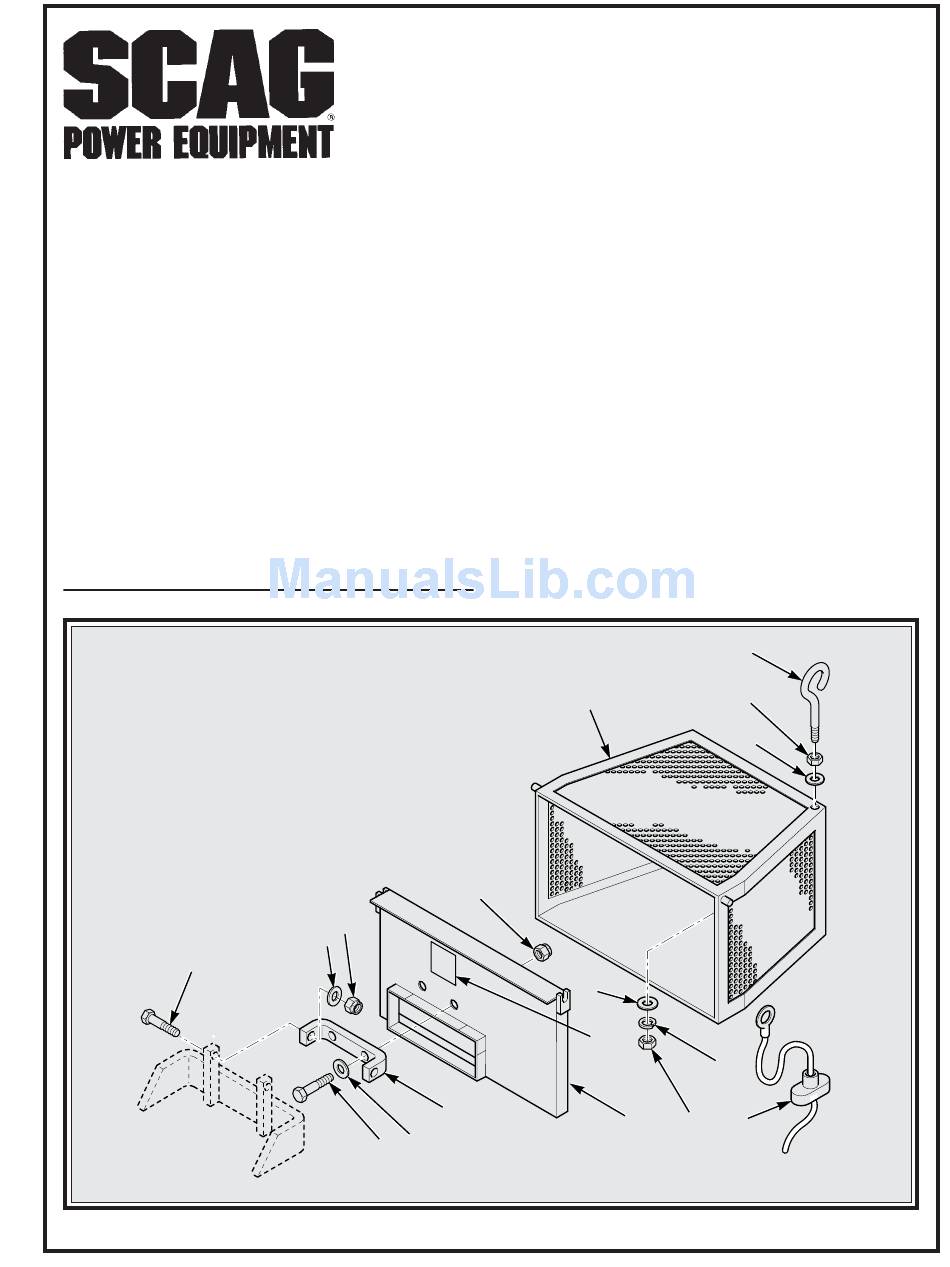

- Page 1 OPERATOR'S MANUAL MODEL GC-4D GRASS CATCHER GC-4D SC300G PART 03174...
-
Page 2: Safety Instructions
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR! FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY. This manual covers the operating instructions and illustrated parts list for: GC-4D Grass Catcher Accessories... - Page 3 ADVANTAGE CUTTER DECK INSTALLATION INSTRUCTIONS Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment. Remove the discharge chute from the cutter deck. Retain all mounting hardware as the discharge chute must be reinstalled whenever the grass catcher is removed.
- Page 4 ADVANTAGE CUTTER DECK INSTALLATION INSTRUCTIONS Install the mounting bracket (item # 3, Figure 3) to the cover weldment (item # 2, Figure 3) and secure with the hardware provided. Do not tighten the hardware. -NOTE- There are two (2) mounting brackets included with this grass cacther. The mounting bracket for Advantage cutter decks is longer than the mounting bracket for Velocity Plus cutter decks.
- Page 5 VELOCITY PLUS CUTTER DECK INSTALLATION INSTRUCTIONS Install the grass catcher filler plate (item # 2, Figure 4, page 6) as shown In Figure 4. There are two (2) mounting slots in the grass catcher filler plate. Reference Figure 2 below for the correct mounting slot for the deck size this catcher will be mounted on. Secure using the hardware provided and tighten.
- Page 6 Grass Catcher GC-4D for Advantage Cutter Decks Figure 3 SC300GA Ref. Part Number Description Catcher Box (Not available as spare part) 46452 Cover Weldment W/Decal 42211 Mounting Bracket 46043 Pull Rope Assembly 04070-01 Eyebolt, 5/16-18 x 2.25" 04030-03 Lock Washer, 5/16...
- Page 7 Grass Catcher GC-4D for Velocity Plus Cutter Decks Figure 4 Ref. Part Number Description Catcher Box (Not available as a spare part) 424355 Filler Plate, Grass Catcher Velocity Plus Decks 46452 Cover Weldment With Decal 424357 Bracket, Mounting 482293 Decal, Danger 04001-20 Bolt, 3/8-16 x 1.50"...
- Page 8 NOTES...
- Page 9 The expense of delivering the accessory to the dealer for warranty work and the expense of returning it back to the owner after repair or replacement will be paid for by the owner. Scag’s responsibility in respect to claims is limited to making the required repairs or replacements, and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Scag machine.
- Page 10 © 2005 PART NO. 03174 SCAG POWER EQUIPMENT REVISED PRINTING 11/2005 DIVISION OF METALCRAFT OF MAYVILLE PRINTED IN USA...
