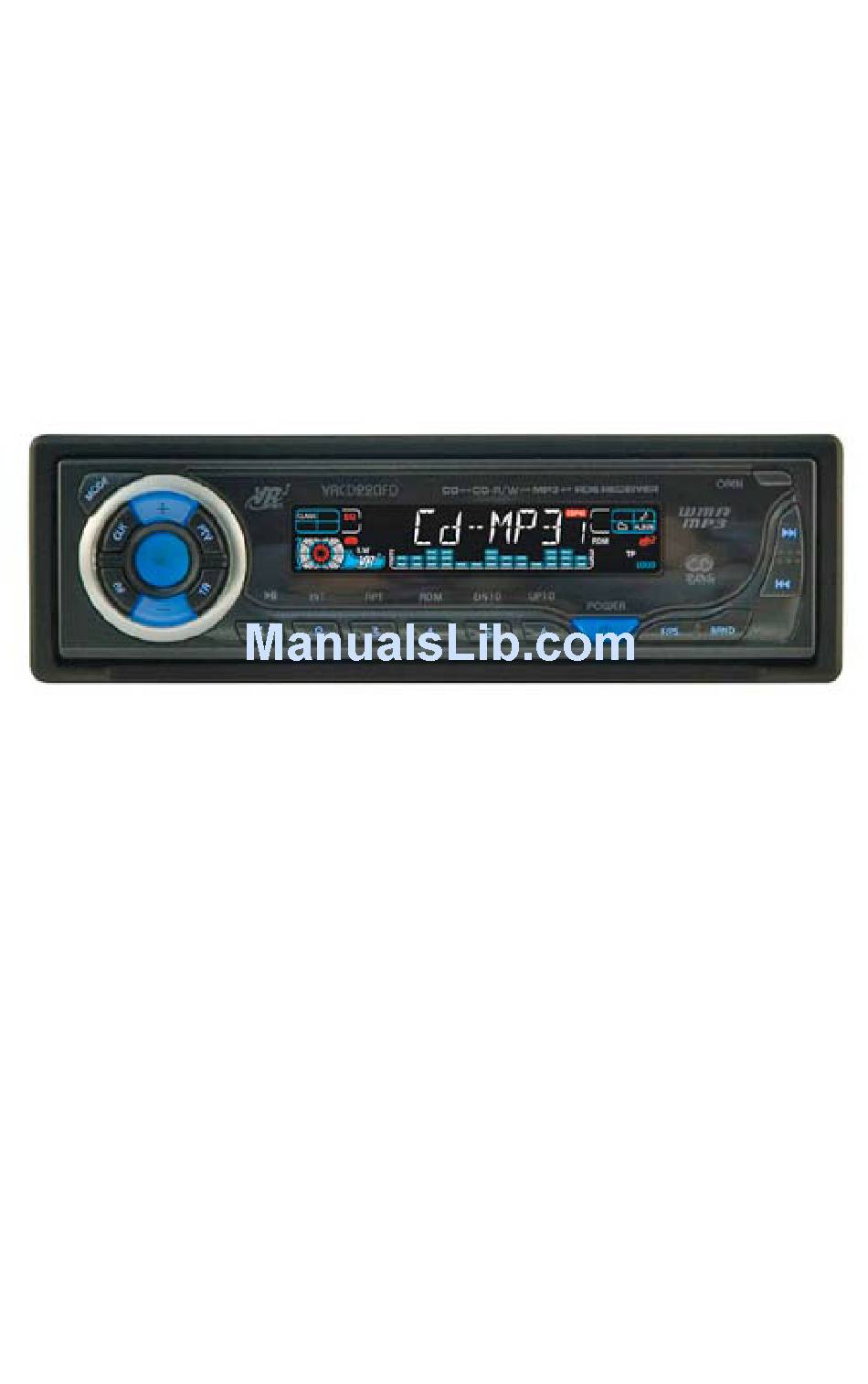

- Page 1 VRCD220FD CD/MP3/WMA Player, AM/FM Stereo Receiver with RDS, Auxiliary Input and Detachable Face...
-
Page 2: Table Of Contents
We have taken numerous measures in quality control to ensure that your product arrives in top condition and will perform to your satisfaction. In the rare event that your VRCD220FD Compact Disc Player and AM/FM Stereo Receiver with AUX In and Detachable Faceplate contains a damaged... -
Page 3: Precautions
Precautions This unit will only play the following discs. Type of disc Label on the Disc Recorded Material Size of Disc Audio only 12 cm MP3/WMA Audio only 12 cm • Do not attempt to modify the unit. • Do not operate in extremely high or low tem- •... -
Page 4: Notes On Installation
Notes on Installation • Disconnect negative battery terminal before starting installation. Consult the vehicle’s owner’s manual for proper instruction. • The unit is designed for a 12 Volt DC negative ground operation system only. Before installing the unit, make sure your vehicle is a 12 Volt DC negative ground system. •... -
Page 5: Before You Install
1-800-445-1797 and our in-house technical service team will answer your installation questions. Contact the vehicle's manufacturer for vehicle specific instructions, or consider having the VRCD220FD pro- fessionally installed. IMPORTANT: Remove the two transport screws from the top of the unit before installing. -
Page 6: Installation (Din Front Mount)
Installation DIN FRONT-MOUNT (Method A) After inserting the Mounting Sleeve Bend the tabs into the dashboard, select tabs on Dashboard to secure the Mounting Sleeve top, bottom, and sides, then bend in the dashboard. them to secure the mounting sleeve in the dash board.(Fig. -
Page 7: Installation (Vehicle's Brackets)
Installation DIN REAR-MOUNT (Method B) Installation using the screw holes on both sides of the unit. 1. Screw holes on the side of the unit. 2. Screws. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket. -
Page 8: Wiring Connections
Installation WIRING CONNECTIONS GIVE US A CALL, WE'LL HELP YOU INSTALL. PLEASE DO NOT RETURN PRODUCT TO STORE. Visit us on the WEB www.vr-3.com For Information and Technical Assistance, Call Toll-Free in U.S.A. and Canada. 1-800-445-1797... -
Page 9: Location Of The Controls
Location of the Controls 1. Clock Button 14. Pre-set #5/Down 10 2. Mode Button 15. Pre-set #4/Random 3. Volume Up Button 16. Pre-set #3/Repeat 4. SEL Button 17. Pre-set #2/Intro 5. PTY Button 18. Pre-set #1/Pause/Play 6. LCD for Track Number, Time, Radio 19. -
Page 10: Basic Operation
Basic Operation 1. Turning the Unit On / Off 9. DSP-Preset Equalizer Function Press any button to turn the unit on, 1. Press and hold the “SEL” button until WELCOME will be displayed on the LCD to you hear a beep. indicate it is ready for use. -
Page 11: Radio Operation
Radio Operation 5. Press the +/- Buttons to adjust the vol- There are six numbered preset buttons ume level. which can store and recall stations for each 6. Leave the unit idle for the new setting to band. While listening to a radio station you take effect. -
Page 12: Rds Operation
RDS Operation station. This means you do not have to sound select button again so that the unit re-tune the radio when driving between will show “MASK DPI”. different transmitter coverage areas. When Press the “+/-” Buttons to toggle between AF is on, it means RDS information is “MASK DPI”... -
Page 13: Cd Operation
CD Operation Electronic Skip Protection - 12 or 45 Press this button again to resume play- seconds back. Electronic Skip Protection is ideal for driv- 4. Scanning Tracks ing on rough roads. Press the “SEL” Button Press the No.2/INT Button to play the first until the display will show “TA SEEK”. -
Page 14: Mp3 & Wma Disc Operation
MP3 & WMA Disc Operation MP3 & WMA Disc Operation 4. Play/ Pause CD On the Head Unit, press the No.1 Button Electronic Skip Protection-120 Seconds to pause the CD. Press this button again Electronic Skip Protection is ideal for to resume playback. -
Page 15: Aux In & Rca Output
MP3 & WMA Disc Operation that “TRK” will blink on the display. AUX IN cable. Use the volume control to Then use the VOL +/- Button to choose adjust volume. your desired track and press the SEL 2. RCA Output Button again to confirm the selection. -
Page 16: Simple Troubleshooting Guide
Simple Troubleshooting Guide PROBLEM CAUSE/SOLUTION No Power Check wiring connections. Check and make sure the fuse is not blown. Replace with the proper rating/size fuse. Some errors occur in the LCD or Press the RESET Button. nothing functions when buttons are pressed. -
Page 17: Warranty
