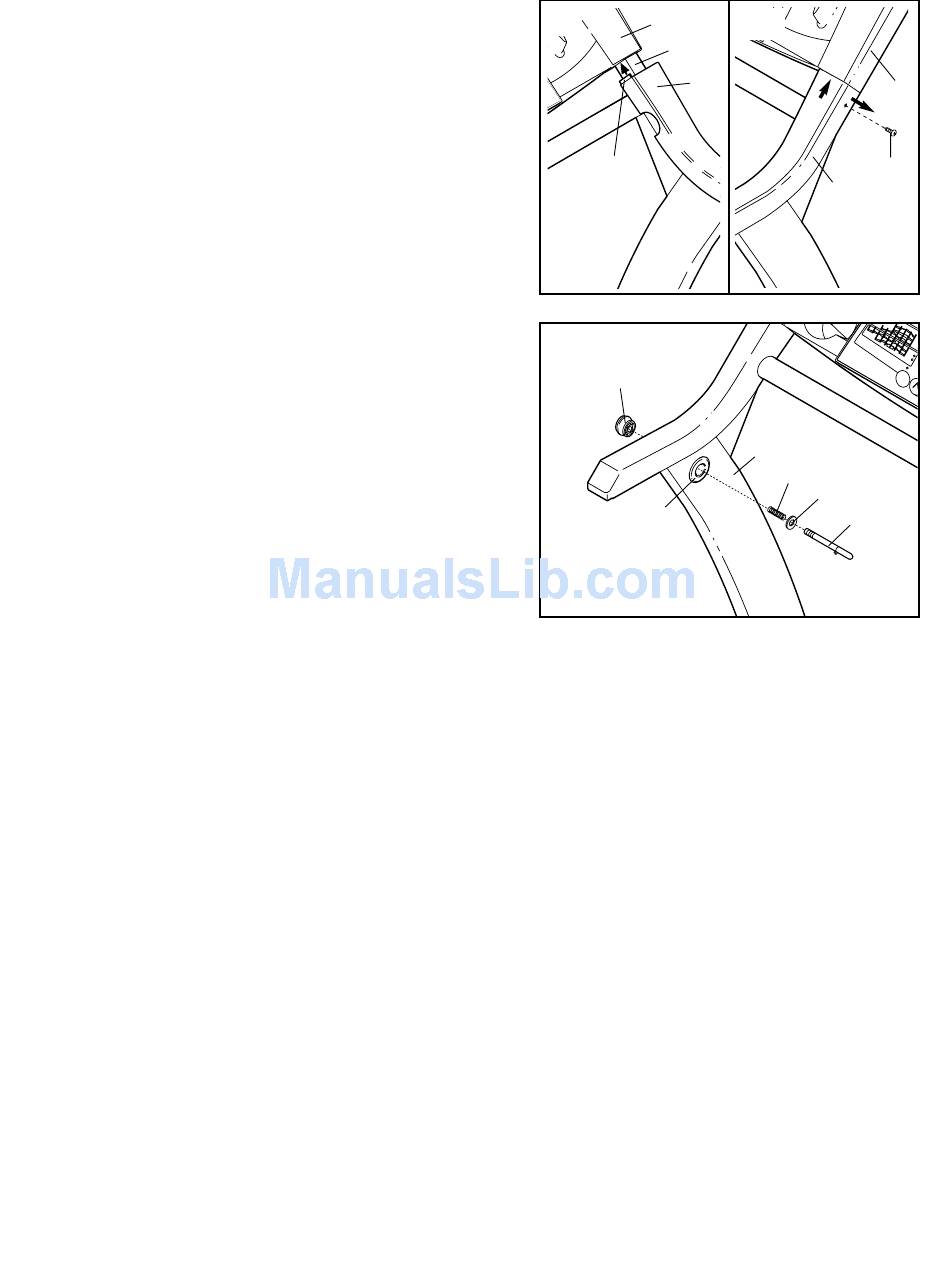

4. Refer to drawing 4a. Be sure the tab on the Right Foam
Grip (75) is inserted in the slot between the post and
Console Base (82).
Refer to drawing 4b. Make sure that the front edge of the
Right Foam Grip (75) is under the Console Base (82) as
shown. Tighten a 3/4" Screws (100) into the side of the
Right Foam Grip as shown. Note: It may be necessary to
pull the Foam Grip out (see arrow A) to align the Screw
with the hole in the post.
Attach the other Handrail Extension and Left Foam Grip
(not shown) as described in step 3 and this step.
5. Press the Lock Knob Sleeve (70) into the left Upright (69).
Make sure that the Lock Pin Collar (72) and the Spring (71)
are on the Lock Pin (74). Insert the Lock Pin into the left
Upright (69) and tighten the Lock Knob (68) onto the Lock
Pin.
6. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 23). To protect the
floor or carpet from damage, place a mat under the treadmill.
