Appendix
Appendix

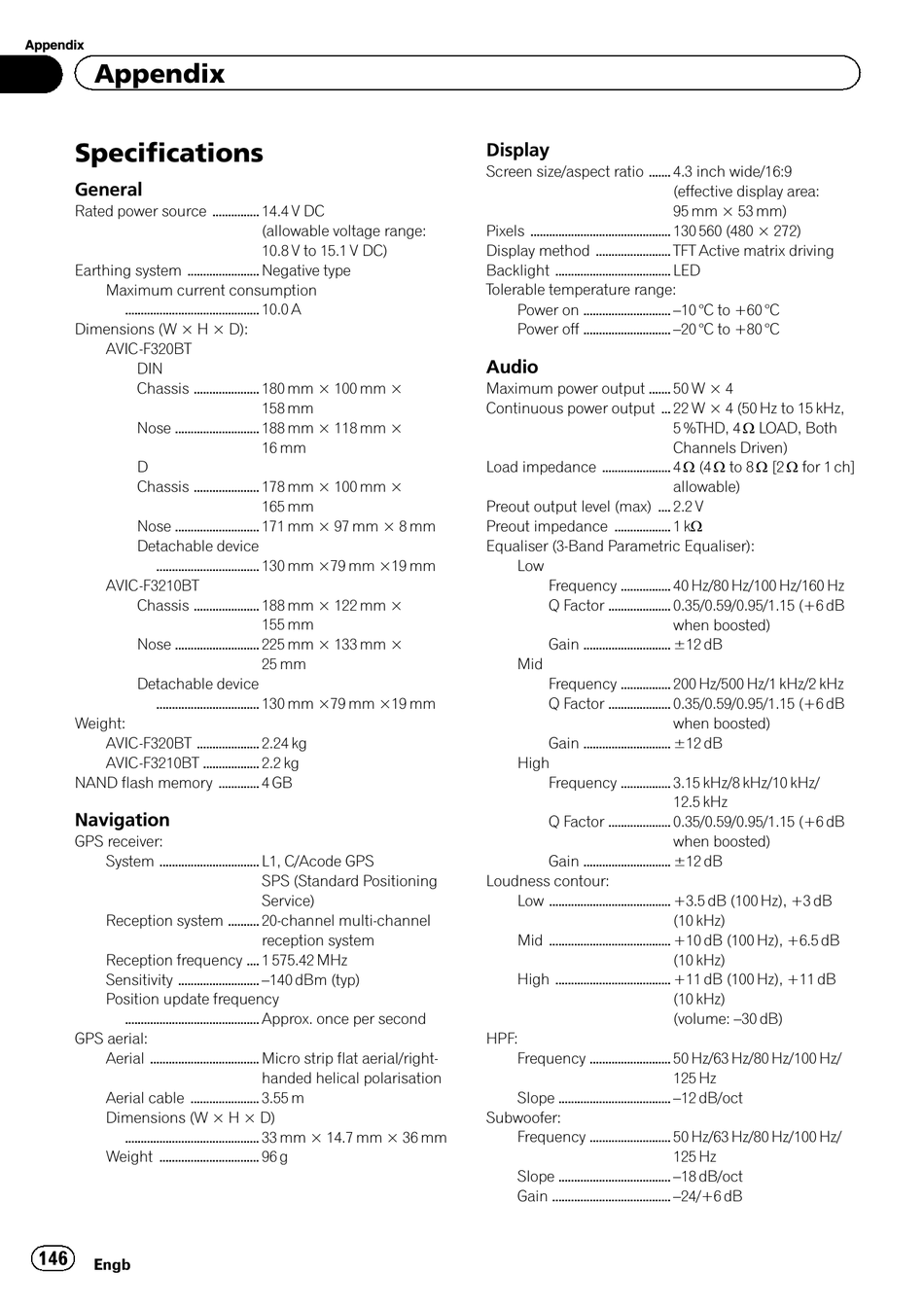

Specifications

General
Rated power source ............... 14.4 V DC
Earthing system ....................... Negative type
Maximum current consumption
........................................... 10.0 A
Dimensions (W × H × D):
AVIC-F320BT
DIN
Chassis ..................... 180 mm × 100 mm ×
Nose ........................... 188 mm × 118 mm ×
D
Chassis ..................... 178 mm × 100 mm ×
Nose ........................... 171 mm × 97 mm × 8 mm
Detachable device
................................. 130 mm ×79 mm ×19 mm
AVIC-F3210BT
Chassis ..................... 188 mm × 122 mm ×
Nose ........................... 225 mm × 133 mm ×
Detachable device
................................. 130 mm ×79 mm ×19 mm
Weight:
AVIC-F320BT .................... 2.24 kg
AVIC-F3210BT .................. 2.2 kg
NAND flash memory ............. 4 GB
Navigation
GPS receiver:
System ................................ L1, C/Acode GPS
Reception system .......... 20-channel multi-channel
Reception frequency .... 1 575.42 MHz
Sensitivity .......................... –140 dBm (typ)
Position update frequency
........................................... Approx. once per second
GPS aerial:
Aerial ................................... Micro strip flat aerial/right-
Aerial cable ...................... 3.55 m
Dimensions (W × H × D)
........................................... 33 mm × 14.7 mm × 36 mm
Weight ................................ 96 g
146
Engb
(allowable voltage range:
10.8 V to 15.1 V DC)
158 mm
16 mm
165 mm
155 mm
25 mm
SPS (Standard Positioning
Service)
reception system
handed helical polarisation
Display
Screen size/aspect ratio ....... 4.3 inch wide/16:9
Pixels ............................................. 130 560 (480 × 272)
Display method ........................ TFT Active matrix driving
Backlight ..................................... LED
Tolerable temperature range:
Power on ............................ –10 °C to +60 °C
Power off ............................ –20 °C to +80 °C
Audio
Maximum power output ....... 50 W × 4
Continuous power output ... 22 W × 4 (50 Hz to 15 kHz,
Load impedance ...................... 4 W (4 W to 8 W [2 W for 1 ch]
Preout output level (max) .... 2.2 V
Preout impedance .................. 1 kW
Equaliser (3-Band Parametric Equaliser):
Low
Frequency ................ 40 Hz/80 Hz/100 Hz/160 Hz
Q Factor .................... 0.35/0.59/0.95/1.15 (+6 dB
Gain ............................ ±12 dB
Mid
Frequency ................ 200 Hz/500 Hz/1 kHz/2 kHz
Q Factor .................... 0.35/0.59/0.95/1.15 (+6 dB
Gain ............................ ±12 dB
High
Frequency ................ 3.15 kHz/8 kHz/10 kHz/
Q Factor .................... 0.35/0.59/0.95/1.15 (+6 dB
Gain ............................ ±12 dB
Loudness contour:
Low ....................................... +3.5 dB (100 Hz), +3 dB
Mid ....................................... +10 dB (100 Hz), +6.5 dB
High ..................................... +11 dB (100 Hz), +11 dB
HPF:
Frequency .......................... 50 Hz/63 Hz/80 Hz/100 Hz/
Slope .................................... –12 dB/oct
Subwoofer:
Frequency .......................... 50 Hz/63 Hz/80 Hz/100 Hz/
Slope .................................... –18 dB/oct
Gain ...................................... –24/+6 dB
(effective display area:
95 mm × 53 mm)
5 %THD, 4 W LOAD, Both
Channels Driven)
allowable)
when boosted)
when boosted)
12.5 kHz
when boosted)
(10 kHz)
(10 kHz)
(10 kHz)
(volume: –30 dB)
125 Hz
125 Hz
