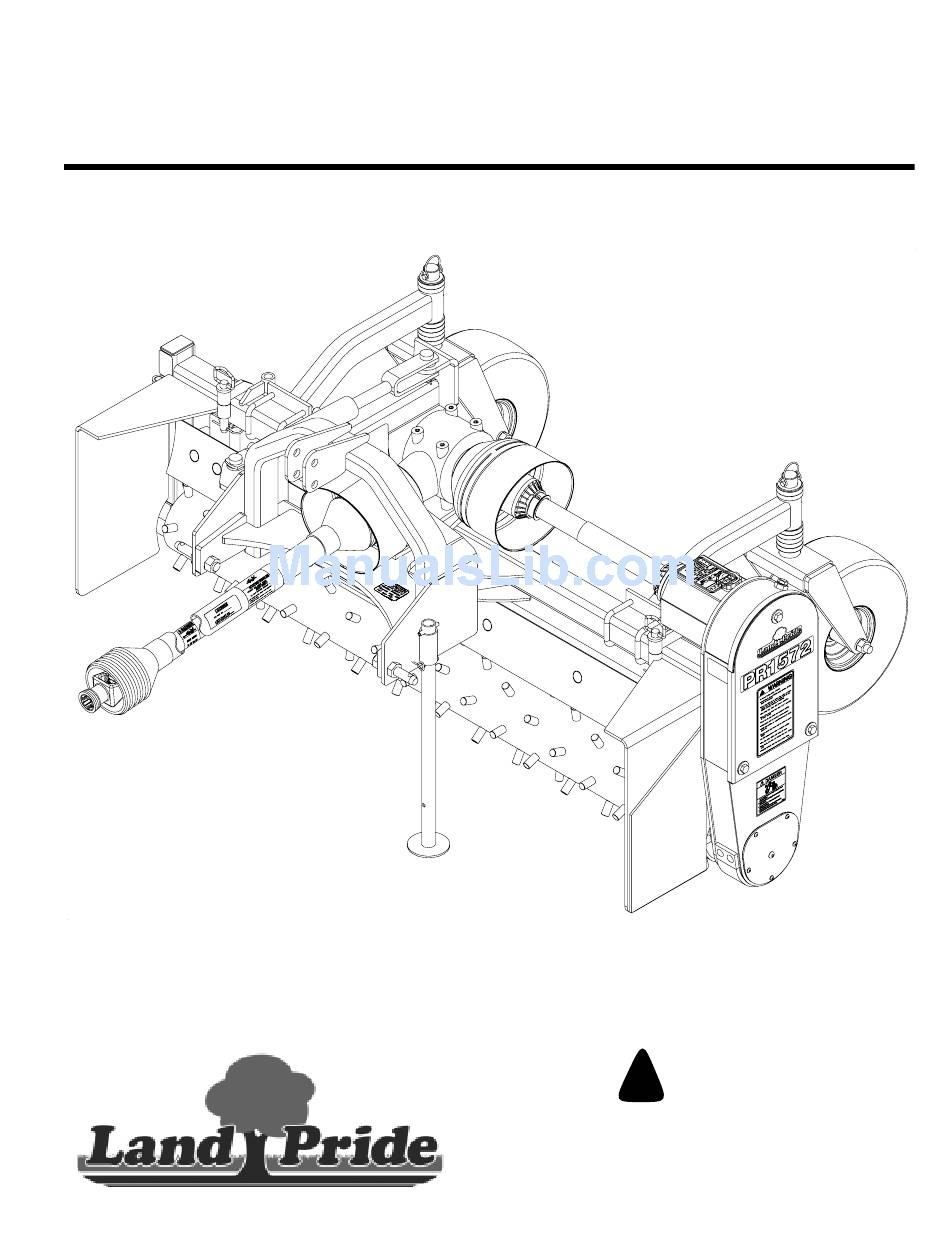

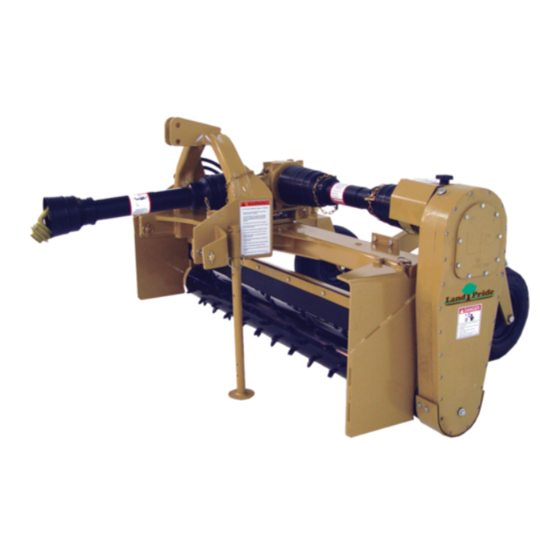

Powered Rakes
PR1560 & PR1572
18601
Table of Contents
314-164M
Operator's Manual
!
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2008 Printed
Cover photo may show optional equipment
not supplied with standard unit.
7/14/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR1560 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Land Pride PR1560

Summary of Contents for Land Pride PR1560

  • Page 1 Table of Contents Powered Rakes PR1560 & PR1572 18601 314-164M Operator’s Manual Read the Operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! ©...

  • Page 2: Table Of Contents

    Copyright 2008 All rights Reserved Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit.

  • Page 3: Important Safety Information

    This could result in injury instructions noted on them. remove the key. or equipment damage. Detach and store implements in a area where children normally do not play. Secure implement by using blocks and supports. 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...
  • Page 4 Never allow children to operate Remove buildup of grease, oil or ground, put tractor in park, turn off equipment. debris. engine, and remove key before Remove all tools and unused performing maintenance. parts from implement before operation. PR1560 & PR1572 Powered Rakes 314-164M 7/14/08...
  • Page 5 If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be treated within a few hours or gangrene may result. 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...
  • Page 6 Clean the area the label is to be placed. Replace all damaged or missing labels. To order new Spray soapy water on the surface where the label is to labels go to your nearest Land Pride dealer or visit our be placed. dealer locator at landpride.com.
  • Page 7 Table of Contents Land Pride Important Safety Information 818-255C 18598 Warning: General Safety 18598 838-111C Danger: Moving Parts 818-603C 18598 Warning: Thrown Object 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...
  • Page 8 Table of Contents Land Pride Important Safety Information ROTATING DRIVELINE KEEP AWAY! 18601 818-552C Danger: Rotating Driveline 818-230C Red Reflector 18598 818-229C Amber Reflector 18599 PR1560 & PR1572 Powered Rakes 314-164M 7/14/08...
  • Page 9 Table of Contents Land Pride Important Safety Information 818-130C 18601 Caution: 540 RPM 818-540C Danger: Guard Missing 18601 ROTATING DRIVELINE 818-552C KEEP AWAY! Danger: Rotating Driveline (Also on Driveline 18598 Beneath Guard) 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...

  • Page 10: Introduction

    Table of Contents Land Pride Introduction Introduction Land Pride welcomes you to the growing family of new Land Pride dealer. A dealer has trained personnel, repair product owners. parts and equipment needed to service the ?????. This Powered Rake has been designed with care and The parts on your Powered Rake have been specially built by skilled workers using quality materials.

  • Page 11: Section 1: Assembly And Set-Up

    Tractor Requirements WARNING The Powered Rake is designed with a category 1, 3-point hitch and will fit a Land Pride Cat. 1 Quick-Hitch. The Hydraulic fluid under pressure can penetrate skin. Wear maximum horsepower rating for the tractor is 45 HP protective gloves and safety glasses or goggles when working depending on lift capacity and field conditions.

  • Page 12: Section 2: Operating

    See Figure 3-1 page 11. depth setting, leveling, and roller angle adjustments, you After you have traveled 50 feet, stop the tractor, are almost ready to begin using your Land Pride disengage the PTO, set the park brake, turn off the Powered Rake.

  • Page 13: Section 3: Adjustments

    1. If the chain should become loose, either the spring 18600 on the idler arms or the chain needs to be replaced. See “Sprocket and Drive Chain Replacement” Material Control Deflector Adjustment page 12. Figure 3-3 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...

  • Page 14: Section 4: Maintenance And Lubrication

    Sprocket and Drive Chain Replacement Figure 5-2 2-Plate Slip Clutch NOTE: Before proceeding, secure the clutch firmly in a vise or other clamping device to prevent injury. 18013 Chain Case Skid Shoe Replacement Figure 5-1 PR1560 & PR1572 Powered Rakes 314-164M 7/14/08...
  • Page 15 Step 6 Install bottom backup ring, compression spring, lock collar, and top backup ring. Step 6 Inspect friction discs and hub. Step 7 Install snap ring. 10435 10449 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...

  • Page 16: Lubrication

    Hours Pivot 18012 Type of Lubrication: Multi-Purpose Grease 18600 Hours Gauge Wheel Spindle Type of Lubrication: Multi-Purpose Grease 18600 Hours Gauge Wheel Type of Lubrication: Multi-Purpose Grease 18600 PR1560 & PR1572 Powered Rakes 314-164M 7/14/08...

  • Page 17: Drive Chain

    Type of Lubrication: Shell Alvania EP 00 18013 Hours Non-Drive Bearing Type of Lubrication: Multi-Purpose Grease (Remove Inside Skid Shoe to grease) Skid Shoe 18012 Hours Gearbox Type of Lubrication: SAE 90 15843 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...

  • Page 18: Section 5: Specifications & Capacities

    Angle Cylinder 2” X 8” End Plates Standard, Removable with Storage Rack Gauge Wheels PR1560: 13” X 6.5”, PR1572: 16.5” X 6.5” Air Tires with Sealant and 3/4” Roller Bearings and Spacer Height Adjustment Skid Shoes Replaceable Weight 880 lbs.

  • Page 19: Section 6: Features & Benefits

    Drive chain enclosed in oil bath A small amount of oil keeps the chain and sprockets lubricated to keep abrasion to a minimum. 1 Year gearbox warranty Shows our confidence in the gearbox integrity. 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...

  • Page 20: Section 7: Troubleshooting

    Lower gauge wheels Too many rocks passing between Lower material control deflector material control deflector and the roller Roller balling up with soil Wait until soil dries Powered Rake bumping on ground Clean roller PR1560 & PR1572 Powered Rakes 314-164M 7/14/08...

  • Page 21: Section 8: Appendix

    1330 2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Tire Inflation Chart Tire Size Inflation PSI 16.5 x 6.5 2- Ply 7/14/08 PR1560 & PR1572 Powered Rakes 314-164M...

  • Page 22: Notes

    Table of Contents Land Pride Section 8: Appendix Notes PR1560 & PR1572 Powered Rakes 314-164M 7/14/08...

  • Page 23: Limited Warranty

    This Warranty does not apply to any part or product which in Land Pride’s judgment shall have been misused or damaged by accident or lack of normal...
