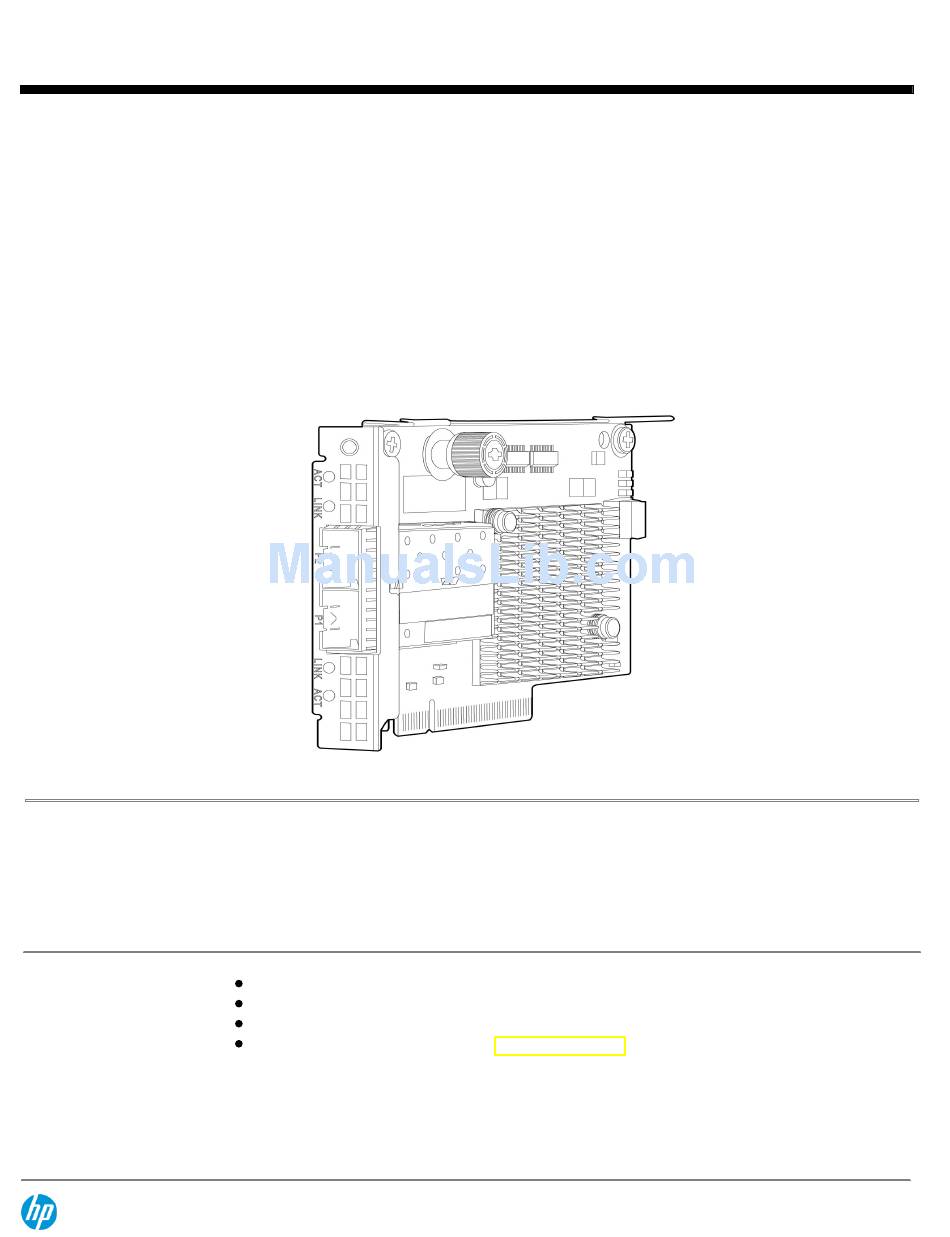

Overview
The HP FlexFabric 534M is a 2-port 10GbE Mezzanine adapter, featuring the next generation of 10Gb Ethernet offering in a single chip
solution on a mezzanine form factor that further reduces power requirements for 2 ports of 10Gb Ethernet. It is designed for use with
HP BladeSystem c-Class Gen8 blade server platform's type A and Type B mezzanine slots.
It provides full duplex high performance Ethernet connectivity with support for HP Virtual Connect Flex-10 blade interconnect
technology, allowing each 10GbE port to be divided into four physical NICs and optimize bandwidth management for virtualized
servers. The HP FlexFlexFabric 534M adapter, now has new storage I/O functionality making it a full-Converged Network Adapter
(CNA).
The HP 534M supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding),
Receive Side Scaling (RSS), jumbo frames and PXE boot. It also supports virtualization features such as SR-IOV (Windows, Linux,
VMware), VMware NetQueue and Microsoft VMQ.
Models
HP FlexFabric 10Gb 2-port 534M Adapter
NOTE: The HP 534M requires a minimum of 2 GB of server memory.
NOTE: The HP 534M supports linking at 1000Mbps or 10000Mbps when not connected to a Flex-10 device. The HP
534M will only support 1000Mbps when connected to a 1Gb Ethernet interconnect.
Kit Contents
HP FlexFabric 10Gb 2-port 534M Adapter
HP FlexFabric 10Gb 2P 534M Adptr
Quick install card
Product warranty statement
Drivers, user guide, and utilities via:
DA - 14619 Worldwide — Version 2 — October 11, 2013
HP FlexFabric 10Gb 2-port 534M Adapter
http://www.hp.com
700748-B21
Page 1
