Summary of Contents for Intertek Heat Pure 1500

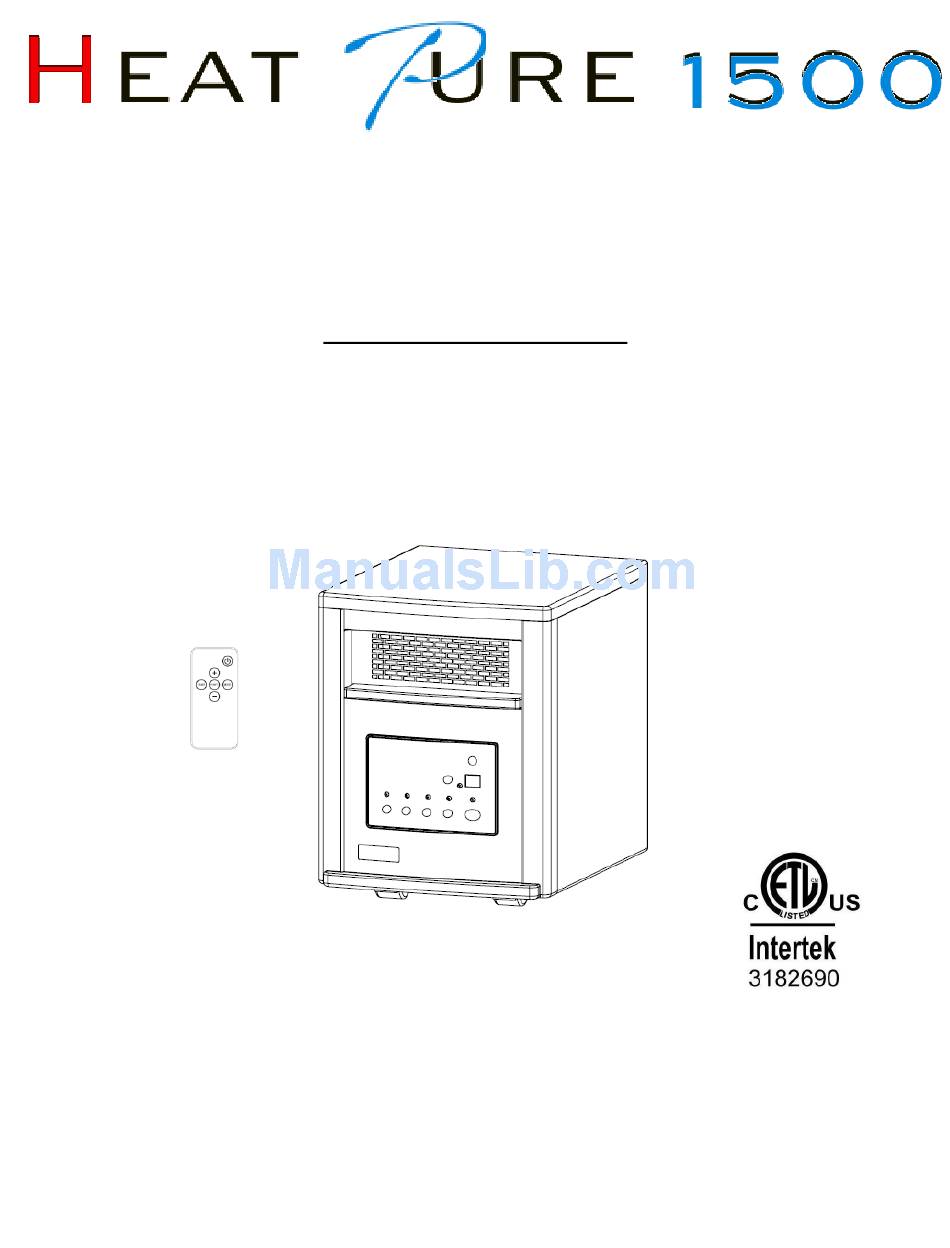

- Page 1 INFRARED ZONE HEATING SYSTEM OWNER’S MANUAL Model No. ATI-HP-XP www.advancedtechinfrared.com PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.
-
Page 2: Important Instructions
Thank you for choosing the Heat Pure 1500 Infrared Zone Heating System. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater. -
Page 3: Specifications
16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use. 17. Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by unauthorized dealers may cause hazards. -
Page 4: Product Diagram
WARNING: This heater has a voltage rating of 120 volts. The cord has a plug as shown in A. An adapter as shown in C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. - Page 5 Control Panel 1、Signal-Receiving Window: Receives the remote control signal. 2、Digital Display: Indicates the set room temperature or time value according to the timer. 3、Power Indication Light: Indicates when the unit connects to a power supply. 4、ON/OFF Switch Button: For power on or off. 5、Energy-Saving Mode: The light is on when the energy-saving mode is active.
- Page 6 Remote Control Power Button: Used for power-on or power-off Temp Up Button: Raises the temperature Mode Button: Used for mode selection Air Purification Button: Used to start or stop air purifying Temp Down Button: Lowers the temperature Timer Button: Used to set the timer and adjust timer value PREPARATION Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS 1、Start and select working mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Select a heat setting. Press the MODE button to toggle between the three heat settings. - Page 8 Press the air purification button again either on the control panel or remote controller to stop the air purification. 4、Setting the timer to Power-Off the heater Attention! ONLY when the power is on, can you set the timer power-off function. When starting the unit, press the timer button on the control panel.
-
Page 9: Maintenance
MAINTENANCE 1. Turn off the power switch in the rear of the unit. 2. Unplug the unit and let it cool completely. 3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. -
Page 10: Troubleshooting
STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair or service: 1.
Need help?
Do you have a question about the Heat Pure 1500 and is the answer not in the manual?
Questions and answers
My heater has the power light on. Will turn on but shuts itself off right away Did it 3 times this morning it is cold in this room so I **** sure it is not 68 which I set it at. Really like the heater would like to know how to fix it. Only used rarely. So when super cold in office.
The Intertek Heat Pure 1500 heater may turn on but shut off immediately if its internal components reach a temperature that could cause overheating and a potential fire. The heater has an automatic safety feature that shuts it off in such conditions to prevent hazards.
This answer is automatically generated

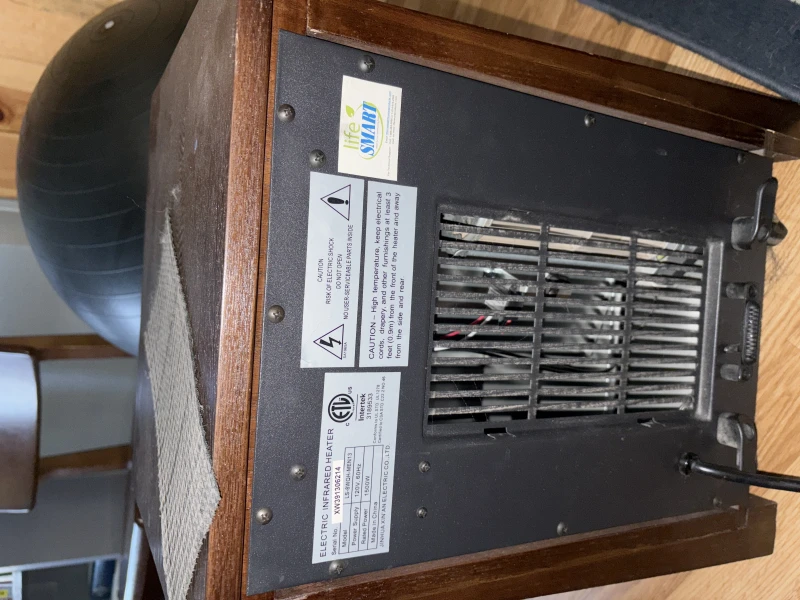

@Amy Bowe I had the same problem but figured out that my **** wasn’t turning on. I removed the back and cleaned everything out. The thin filter doesn’t really do a great job and I found a lot of buildup on the ****. I didn’t actually use any cleaner, just compressed air, lightly scraping and a vacuum seemed to do the trick. Mine works great now. PS make sure to unplug the heater before doing this!!!
Knob will not turn
Parts for Model LS21-2W-PW1QT Intertek Electric Infrared Heater
The remote will not work even with new batteries
The Intertek Heat Pure 1500 remote may not be working with new batteries due to the electro lock feature being activated. If the control panel and remote control are unresponsive, the electro lock may be engaged. To release the lock, press the Temp Up and Temp Down buttons simultaneously for 3 seconds until a buzzer rings and the lock indication disappears. If the issue persists, ensure the batteries are correctly installed and functional.
This answer is automatically generated
