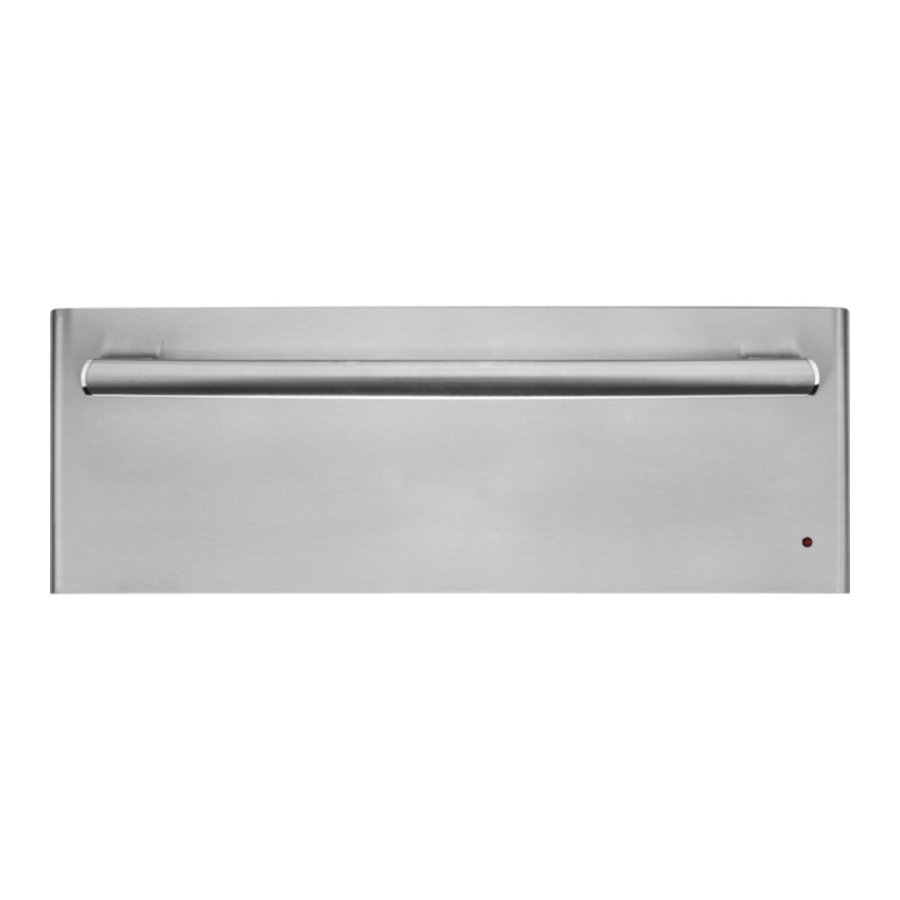

GE PJ7000SF, PJ7000SFSS, Profile Series Manual

Optional Accessories

ZXD27B –1/4" panel kit

Note: Custom panel will not be flush with adjacent outlet in adjacent cabinet 16" from cabinetry drawers and doors.

Warming Drawer Dimensions

*Dimensions and Installation Information in inches

Undercounter Installation

A solid barrier must be installed at least 1" from the lowest point of the bottom of cooktop burner box to the top of the cutout. Use any solid material such as 1/4"-thick plywood. Allow at least 1/4" air gap between the barrier and the top of the warming drawer. See label on top of the warming drawer for approved cooktop models.

Under Oven Installation

Additional clearance between cutouts may be required. Check to be sure that oven supports above the warming drawer location do not obstruct the required interior 23-1/2" depth and 9-1/4" height.

Door handle protrudes 2-3/4" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.

Installation Information

Before installing, consult installation instructions packed with product for current dimensional data.

Features and Benefits

• Variable temperature control - Provides a variety of temperatures
• Variable humidity control - Customized warming from crisp to moist
• Frameless drawer front - Offers a smooth appearance
• "On" indicator light - Illuminates when warming drawer is operating
• Half rack - Maximizes drawer space
• Model PJ7000SFSS – Stainless steel

For answers to your Monogram^® or GE^® appliance questions, visit our website at geappliances.com or call GE Answer Center^® service, 800.626.2000.
